EVINRUDE-JOHNSON 362172 Screw, Upper Mount - M10 X 22

Write a Review
$3.90
SKU:
362172
Schematic Object Key:
68

EVINRUDE-JOHNSON 362172 Screw, Upper Mount - M10 X 22

$3.90

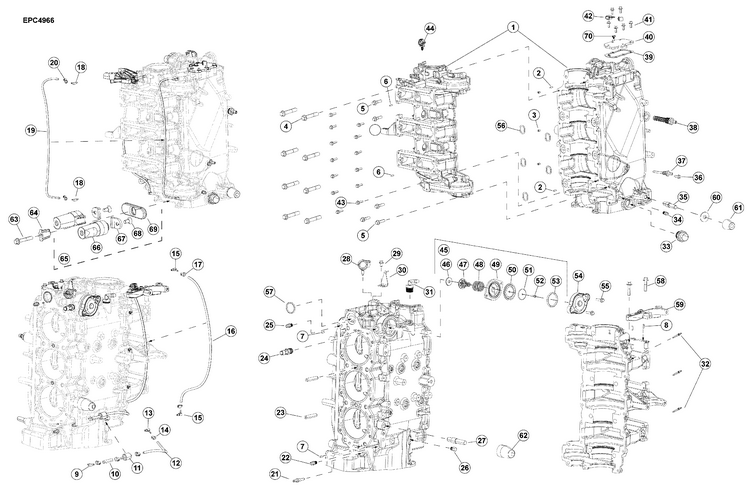

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 362172 Screw, Upper Mount - M10 X 22

Schematic Object Key : 68

Product Description: Screw, Upper Mount - M10 X 22

Category: EVINRUDE / AA Models / 115 - (G2, Inline 3-Cyl, 1.865 L) / K115HGXCAAA - (G2, Inline 3-Cyl., 1.865 L) / 05-3_CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
5010816 Cylinder crankcase assembly, 115 h.o. 135 hp includes items 1 thru 44
5010817 Cylinder crankcase assembly, 50 hp includes items 1 thru 44
1 *CYL, CRANKCASE & SLEEVE AY | Not serviced separately
2 0353931 Pin, alignment cylinder to crankcase
3 0304178 Pin, dowel
4 0360958 Screw, crankcase to block m12 x 70
5 0359272 Screw, crankcase cover m8 x 35
6 0353931 Pin, alignment crankcase to plenum
7 0353931 Pin, alignment cylinder to cylinder head
8 0353931 Pin, alignment crankcase to starter bracket
5010875 Hose assembly 3 cylinder to crankcase
9 0357442 Fitting, elbow
10 0772571 Hose 0.360 in. 9.14 mm diameter, bulk roll 25 ft. 7.62 m
11 5009201 Check valve assembly
12 0778708 Hose 0.093 in. 2.36 mm diameter, bulk roll 25 ft. 7.62 m
13 0357443 Fitting, elbow
14 0317893 Tie strap
5010889 Hose assembly main bearing to crankcase
15 0357443 Fitting, elbow
16 0778708 Hose 0.093 in. 2.36 mm diameter, bulk roll 25 ft. 7.62 m
17 0317893 Tie strap
5010826 Hose assembly balance gear to crankcase
18 0357443 Fitting, elbow
19 0778708 Hose 0.093 in. 2.36 mm diameter, bulk roll 25 ft. 7.62 m
20 0317893 Tie strap
21 5007618 Fitting, exhaust back pressure
22 0330272 Fitting
23 0346237 Dam, c c water
24 0360723 Fitting, 3 8 npt
25 0330272 Fitting
26 0357438 Plug, accessory water pressure
27 0360199 Pin, shoulder
28 0360651 Clip, mounting 19 mm
29 0353897 Screw
30 0360706 Timing pointer
31 0357439 Fitting, 90
32 0344821 Fitting, crankcase oil inlet
33 0361143 Fitting, exhaust relief
34 0330272 Fitting
35 0360199 Pin, shoulder
36 0353589 Screw, trim tab
37 5010615 Fitting, spray
38 0356673 Fitting, filter
39 0360635 Gasket
40 0361211 Cover, water plate
41 0353589 Screw, trim tab
42 0348737 Clamp
43 0353590 Screw
44 0360651 Clip, mounting 19 mm
45 5008108 Pressure relief valve assembly
46 0357798 Seal
47 0357800 Plunger
48 0357468 Spring
49 0347240 Plate, housing
50 0347244 Diaphragm
51 0347243 Support, diaphragm
52 0328649 Screw, bowl to body
53 0354759 O ring
54 0347241 Cover, housing
55 0353590 Screw
56 0302035 "o" ring, spacer to imp. hsg.
57 0360173 O ring water passage thermostat cylinder head to block
58 0362173 Screw, m8 x 35
59 0362668 Mounting bracket, starter
60 0349556 Washer
61 0349557 Mount
62 0361110 Mount, starboard
63 0361751 Screw, upper mount retainer
64 0361761 Retainer, upper mount
65 5011158 Mount kit, upper engine kit contains both upper engine mounts
66 *MOUNT, Upper
67 *WASHER, Upper mount
68 0362172 Screw, upper mount m10 x 22
69 0362332 Bumper
70 0358999 Clip,connector mounting
