EVINRUDE-JOHNSON 377379 19 Feet Long Life Cables

Write a Review
$24.00
SKU:
377379
Schematic Object Key:
61

EVINRUDE-JOHNSON 377379 19 Feet Long Life Cables

$24.00

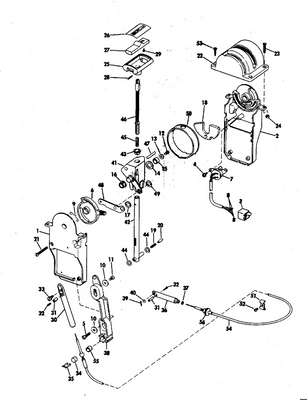

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 377379 19 Feet Long Life Cables

Schematic Object Key : 61

Product Description: 19 Feet Long Life Cables

Category: STERN DRIVE / 1968 / 80 / NU-10S 1968 / PUSH BUTTOM REMOTE CONTROL GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0278517 Shift cable assembly
2 0310486 .connector, housing
3 TERMINAL
4 0309438 Terminal
0278573 0278573 Push button contol box assembly
5 0205038 Screw, cover plate
6 0309004 Cover palte,button omc
6 0205047 Cover palte,button evinrude
7 0308546 Link,adjustment
8 0205037 Link adjustment
9 0205044 Yoke, push button
10 0308544 Screw, bracket to box
11 0205042 Screw, switch to lever
12 0205161 Bracket, selector switch
13 0279091 Selector switch assembly
14 0309556 Button, forward
15 0309559 Button, neutral
16 0309560 Button, reverse
17 0309590 Spring, pushbotton
18 0205038 Screw, cover plate
19 0378760 Side plate transfer assembly
20 0308821 Transfer, port
20 0308820 Screw, impeller housing
19 0278356 Side plate transfer evinrude
20 0205052 Transfer evinrude
21 0308545 Screw
22 0205041 Retainer, casing guide
23 0303317 Screw
24 0385958 Clamp sc r.,casing guide This part replaces 0303219.
25 0205036 Casing guide, control
26 0205039 Pivot screw, lever
27 0308532 Bague, levier de verrouillage
28 0378246 Lever,throttle
29 0308517 Roller, lever to box
30 0205046 Spring, roller
31 0308688 Washer
32 0308038 Screw, idle stop
33 0308039 Knob, throttle lever
34 0378718 Idle stop knob shaft
35 0308051 Retainer
36 0308045 Spring, idle stop
37 0308523 Grommet, shift cable
38 0308044 Screw, idle adjustment
39 0309020 Spring washer
40 0308052 Washer
41 0308043 Idle adjustment
42 0308062 Bushing, idle stop
43 0309060 Screw, throttle friction
44 0205043 Spring, detent
45 0205075 Detent, throttle
46 0205040 Screw, housing to boat
47 0205033 Housing, control box
48 0205034 Cover plate, rear
49 0303887 Washeer, pin to swivel bracket
50 0305650 Cotter pin
51 0309724 Anchor block
52 0385956 Guide o ring assy. This part replaces 0377850.
53 0307063 O ring
54 0310686 Screw
55 0310687 Detent spring, anchor block
56 0310688 Sapcer, anchor block
57 0310685 Abchor blcok, trunnion
58 0310115 Screw, mounting
59 0120001 Clamp, hose
60 0308055 ,trunnion cap
61 0377372 12 feet long life cables
61 0377373 13 feet long life cables
61 0377374 14 feet long life cables
61 0377375 15 feet long life cables
61 0377376 16 feet long life cables
61 0377377 17 feet long life cables
61 0377378 18 feet long life cables
61 0377379 19 feet long life cables
61 0377380 20 feet long life cables
62 CORE WIRE,Throttle cable
