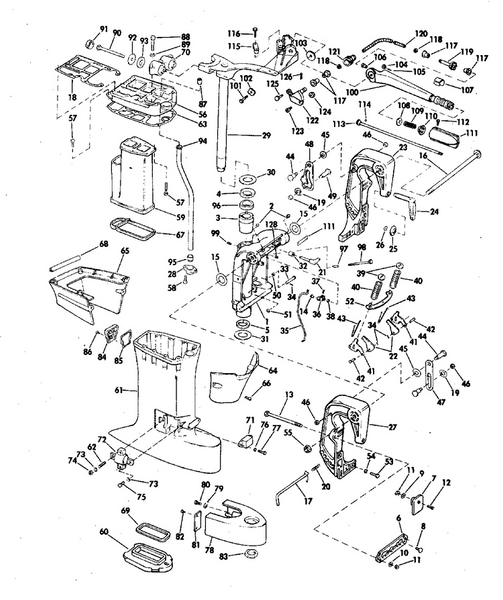

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 113
Product Description: Gear & Shaft, Long
Category: JOHNSON / 1972 / 50 / 50ES72C 1972 / EXHAUST HOUSING MANUAL START
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0317528 | Swivel bracket, std | |
1 | 0317529 | Swivel bracket, long | |
2 | 0313607 | Lube fitting | |
3 | 0317524 | Bushing, upper | |
4 | 0315795 | Seal, upper | |
5 | 0315408 | Seal, lower | |
6 | 0357732 | Plate,transom | This part replaces 0315772. |
7 | 0357733 | Pad | This part replaces 0315774. |
8 | 0303776 | Screw | |
9 | 0315776 | Rondelle | |
10 | 0309192 | Rondelle | This part replaces 0120196. |
11 | 0363253 | Nut,lock | This part replaces 0310702. |
12 | 0363013 | Screw | This part replaces 0315775. |
13 | 0363013 | Screw | This part replaces 0318512. |
14 | 0313329 | Lockwasher, carburetor link | |
15 | 0315773 | Thrust washer, stern brkt | |
16 | 0315634 | Bolt, tilting | |
17 | 0436212 | Thrust rod assembly | This part replaces 0383974. |
18 | 0351018 | Gasket, adapter to powerhead | This part replaces 0315852. |
19 | 0315085 | O ring, driveshaft to crankcase | |
20 | 0307068 | Spring thrust rod | |
21 | 0384035 | Shaft lever assy | |
22 | 0333871 | Lever, locking | This part replaces 0315963. |
23 | 0383959 | Stern bracket, port | |
24 | 0388053 | Clamp scr and hand assy | This part replaces 0384845. |
25 | 0315571 | . swivel plate | |
26 | 0302420 | . retainer | |
27 | 0383958 | Stern bracket, stbd. inc. item 24 | |
28 | 0315860 | Cover water tube | |
29 | 0385194 | Arm shaft assy, std | |
29 | 0385195 | Arm shaft assy, long | |
30 | 0315510 | Thrust washer, upper | |
31 | 0316072 | Thrust washer, lower | |
32 | 0315636 | Bushing | |
33 | 0315961 | Pin, link to bracett | |
34 | 0302858 | Cotter pin, shoulder bolt | |
35 | 0315637 | Rod, reverse lock | |
36 | 0378984 | Arm screw | |
37 | 0308893 | Screw | |
38 | 0315101 | Bushing, link to lever | |
39 | 0314007 | . cup, reverse lock spring | |
40 | 0313817 | . spring, reverse lock | |
41 | 0315964 | . link, reverse lock | |
42 | 0315962 | . pin, link to lever | |
43 | 0315965 | . retainer, spring | |
44 | 0313848 | Screw, stop link | |
45 | 0314031 | Spring washer, stop link | |
46 | 0313838 | Nut, bracket to steering arm | |
47 | 0315960 | Stop link, starboard | |
48 | 0315959 | Stop link, port | |
49 | 0313849 | Screw, stop lin to stern brkt. | |
50 | 0315967 | Spirng, link | |
51 | 0552499 | Washer, link pin | |
52 | 0321234 | . plate, reverse lock | This part replaces 0315966. |
53 | 0552940 | Screw, mounting | This part replaces 0313699. |
54 | 0306470 | Lock washer | |
55 | 0315511 | Nut, bracket to mount support | |
56 | 0315450 | Adapter, exhaust housing | |
57 | 0309705 | Screw | |
58 | 0328724 | Screw | This part replaces 0308738. |
59 | 0315954 | Exh housing, inner upper | |
60 | 0315957 | Exh housing, inner lower, std | |
60 | 0315958 | Exh housing, inner lower, long | |
61 | 0317519 | Exh housing, outer, std | |
61 | 0317520 | Exh housing, outer, long | |
62 | 0301185 | Stud | |
63 | 0351019 | Gasket, adapter to housing | This part replaces 0315861. |
64 | 0350796 | Cover, exhaust housing, front | This part replaces 0315445. |
65 | 0340785 | Cover, exh. hsg., rear | This part replaces 0315446. |
66 | 0328694 | Screw, bracket | This part replaces 0310861. |
67 | 0315955 | Seal, inner to outer housing | |
68 | 0316065 | Seal, exhaust housing, rear | |
69 | 0315956 | Seal, lower to outer housing | |
70 | 0436470 | Mount, upper | This part replaces 0383960. |
71 | 0383961 | Mount, thrust | |
72 | 0388411 | Rubber mount, lower | This part replaces 0384071. |
73 | 0306470 | Lock washer | |
74 | 0306422 | Nut | |
75 | 0552940 | Screw, mounting | This part replaces 0313699. |
76 | 0302290 | Washer | |
77 | 0329894 | Screw | This part replaces 0302510. |
78 | 0316054 | Mount bracket | |
79 | 0306470 | Lock washer | |
80 | 0316109 | Screw, starter mounting, long | |
81 | 0316055 | Cover, mount bracket | |
82 | 0316233 | Screw, cover to bracket | |
83 | 0315509 | Nut, bracket to shaft | |
84 | 0315864 | Cover, exhaust relief | |
85 | 0329826 | Cover, relief cover | This part replaces 0315865. |
86 | 0305143 | Screw, by pass cover | |
87 | 0317559 | Plug, adapter | |
88 | 0306423 | Bolt | |
89 | 0306470 | Lock washer | |
90 | 0306870 | Screw, upper mount | |
91 | 0313581 | Bumber, mount screw | |
92 | 0321232 | Retainer washer | This part replaces 0313546. |
93 | 0313580 | Washer | |
94 | 0322309 | Washer tube, std. | This part replaces 0315862. |
94 | 0340216 | Water tube | This part replaces 0315863. |
95 | 0315859 | Grommet, tube to adapter | |
96 | 0317415 | Thrust ring, friction | |
97 | 0317418 | Pin, steer. friction | |
98 | 0317525 | Screw, steer. friction | |
99 | 0317416 | Screw, thrust ring | |
101 | 0302721 | Screw | |
102 | 0302631 | Spring washer | |
103 | 0302703 | Thrust washer, handle | |
104 | 0302803 | Nut | |
105 | 0302804 | Cotter in | |
107 | 0305712 | Plate | |
108 | 0303252 | Wahser, grip spring | |
109 | 0301656 | Spring | |
110 | 0303282 | Block | |
112 | 0310303 | 1 | |
113 | 0377944 | Gear shaft, long | |
114 | 0302709 | Groove pin | |
115 | 0317407 | Clamp, casing to bracker | |
116 | 0303459 | Ecrew,exhaust cover,1 1 2"long | |
117 | 0315081 | Bushing, shoulder screw | |
118 | 0554516 | Ret. ring, shaft to lever | |
119 | 0385218 | Gear shaft, short | |
120 | 0317408 | Casing, throttle cable | |
121 | 0317409 | Grommet, casing | |
122 | 0385190 | Lever cable assy | |
123 | 0317347 | Follower, cam interlock | |
125 | 0310525 | Pin, clevis | |
126 | 0305650 | Cotter pin | |
128 | 0317419 | Screw |
