EVINRUDE-JOHNSON 379327 Gearcase Head Assy

Write a Review
$39.00
SKU:
379327
Schematic Object Key:
54

EVINRUDE-JOHNSON 379327 Gearcase Head Assy

$39.00

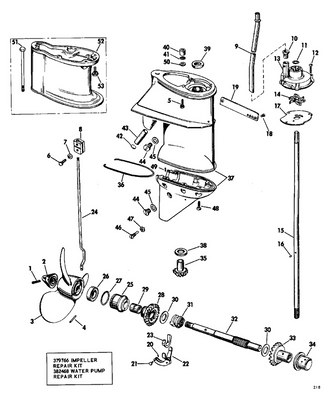

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 379327 Gearcase Head Assy

Schematic Object Key : 54

Product Description: Gearcase Head Assy

Category: JOHNSON / 1968 / 85 / V4AL-20A 1968 / GEARCASE GROUP ELECTRIC SHIFT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0305756 Screw, clamp to motor
2 0305762 Seal ring
3 0305754 Cover, impeller housing
4 0308073 Seal, impeller housing
5 0305755 Gasket, cover, imp.hsg.
6 0305514 Screw, rectifier mounting
7 0381436 Impeller housing and grommet assembly
8 0381437 .grommet, o ring and tag assy.
9 0377992 Impeller
10 0305434 Plate, impeller housing
11 0326649 O ring This part replaces 0553127.
12 0379882 Driveshaft, standard
13 0308928 .key, impeller 5 inch longer parts
14 0307530 Tube, water, inlet
15 0312328 Tube, water, outlet, standard
16 0306503 Screw, adjustment rod
17 0306470 Lock washer
18 0309204 Gasket
19 0309807 Sleeve
0378987 0378987 Gearcase assy., less driveshaft and pump
20 0307339 Screw, bearing cap
21 0380245 Bearing cap assy.
22 0307115 Retainer, oil
23 0377135 Bearing, gearcase
24 0302588 "o" ring, bearng hsg.
25 0378988 Upper lower gearcase assembly
26 0307160 Locknut
27 0330266 Washer, trail lock lever This part replaces 0552993.
28 0378989 Upper gearcase assy.
29 0307112 .screw
30 0378971 Cover screen assembly
31 0307551 Screw
0311598 0311598 Seal
32 0307524 Screw, exhaust outlet
33 0308307 Outlet, exhaust
34 0308320 Screen, intake
35 0309340 Gasket
36 0386765 Bearing assy, rear This part replaces 0377132.
37 0305468 Bushing, water tube
38 0305146 "o" ring, water tube
39 0305142 Washer, bushing
40 0378517 Gearcase stud assembly lower
41 0308217 . .stud, rear
42 0313209 Stud, front
43 0307086 . .gasket
44 0308277 Retainer
45 0307551 Screw
0311598 0311598 Seal
46 0383595 Cabel assy. This part replaces 0380956.
47 0379645 . . connector kit
48 0307103 Seal
49 0308727 Screw
50 0308730 Washer
51 0308726 Retainer
52 0308211 Screw
53 0307853 O ring
54 0379327 Gearcase head assy
55 0313283 .retainer, oil
56 0377868 Bearing, clutch shaft to reverse gear
57 0307082 O ring
58 0307080 Retaining ring
59 0308216 Thrust washer
60 0378665 Coil retainer assy. rear
61 0308808 Cosse, plate
62 0308215 Screw, set
63 0308213 Retaining ring
64 0378625 Clutch hub assy rear
65 0311030 Spring
66 0309042 Spacer
67 0308274 Gear
68 0378970 Bearing, reverse gear
69 0303806 Tubing
70 0378518 Propeller shaft
71 0308561 Gear, pinion
72 0307836 Thrust washer
73 0378262 Bearing, thrust, pinion
74 0308275 Screw
75 0308273 Guard
76 0307019 Screw, clamp
77 0308279 Washer
78 0378519 Clutch hub assembly front
79 0308276 Bushing
80 0378549 Coil assembly, forward
81 0308808 Cosse, plate
82 0308317 Tubing
83 0377874 Bearing, propeller shaft
84 0378264 Bearing, pinion
85 0593437 Propeller, 9 1 2 x 10
85 0377978 Propeller, 10 x 11
85 0378039 Propeller, 10 x 12
85 0309947 Propeller nut This part replaces 0378040.
85 0379260 Propeller, 10 x 9 1 4
86 0309947 Propeller nut
87 0309954 Drive pin
88 0309955 Cot pin,prop nut
89 0304576 Thrust washer
14 0311738 Tube, water inlet, long 5 inch longer parts
15 0305535 Tube, water outlet, long 5 inch longer parts
0379881 0379881 Extension kit assembly 5 inch longer parts
12 0379883 Driveshaft, long 5 inch longer parts
17 0306470 Lock washer
19 0309808 Sleeve, long 5 inch longer parts
90 0305760 Grommet
91 0307240 Tube, extension 5 inch longer parts
92 0307179 Extension, gearcase 5 inch longer parts
93 0307239 "o" ring, extension tube 5 inch longer parts
94 0306563 Extension, water tube 5 inch longer parts
95 0326649 O ring This part replaces 0553127.
96 0306503 Screw, adjustment rod
97 0306470 Lock washer
