EVINRUDE-JOHNSON 381027 Drive Shaft Asst., Long 5 Inch Longer Parts

Write a Review
$79.00
SKU:
381027
Schematic Object Key:
7

EVINRUDE-JOHNSON 381027 Drive Shaft Asst., Long 5 Inch Longer Parts

$79.00

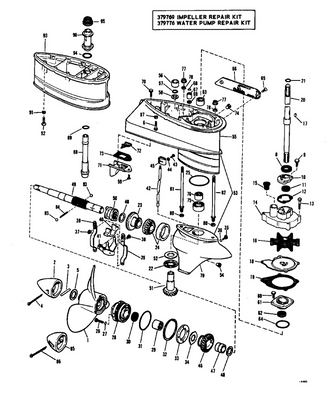

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 381027 Drive Shaft Asst., Long 5 Inch Longer Parts

Schematic Object Key : 7

Product Description: Drive Shaft Asst., Long 5 Inch Longer Parts

Category: EVINRUDE / 1968 / 6 / 6802C 1968 / GEARCASE GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0303355 Gasket
2 0303356 Plate
3 0303347 "o" ring, lower bearing
4 0303391 Seal
5 0303357 Spring
6 0303327 Washer
0382795 0382795 Gearcase assembly
7 0381026 Drive shaft assy., std
8 0303261 Roll pin, return spring
9 0303395 Screw
10 0312107 Retainer
11 0305720 Key, shaft
12 0303339 Gasket, bearcase to bearing housing
13 0382796 Housing retainer assy
14 0314167 . oil retainer
14 0327031 Seal, driveshaft This part replaces 0300599.
15 0305303 Plate, impeller house This part replaces 0303376.
16 0277181 Impeller pin assy
17 0306196 . pin, impeller
18 0303442 Housing, impeller
19 0390040 Gearcae, bush. pin assembly This part replaces 0382574.
20 0303332 . bushing, shift rod
21 0301877 O ring shift rod
22 0307551 Screw
22A 0311598 Seal
23 0302757 . screen, water intake
24 0300314 . plug, intake screen
25 0300611 . dowel, bearing
26 SEAL,Gearcase
27 0304071 . screw, gearcase
28 0308376 Pivot pin, shift lever
29 0307853 O ring
30 0303679 Screw
31 0304579 Cover, by pass, upper
32 0303700 Spring, detent backup
33 0303466 Dentent, spring
34 0306478 Screw
35 0309582 Shift rod, lower
36 0312108 Gear pinion
37 0303380 Bearing, front
38 0303361 Thrust washer
39 0377152 Gear bushing, front
40 0303340 Lever, shifter
41 0302504 Pin, connector, shift rod
42 0306376 Cotter pin
43 0303381 Craddle,shifter
44 0377458 Shifter, clutch dog
45 0305261 Shaft, propeller
46 0305216 Gear, reverse
47 0303998 Bushing, reverse gear
48 0382291 Gear case head bearing
49 0313282 . oil retainer
50 0303360 "0" ring,gearcase head
51 0380958 Propeller and bushing, 8" dia. x 7 1 4 pitch, 2 blade
52 0305296 Cotter pin
53 0305394 Nut
54 0307949 Drive pin, propeller
55 0307151 Screw
56 0304317 Tube, water standard
57 0302497 Grommet, lower water tube
58 0303794 Connector
59 0301551 Washer, lock
60 0304024 Screw
0381294 0381294 Extensino kit assembly 5 inch longer parts
7 0381027 Drive shaft asst., long 5 inch longer parts
8 0303261 Roll pin, return spring
56 0304318 Tube, water, long
58 0304081 Connector 5 " extension kit
59 0301551 Washer, lock
60 0304024 Screw
61 0307151 Screw
62 0324828 Extension, gearcase This part replaces 0303672.
0311382 0311382 Shaft rod, upper, long
