EVINRUDE-JOHNSON 381300 Bracket,Alternator

Write a Review
$29.00
SKU:
381300
Schematic Object Key:
52

EVINRUDE-JOHNSON 381300 Bracket,Alternator

$29.00

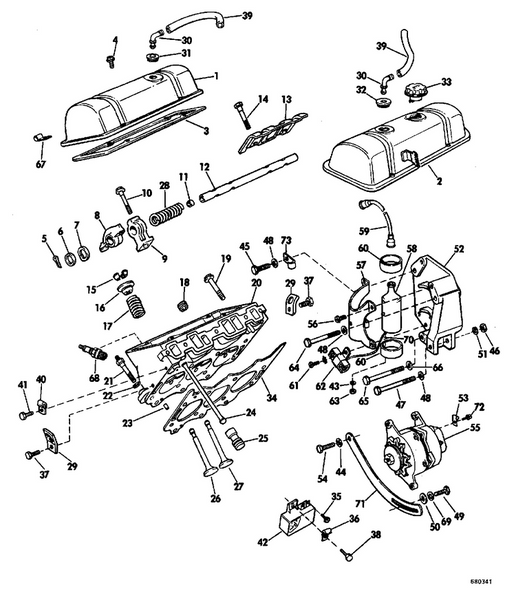

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 381300 Bracket,Alternator

Schematic Object Key : 52

Product Description: Bracket,Alternator

Category: STERN DRIVE / 1968 / 155 / HU-16C 1968 / HEAD AND ROCKER ARM GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 1379902 Cover, valve rocker arm, right
2 1379903 Cover, valve rocker arm, left
3 1363779 Gasket, valve rocker arm cover
4 1364099 Screw, cover to head
5 COTTER PIN,3/32x1-1/8"
6 1237679 Wahser,valve rocker arm shaft
7 1249383 Spring, end
8 1194142 Arm, valve rocker
1194143 1194143 Arm, valve rocker
9 1192124 Bracket, rocker arm shaft
10 1195666 Screw, arm shaft to head
11 1237691 Plug, rocker arm shaft
12 1388972 Shaft,valve rocker arm
13 1353596 Baffle
14 1372462 Screw,baffle and bracket to cyl.head
15 1192817 Key, valve spring cap
16 1192816 Cap, valve spring
17 1369982 Spring, valve
18 PLUG,Pipe
19 9419653 Bolt, cylinder head
20 1396787 Head,cylinder
21 9419652 Bolt, cyl head, outer row ends of inner row
22 WASHER,Plain
23 1193699 Pin,cylinder head to cylinder crankcase d
24 1185648 Push rod, valve
25 5232245 Lifter, hydraulic valve
26 1370108 Valve, exhaust, standard
1371341 1371341 Valve,exhaust,.004" o.s.
1378311 1378311 Valve,exhaust,.010" o.s.
27 1370109 Valve, intake, standard
1371342 1371342 Valve,intake,.004" o.s.
1378309 1378309 Valve,intake,.010" o.s.
28 1378985 Spring, shaft
29 0310901 Bracket, lift
30 0311545 Elbow
31 0311543 Grommet
32 0311544 Grommet, port
33 0379958 Cap, oil filler
34 0311207 Gasket,head
35 0303791 Screw
36 0330151 Cable clamp, filter This part replaces 0309322.
37 0306414 Screw
38 0307920 Screw
39 3852435 Hose crankcase vent, 9" 229 mm This part replaces 0312152.
40 0310928 Clamp, steering bracket
41 0311415 Screw, cable clamp
42 0379779 Voltage regulator
43 0550757 L'washer,coil term
44 0103867 Washer
45 0302600 Screw
46 0303889 .nut
47 0311391 Scr,altnr to brkt
48 0306405 Washer, c c stud nut
49 0302479 Screw, starter mounting This part replaces 0306416.
50 0306283 Washer, starter spindle
51 0309336 L'washer, alternator to bracket
52 0381300 Bracket,alternator
53 0310503 Clamp
54 0310898 Screw, belt guard mount
55 0381519 Alternator assembly
56 0305230 Screw
57 0310536 Clamp,coil
58 0379569 Coil assembly
59 0580545 Lead assembly, distributor to coil
60 0307768 Sleeve
61 0551725 Screw
62 0580387 Ballast resistor
63 0306556 Nut, leaf screw
64 0307776 Screw, lower main bearing
65 0201809 Scew,starter to cylinder
66 0311096 Washer
67 0310889 Clamp, heat exchanger tube
68 0380565 Spark plug, a.c.m43s
0380863 0380863 Spark plug, champion j 10y
69 0306325 . . lockwasher, solenoid screw
70 0580551 Lead,coil to resistor
71 0310878 Brace, alternator to pump cover
72 0510490 Screw
73 0310928 Clamp, steering bracket
