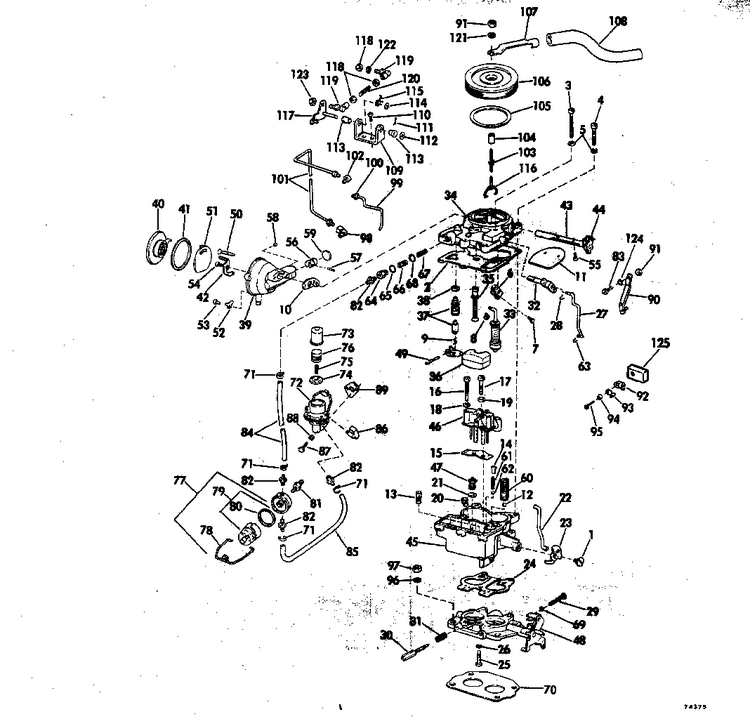

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 44
Product Description: Choke Lever & Collar Assembly
Category: STERN DRIVE / 1977 / 190 / 990231E 1977 / CARBURETOR & FUEL PUMP GROUP 120 & 140 HP STERN DRIVE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0980530 | 0980530 | Carburetor assembly | |
0980528 | 0980528 | Carb plug assy | |
1 | 0311651 | Screw, idle stop | |
2 | GASKET, Air horn | ||
3 | 0312416 | Screw, air horn | |
4 | 0312417 | Screw, air honr, short | |
5 | 0312418 | ,lockwasher, air horn screw | |
6 | 0312419 | Lever, pump inside | |
7 | 0311661 | Screw, pump lever | |
8 | CLIP, Pump plunger | ||
9 | PULL CLIP, Float valve | ||
10 | GASKET CHOKE HOUSING | ||
11 | 0908031 | Choke valve | |
11 | 0312425 | Choke valve | |
12 | BALL, Pump inlet check | ||
13 | SCREEN, Pump inlet | ||
14 | GUIDE, Pump discharge | ||
15 | GASKET, Venturi cluster | ||
16 | 0312430 | Screw, venturi cluster outer | |
17 | 0312431 | Screw, venturi cluster, center | |
18 | 0312432 | Lkwash, outer cluster screw | |
19 | GASKET, Center cluster screw | ||
20 | 0908030 | Main metering jet | |
20 | 0313119 | Main metering jet | |
21 | GASKET, Power valve | ||
22 | 0313057 | Chocke rod | |
22 | 0312436 | Choke rod | |
23 | 0312437 | Stop, idel speed screw | |
24 | GASKET, Throttle body | ||
25 | 0312439 | Screw, throttle body | |
26 | 0312440 | Lockwasher, throttle body | |
27 | 0312441 | Pump rod | |
27 | 0384469 | Pump rod clip assy | |
28 | . HITCH PIN | ||
28 | CLIP, Pump rod | ||
29 | 0908029 | Screw, idle stop | |
29 | 0312443 | Screw, idle stop | |
30 | NEEDLE, Idle adjusting | ||
31 | 0312445 | Spring, idle needle | |
32 | 0980011 | Pump shaft lever assembly | |
32 | 0381385 | Pump shaft lever assembly | |
33 | PUMP ASSEMBLY | ||
34 | 0980009 | Air horn assembly | |
34 | 0381387 | Air horn assembly | |
35 | 0382013 | Power piston assembly | |
35 | 0382128 | Power piston assembly | |
36 | 0980008 | Float assembly | |
36 | 0381389 | Float assembly | |
37 | NEEDLE & SEAT ASSY | ||
38 | GASKET, Needle seat | ||
39 | 0980006 | Choke housing assembly | |
39 | 0381391 | Choke housing assembly | |
40 | 0980005 | Cover coil gasket | |
40 | 0980005 | Cover coil gasket | This part replaces 0381392. |
41 | GASKET THERMOSTAT COVER | ||
42 | 0980003 | Choke lever link assembly | |
42 | 0381394 | Choke lever link assembly | |
43 | 0381395 | Choke shaft assembly | |
44 | 0980004 | Choke lever collar | |
44 | 0381393 | Choke lever collar assembly | |
45 | 0980002 | Float bowl assembly | |
45 | 0382129 | Float bowl assembly | |
46 | 0980001 | Ventur cluster assy | |
46 | 0382130 | Venturi cluster assembly | |
47 | POWER VALVE ASSY | ||
48 | 0980000 | Throttle body assembyl | |
48 | 0381399 | Throttle body assembly | |
49 | 0311677 | Pin, float hinge | |
50 | 0311672 | Screw, choke housing | |
51 | 0910184 | Baffle plate | This part replaces 0908032. |
52 | 0311662 | Retainer, therm cover | |
53 | 0311661 | Screw, pump lever | |
54 | 0311669 | Screw, choke lever | |
55 | 0311666 | Screw, choke valve | |
56 | 0311665 | Choke piston | |
57 | 0311664 | Pin, choke piston | |
58 | 0311673 | Plug, lead ball | |
59 | 0311663 | Plug, expansion | |
60 | SPRING, Pump return | ||
61 | SPRING, Pump discharge | ||
62 | BALL, Pump discharge | ||
63 | CLIP, Pump rod | ||
64 | 0908035 | Filter nut, fuel inlet | |
65 | GASKET, Fuel inlet nut | ||
66 | 0908034 | Filter, fuel inlet | |
67 | 0314548 | Spring, fuel filter | |
68 | GASKET, Fuel filter | ||
69 | 0908028 | Clip, idle stop screw | |
70 | 0315055 | Gasket, carb to adapter | |
71 | 0320107 | Tie strap | |
72 | 0982240 | Fuel pump assebmly | This part replaces 0980525. |
73 | 0315722 | Bow,fuel pump | |
74 | 0315723 | Gasket, fuel pump | |
75 | 0315724 | Spring, filter element | |
0381047 | 0381047 | Repair kit, pump | |
76 | 0312456 | . filter element | |
77 | 0980524 | Bowl assembly | |
78 | 0908872 | Bail | |
79 | 0384154 | Bowl gasket | |
80 | 0908873 | . gasket | |
81 | 0908635 | Stud, bowl mounting | |
82 | 0980636 | Fitting, pump, bowl carb | |
83 | 0306461 | Screw, steering arm | |
84 | HOSE, Bowl to carburetor | ||
85 | HOSE, Pump to bowl | ||
86 | 0310924 | Clamp, main cable to adapter | |
87 | 0306322 | Bolt, water pump | |
88 | 0306325 | . . lockwasher, solenoid screw | |
89 | 3705042 | Gasket, fuel pump mounting | |
90 | 0981649 | Throttle lever pin ass | This part replaces 0981535. |
91 | 3852420 | Locknut, throttle lever | This part replaces 0901646. |
91 | 3852420 | Locknut, throttle lever | This part replaces 0900402. |
92 | 0310685 | Abchor blcok, trunnion | |
92 | 0310687 | Detent spring, anchor block | |
94 | 0310688 | Sapcer, anchor block | |
95 | 0511111 | Screw, anchor block | |
96 | 0311388 | Oring | |
97 | 0306422 | Nut | |
98 | 0306344 | Ball sleeve | |
99 | 0907797 | Tube, heat exchange | |
99 | 0980093 | Heat exchange tube assy | |
100 | 0306345 | Nut, tube | |
100 | 0306345 | Nut, tube | |
101 | 0979773 | Fuel line, pump to carb | |
102 | 0310958 | Fitting, fuel line | |
102 | 0310924 | Clamp, main cable to adapter | |
103 | 0980874 | Stud spacer assy | |
104 | 0908825 | Spacer | |
105 | 0908947 | Gasket, flame arrestor | |
106 | 0980032 | Flame arrestor | |
109 | 0908081 | Pivot bracket, lilnkage | |
110 | 0304992 | Screw | |
111 | 0305650 | Cotter pin | |
112 | 0303887 | Washeer, pin to swivel bracket | |
113 | 0908979 | Bushing, pivot bracket | |
114 | 0908187 | Retainer, throttle arm | |
115 | 0908450 | Spring, throttle return | |
116 | 0907917 | Bail, flame arrestor | |
117 | 0980094 | Throttle shaft assembly | |
118 | 0309485 | Ãcrou, vis, rotule | |
119 | 0379926 | Ball joint | |
120 | 0908082 | Link | |
122 | 0120052 | . . lockwasher, solenoid screw | |
125 | 0981534 | Pin spacer assy |
