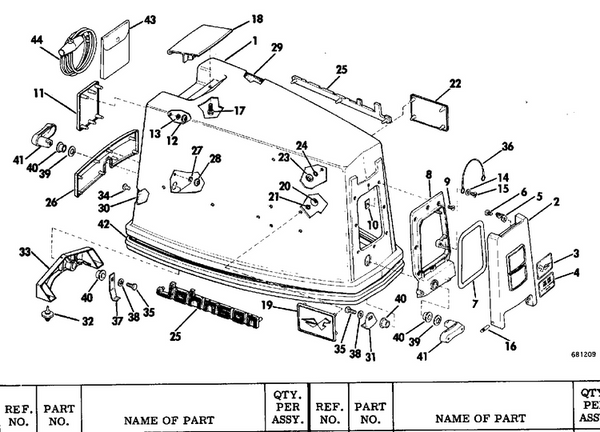

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 382855
Product Description: Decal Set
Category: JOHNSON / 1968 / 55 / TRL-10R 1968 / MOTOR COVER GROUP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0382509 | Motor cover assembly | |
| 2 | 0383345 | Front door assembly | |
| 3 | 0313873 | Plate, sea horse | |
| 4 | 0314139 | Plate, front door | |
| 5 | 0377318 | Roller latch assy | |
| 6 | 0305685 | .screw, roller latch | |
| 7 | 0314124 | Seal, front door | |
| 8 | 0383344 | Door frame assembly | |
| 9 | 0204461 | .screw | |
| 10 | 0204510 | .fastener, frame | |
| 11 | 0383343 | Applique and plate assembly, rear | |
| 12 | 0313973 | Nut, push | |
| 13 | 0314303 | O ring | |
| 14 | 0328737 | Washer | This part replaces 0306015. |
| 15 | 0307426 | Screw | |
| 16 | 0314520 | Hinge pin | |
| 17 | 0312299 | Screw, cable clamp | |
| 18 | 0313696 | Tilt handle | |
| 19 | 0383024 | Applique plate, seahorse port | |
| 20 | 0313973 | Nut, push | |
| 21 | 0314303 | O ring | |
| 22 | 0383025 | Applique plate, seahorse stdb | |
| 23 | 0313973 | Nut, push | |
| 24 | 0314303 | O ring | |
| 25 | 0313883 | Applique johnson | |
| 26 | 0383346 | Applique plate assy | |
| 27 | 0313973 | Nut, push | |
| 28 | 0314303 | O ring | |
| 29 | 0314293 | Sound blanket, top | |
| 30 | 0314294 | Sound blanket, bottom | |
| 31 | 0313637 | Latch, handle | |
| 32 | 0313984 | Bumper, bracket | |
| 33 | 0314037 | Locating bracket, motor cover rear | |
| 34 | 0314135 | River, locating bracket | |
| 35 | 0552062 | Screw, clamp | |
| 36 | 0379123 | Strap | |
| 37 | 0330252 | Hook, front and rear cover | This part replaces 0312185. |
| 38 | 0313219 | Washer | |
| 39 | 0328703 | Washer, screw hook | This part replaces 0304051. |
| 40 | 0308532 | Bague, levier de verrouillage | |
| 41 | 0382645 | Handle shaft assy., front and rear latch | |
| 42 | 0314128 | Seal, upper to lower motor cover | |
| 43 | 0314494 | Bag emergency starter rope | |
| 44 | 0378347 | Rope ay, starter | |
| 0382855 | 0382855 | Decal set | |
| 0382758 | 0382758 | Owners manual |
