EVINRUDE-JOHNSON 383784 . Screen Valve Housing

Write a Review
$21.99
SKU:
383784
Schematic Object Key:
9

EVINRUDE-JOHNSON 383784 . Screen Valve Housing

$21.99

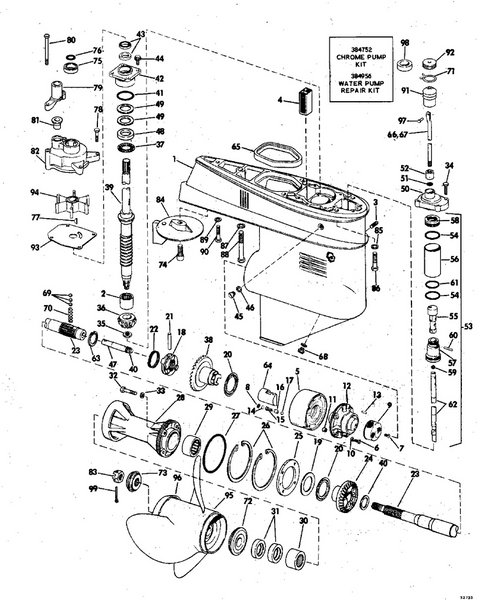

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 383784 . Screen Valve Housing

Schematic Object Key : 9

Product Description: . Screen Valve Housing

Category: JOHNSON / 1973 / 50 / 50R73R 1973 / GEARCASE ELECTRIC START

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0386236 0386236 Gearcase assy., complete std
0386237 0386237 Gearcase assy., complete long
1 0393752 Gearcase bearing assy. This part replaces 0385560.
2 0382343 Bearing, pinion
3 0322994 . set screw This part replaces 0317652.
4 0314175 Screen, water intake
5 0385515 Oil poump assembly
6 0307175 ,,screw ,housing
7 0308120 . screw
8 0318603 . retaining ring
9 0383784 . screen valve housing
10 0120052 . . lockwasher, solenoid screw
11 0315391 Cover
12 0385516 . cover pin assy
13 0202136 . . pin, cover to gearcase
14 0318569 ,,plug
15 0314034 . spring, pressure relief
16 0322879 Guide,ball valve This part replaces 0318568.
17 0315164 . . ball, valve shift
18 0318303 Shifter, clutch dog
19 0313447 Thrust washer
20 0382408 Thrust bearing
21 0313448 Pin, clutch dog
22 0324369 Spring, clutch dog pin This part replaces 0313454.
23 0386282 Propellar shaft assy.
24 0318353 Gear, reverse
25 0313453 Retainer plate, bearing housing
26 0313445 Retaining ring
27 0313446 "o" riing, brg. hsg
28 0434391 Bearing housing assembly. This part replaces 0384603.
29 0382407 Bearing assy, forward gear
30 0379504 Propshaft bearing assembly
31 0330137 Seal This part replaces 0310600.
32 0320041 Screw, housing to gearcase This part replaces 0316564.
33 0317178 O ring
34 0909533 Screw, adapter This part replaces 0316357.
35 0313339 Nut, pinion to driveshaft
36 0315533 Pinioin gear
37 0385068 Thrust bearing assembly.
38 0385568 Gear assy., forward
39 0385102 Driveshaft assy., std
39 0385103 Driveshaft assy., long
40 0316484 Thrust washer, shifter
41 0313754 O ring
42 0435519 Bearing housing assy. This part replaces 0385086.
43 0321459 Oil retainer, housing This part replaces 0315882.
44 0329894 Screw This part replaces 0302510.
45 0307551 Screw
46 0311598 Seal
47 0385953 Shift rod bearing
48 0317230 Thrust washer
49 0317231 Shim, . 002"
49 0317232 Shim, 0.005 in. 0,12mm
50 0385756 Cover assembly
51 0318372 "o" ring, shift rod
52 0318308 .bushing, shift rod
53 0385523 Shift assy, gearcase
54 0309731 "o" ring,upper bearing
55 0317856 . valve, shift assy
56 0317858 . cylinder, shift assy
57 0317859 . piston, shift assy
58 0317860 . cap, piston
59 0317863 . screw, plug
61 0554545 "o" ring, small
62 0385521 . push rod assy.
63 0317908 Snap ring, plunger
64 0317905 Plunger
65 0324937 Seal, gearcase to inner exh. hsg. This part replaces 0313656.
66 0318403 Shift rod, standard
67 0318404 Shift rod, long
68 0318544 Screw, fill drain
69 0316506 Ball, detent
70 0318575 Spring detent
71 0320107 Tie strap This part replaces 0318250.
72 0127084 Thrust bushing This part replaces 0318841.
73 0315810 Spacer, impeller nut
74 0313715 Screw, cap, hex hd, 7 16 14 x 1
75 0341732 Grommet, housing This part replaces 0315748.
76 0339543 O ring This part replaces 0303059.
77 0308928 .key, impeller 5 inch longer parts
78 0909533 Screw, adapter This part replaces 0316357.
79 0315838 Bracket, water tube
80 0324430 Screw, anode This part replaces 0316658.
81 0315837 Grommet, water tube
82 0387215 Impeller housing, gearcase This part replaces 0316292.
83 0314503 Nut, impeller
84 0338742 Compensateur de dérive This part replaces 0316981.
85 0307708 Lock washer, mounting
86 0305282 Bolt, bowl suction piece
87 0306314 L'washer,scr,long
88 0313697 Scr,grc to hsg.long
89 0306470 Lock washer
90 0306503 Screw, adjustment rod
91 0317922 Seal, shift rod
92 0321452 Grommet This part replaces 0318249.
93 0320981 Plate, impeller housing This part replaces 0315745.
94 0377230 Impeeler assembly
95 0383160 Propeller 14 x 19
95 0382761 Propeller ,14 x 11
95 0765181 Propeller This part replaces 0382762.
95 0765182 Propeller w models This part replaces 0382763.
95 0765183 Propeller, wdel models This part replaces 0382764.
95 0382765 Propeller 13 x 19
95 0382766 Prop. 12 3 4 x 21 std
95 0384140 Prop., 13 3 4 x 21 2 bl. brnz.
95 0389512 Pro, 12 3 4 x 21 sst cupped This part replaces 0384141.
95 0384144 Prop., 13 3 4 x 15 sst
95 0384139 Prop., 13 3 8 x 17 sst
95 0384142 Prop., 13 x 19 sst
95 0389512 Pro, 12 3 4 x 21 sst cupped This part replaces 0384702.
96 0314188 Converging ring
96 0315850 Converging ring, brnz
96 0332393 Converging ring This part replaces 0319432.
97 0388676 Pin, shaft lever to shift rod This part replaces 0318583.
98 0305762 Seal ring
99 0314502 Cotter pin
