EVINRUDE-JOHNSON 384859 Lever

Write a Review
$59.99
SKU:
384859
Schematic Object Key:
58

EVINRUDE-JOHNSON 384859 Lever

$59.99

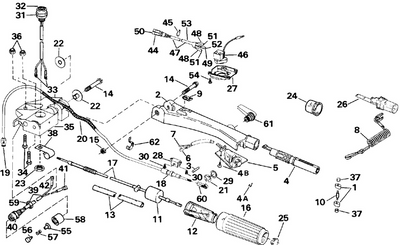

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 384859 Lever

Schematic Object Key : 58

Product Description: Lever

Category: JOHNSON / 1970 / 60 / 60ES70D 1970 / REMOTE CONTROL GROUP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0384580 0384580 Remote control assembly less throttle calbe
1 0120001 Clamp, hose
2 0202991 Screw, cam lever
3 0554330 Screw, cam lever
4 0206415 Friction adjusting screw
5 0206417 Nut friction adjunstment screw
6 0316244 Cap, insulating
7 0316166 Washer
8 0279173 Indicator light assembly hot
9 0316165 Release knob
11 0279174 Instrument cable assembly standard
11 0279172 Instrument cable assembly, long
12 0510780 8 ring termianl
13 0307801 Terminal, ring
14 0204034 Terminal, ring
15 0204040 Ring terminal
16 0279175 Choke switch assembly
17 0279176 Blocking diode assembly
18 0510780 8 ring termianl
19 0510628 . sleeve
20 0279177 Lead assembly ignition switch to choke switc
21 0510780 8 ring termianl This part replaces 0204037.
22 0204034 Terminal, ring
23 0313495 . spade terminal
24 0316245 Clamp
25 0900696 Washer
26 0900185 Ecrou
27 0303715 Washer, rivet
28 0329594 Screw, cam follower This part replaces 0303737.
29 0384032 Arm rod assy
30 0316198 Heat shrink tubing
31 0310690 Washer, link
32 0306014 Screw, throttle adjustment
33 0306376 Cotter pin
34 0306559 Screw, ignition switch
35 0384043 Lead assembly, hot light, ignition switch
36 0510780 8 ring termianl This part replaces 0204037.
37 0308517 Roller, lever to box
38 0308530 Spacer, control housing
39 0308532 Bague, levier de verrouillage
40 0310096 Scre, throttle link
41 0310115 Screw, mounting
42 0310442 Clamp, tps lead
43 0386947 Ignition switch This part replaces 0383493.
44 0304644 . hex nut
45 0309893 .washer, switch
46 0204366 . face nut
47 KEY IGNITION
48 0310693 ,roller,throttle lever
49 0384850 Control housing pin assembly. mech half
50 0310781 Cache, interrupteur
51 0310782 Ecrou, interrupteur
52 0311620 ,spring, locking lever
53 0315647 Lock pin, lever
54 0315648 Spring, lock pin
55 0316770 Lever ,warm up
56 0315651 Screw, friction lever
57 0315652 Guide, warm up lever to housing
58 0384859 Lever
59 0315654 Knob, lever
60 0315655 , cap, lever
61 0315656 Screw
62 0315657 Lever, reverse lock
63 0315658 Cam, lever
64 0315659 Spring, roller level
65 0316514 Control housing electrical half
66 0315661 Switch plate
67 0315663 Washer, lever arm
68 0315664 Screw, control housing
69 0316772 Set screw, lever stop
70 0315811 Knob, friction adjustment screw
71 0384859 Lever
72 0384042 ,switch cable assy
73 0510193 . screw, clamp cover
74 0307025 Screw,friction adjusting screw
75 0305009 Screw
76 0206408 Case guide,control hsg.
77 0385959 Clamp set sc r.assy. This part replaces 0206423.
78 0027708 Battery terminal assembly positive
79 0303889 .nut
80 0385407 Battery terminal kit This part replaces 0277709.
81 0912072 Nut, adjustment rod This part replaces 0302861.
82 0173506 Screw This part replaces 0303222.
83 0173506 Screw This part replaces 0303285.
84 0303317 Screw
85 0308055 ,trunnion cap
86 0308056 Screw
87 0310685 Abchor blcok, trunnion
88 0310686 Screw
89 0310687 Detent spring, anchor block
90 0310688 Sapcer, anchor block
91 0310729 Spring clip
92 0304494 Clamp
93 0385956 Guide o ring assy. This part replaces 0377850.
94 0307063 O ring
0384476 0384476 Decal set
95 THROTTLE CABLE 5 THRU 50
95 0377372 12 feet long life cables
95 0377373 13 feet long life cables
95 0377374 14 feet long life cables
95 0377375 15 feet long life cables
95 0377376 16 feet long life cables
95 0377377 17 feet long life cables
95 0377378 18 feet long life cables
95 0377379 19 feet long life cables
95 0377380 20 feet long life cables
96 0315452 Nut, adjust
