Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 41

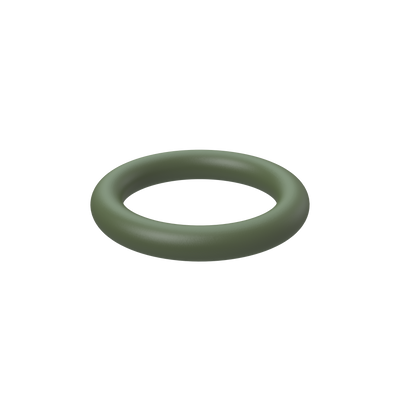

Product Description: O-Ring
Category: STERN DRIVE / 1998 / 5 / 502BPBYC 1998 / FUEL SYSTEM & INTAKE MANIFOLD -- TBI MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0203363 | Retainer | This part replaces 3852034. |
2 | 3854152 | Valve, pressure | |
3 | 3852462 | Fitting, cover, return line | |
4 | 3853557 | Screw, brace to alterntr bracket | |
5 | 0909988 | Bushing, tilt trim cable | This part replaces 3852481. |
6 | 3852017 | Adapter, fuel line | |
7 | 3853642 | O ring, retainer, fuel pump | |
8 | 3853572 | Retainer, fuel pump to cover | |
9 | 3853573 | Bracket, fuel pump grommet | |
10 | 3857728 | Gasket, cover, reservoir | |
11 | 3853575 | Float | |
12 | 3853576 | Seat, float needle | |
13 | 3853577 | Gasket, float needle seat | |
14 | 0915883 | Needle, float | This part replaces 3853578. |
15 | 3853579 | Clip, needle to float | |
16 | 3853597 | Elbow, vent, reservoir to intake | |
17 | 0174177 | Elbow kit | This part replaces 3852480. |
18 | 3853606 | Screw, cover to reservoir | |
19 | 0126341 | Cap | This part replaces 3853616. |
20 | 3857650 | Fuel pump, high pressure | |
21 | 3854149 | Reservoir assy. | |
22 | 0321195 | . plub, manifold | This part replaces 3852167. |
23 | 3853326 | Screw, bracket to engine | |
24 | 3856438 | Bracket, fuel filter pump | |
25 | 3852029 | Sender, water temperature | |
26 | 3854405 | Cover, reservoir | |
27 | 0120052 | . . lockwasher, solenoid screw | This part replaces 3852001. |
28 | 3852108 | Clamp, distributor | |
29 | 3857662 | Gasket set, intake manifold | |
30 | 3852013 | Elbow, filter inlet | |
31 | 0306556 | Nut, leaf screw | This part replaces 3852064. |
32 | 0333677 | Screw | This part replaces 3852208. |
33 | 0320107 | Tie strap | This part replaces 3852158. |
34 | 3853620 | Screw, circuit breaker | |
35 | 0909988 | Bushing, tilt trim cable | This part replaces 3852481. |
36 | 3856270 | Intake manifold | |
37 | 0312780 | Gasket, dist. to manifold | This part replaces 3852109. |
38 | 3850861 | Cover fuel filter assy | |
39 | 0502906 | Filter, fuel | |
40 | 3853494 | Fitting | |
41 | 3850820 | O ring | |
42 | 3853311 | Bracket, lift | |
43 | 3857985 | Fuel pump, low pressure for service of 4.3 5.8l use 3858261. for service of 7.4 8.2l use 3858714 | |
44 | 3854163 | Circuit breaker, 20a fuel pump | |
45 | 3855935 | Bolt, manifold to head | |
46 | 3852476 | Cap, manifold | |
47 | 3857411 | Bracket, throttle cable | |
48 | 3853310 | Bracket, fuel filter | |
49 | 0313022 | Locknut, double ended bolt | This part replaces 3852118. |
50 | 3850278 | Line, tbi to reservoir | |
51 | 3856534 | Line, fuel pump to reservoir | |
52 | 3852019 | Trunnion, s.a.e. cable | |
53 | 3850266 | Anchor block | |
54 | 0303459 | Ecrew,exhaust cover,1 1 2"long | This part replaces 3852048. |
55 | 3853326 | Screw, bracket to engine | |
56 | 0435009 | Pulse limiter | This part replaces 3852225. |
57 | 3850689 | Hose, vent reservoir to intake | |
58 | 3850039 | Adapter, intake manifold | |
59 | 3855290 | Bracket, fuel line | |
60 | 0511514 | Clamp, cable | This part replaces 3852231. |
61 | 0322652 | Clamp, snap | This part replaces 3852170. |
62 | 3855190 | O ring, regulator | |
63 | 3850405 | Cap, distributor plug | |
65 | 0126341 | Cap | This part replaces 3853616. |
66 | 0586224 | Relay assy. | This part replaces 3857533. |
67 | 3853493 | Fitting, filter outlet to pump | |
68 | 0915352 | O ring, water sensor | This part replaces 3850819. |
69 | 3850355 | Gasket, throttle body | |
70 | HOSE, MAP sensor | ||
71 | 3850423 | O ring, 5 16 in. | |
72 | 3850424 | O ring, 3 8 in. | |
73 | 3853494 | Fitting | |
74 | 3850820 | O ring | |
75 | 0912627 | Clamp | This part replaces 3852602. |
76 | 3850277 | Line, pump to tbi | |
77 | 3852008 | Screw, adapter | |
78 | 0328724 | Screw | This part replaces 3852115. |
79 | 3853399 | Screw, brace to alternator | |
80 | 3856129 | Bolt, intake manifold, short | |
81 | 3854763 | Bracket, reservoir | |
82 | 3853794 | Clamp, anti siphon hose | |
83 | 3850396 | Sensor, manifold air pressure | |
84 | 3852335 | Hose, tee to high rise | |
85 | 3850374 | Seal kit, fuel reservoir | |
86 | 0911616 | Hose clamp | This part replaces 3852529. |
87 | 3852160 | Stud, throttle body | |
88 | 3850272 | Bracket, knock module | |
89 | 3851990 | Bracket, pcm knock module | |
90 | 3857925 | Module, pcm | |
90 | 3857926 | Module, pcm | |
90 | 3857775 | Module, pcm | |
91 | 3855778 | Screw, pcm module | |
92 | 0328724 | Screw | This part replaces 3852115. |
93 | 3850356 | Module, knock | |
94 | 0334191 | Bracket | This part replaces 3852210. |
95 | 3852075 | Plug, intake manifold | |
96 | 3853558 | Bolt, bracket to head | |
97 | 3856449 | Fitting, reservoir | |
98 | 3857340 | Fitting, pcv valve |
