EVINRUDE-JOHNSON 3852003 Washer, Trim Sender

Write a Review
$1.25
SKU:
3852003
Schematic Object Key:
11

EVINRUDE-JOHNSON 3852003 Washer, Trim Sender

$1.25

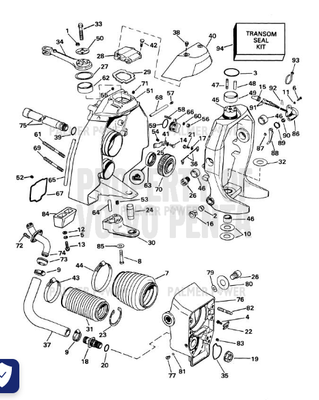

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3852003 Washer, Trim Sender

Schematic Object Key : 11

Product Description: Washer, Trim Sender

Category: STERN DRIVE / 1994 / 5 / 50FACPMDM 1994 / TRANSOM MOUNT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0121674 Locknut This part replaces 3852004.
2 3853424 Grommet, pivot pin
3 0302337 O ring, bearing housing This part replaces 3852044.
4 0122147 Screw, adapter to steering bracket This part replaces 3852006.
5 0306470 Lock washer This part replaces 3852061.
6 0308825 Screw roller This part replaces 3852081.
7 3854127 Bellows, u joint
8 0317968 Screw, cylinder to clevis This part replaces 3852151.
9 0912627 Clamp This part replaces 3852602.
10 3852557 Thrust washer
11 3852003 Washer, trim sender
12 0328743 Rondelle This part replaces 3852191.
13 0329055 Screw, anode This part replaces 3852192.
14 0330437 Screw This part replaces 3852201.
15 3853564 Connector
16 3853423 Bushing, pivot pin
17 0329241 Washer This part replaces 3852193.
18 3852533 Nipple, water inlet
19 3852534 Nut, nipple
20 0911718 O ring, nipple This part replaces 3852535.
21 0908158 Screw, anode This part replaces 3852050.
22 3852313 Retainer, shift cable
23 3852665 Retainer, exhaust boot
24 3852728 Shaft, steering pivot
25 0328743 Rondelle This part replaces 3852191.
26 3852316 Screw, gimbal to pivot
27 3852554 Thrust washer, steering arm
28 3854577 Cap gasket This part replaces 3854246.
29 3852677 Gasket, cap
30 3858192 Bracket, steering support This part replaces 3852596.
31 3850426 Bellows, exhaust
32 3852557 Thrust washer
33 3852591 Screw, steering arm
34 3852379 Steering arm This part replaces 3852849.
35 3852560 Seal, water passage
36 3853929 Ground strap, bracket to arm
37 3852352 Hose, water inlet
38 3852682 Screw, cover
39 0911729 O ring This part replaces 3852537.
40 3855005 Cover insert This part replaces 3852397.
41 3852354 Clamp, oil line
42 3852473 Screw, cap to gimbal
43 0912628 Clamp, exhaust This part replaces 3852603.
44 3852604 Clamp, exhaust
45 3852395 Gimbal assy.
46 3852544 Bearing, steering tilt
47 3852588 Stud
48 3852545 Dowel, steering arm
49 3852571 Sleeve, gimbal
50 3852585 Plate, steering arm
51 3851976 Gimbal housing assy. This part replaces 3850713.
52 3852953 Insert, exhaust pipe
53 0910935 Insert, 3 8 16 This part replaces 3852515.
54 0910901 Insert This part replaces 3852513.
55 3852567 Insert
56 0121731 Nut, hook, front This part replaces 3852005.
57 0313607 Lube fitting This part replaces 3852121.
58 0316040 Stud, exhaust housing This part replaces 3852141.
59 0322501 O ring, manifold block This part replaces 3852169.
60 0329241 Washer This part replaces 3852193.
61 3852546 Stud, transom, long
62 3852547 Bearing, steering
63 3852548 Seal, driveshaft
64 3852549 Pin, steering support
65 3852550 Seal, transom
66 3852559 Manifold block
67 3852846 Seal, exhaust pipe
68 3852564 Tube, grease
69 3852576 Stud, transom, short
70 3853807 Bearing assy., u joint
71 3852526 Insert
72 0341013 Screw, cover This part replaces 3852454.
73 3852556 Bushing, water tube
74 3853880 Water tube retainer
75 3856800 Sleeve connector assy. This part replaces 3850694.
76 3850705 Pivot housing assy.
77 3852536 Plug, water drain
78 3852698 Insert, pivot screw
79 3852558 Washer, gimbal to pivot hsg.
80 3852697 Thrust washer, pivot screw
81 0911311 O ring, plug This part replaces 3852523.
82 3852551 Stud, pivot to gear housing
83 3852514 Insert, shift cable retainer
84 3854130 Anode insert assy.
85 3852697 Thrust washer, pivot screw
86 0984748 Trim sender assy This part replaces 3850470.
87 0511527 Retainer This part replaces 3852232.
88 0911800 Arm This part replaces 3852552.
89 3852577 Spring
90 0320689 Écrou This part replaces 3852164.
91 0581656 Terminal, socket This part replaces 3852257.
92 3852555 Retainer, plug
93 0317893 Tie strap This part replaces 3852149.
94 3858631 Transom seal kit This part replaces 3854270.
