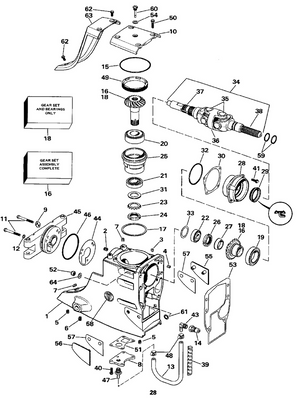

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 29
Product Description: O-Ring, Bearing Carrier
Category: STERN DRIVE / 1998 / 7.4 / 74FHPBYC 1998 / UPPER GEAR HOUSING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 3857007 | Gear housing assy., 22 23 | |
2 | 3855775 | Gear housing inserts | |
3 | 3852541 | Insert, 7 16 14 | |
4 | 0910901 | Insert | This part replaces 3852513. |
5 | 0910935 | Insert, 3 8 16 | This part replaces 3852515. |
6 | 0910901 | Insert | This part replaces 3852513. |
7 | 0941814 | Stud, gearcase | |
8 | 3853387 | Gasket, cylinder head | |
9 | 3852363 | Shim, upper bearing, 0.002 in. | |
9 | 3852364 | Shim, upper bearing, 0.003 in. | |
9 | 3852365 | Shim, upper bearing, 0.004 in. | |
9 | 3852366 | Shim, upper bearing, 0.005 in. | |
9 | 3852367 | Shim, upper bearing, 0.010 in. | |
10 | 0341013 | Screw, cover | This part replaces 3852454. |
11 | 3852317 | Gasket, top cover | |
12 | 0303067 | "o" ring, driveshaft | This part replaces 3852045. |
13 | 3854847 | Rod, oil indicator | |
15 | 3851203 | Gear set, 22 23 | |
16 | DRIVE GEAR | ||
17 | PINION GEAR | ||
18 | 3852267 | Bearing carrier, pinion | |
19 | 3852269 | Ring, upper bearing support | |
20 | 3852384 | U joint assembly | |
21 | 0912212 | Shaft, yoke | This part replaces 3850815. |
22 | 0912213 | Double center | This part replaces 3850813. |
23 | 3850814 | Stub, yoke | |
24 | 3850812 | U joint | |
25 | 3850757 | Retainer, u joint | |
26 | 3852310 | Retainer, pinion gear | |
27 | 3852272 | Seal, u joint to bearing carrier | |
28 | 3852355 | Shim, bearing carrier, 0.003 in. | |
28 | 3852356 | Shim, bearing carrier, 0.004 in. | |
28 | 3852357 | Shim, bearing carrier, 0.005 in. | |
28 | 3852358 | Shim, bearing carrier, 0.010 in. | |
29 | 3852308 | O ring, bearing carrier | |
30 | 0341013 | Screw, cover | This part replaces 3852454. |
31 | 3852565 | O ring, u joint | |
32 | 3852390 | Bearing, drive gear | |
33 | 3852279 | Gasket, water passage | |
34 | 3852295 | C clip, upper driveshaft | |
35 | 3852299 | C clip, spring | |
36 | 3852304 | Sleeve, pretension | |
37 | 3855783 | Clutch cone | |
38 | 3852292 | Driveshaft, upper | |
39 | 3852262 | Ring, bearing retainer | |
40 | 3852373 | Screw, water passage | |
41 | 3857176 | Bearing, drive gear | |
42 | 3852368 | Shim, lower bearing, 0.002 in. | |
42 | 3852369 | Shim, lower bearing, 0.003 in. | |
42 | 3852370 | Shim, lower bearing, 0.004 in. | |
42 | 3852371 | Shim, lower bearing, 0.005 in. | |
42 | 3852372 | Shim, lower bearing, 0.010 in. | |
43 | 3852368 | Shim, lower bearing, 0.002 in. | |
43 | 3852369 | Shim, lower bearing, 0.003 in. | |
43 | 3852370 | Shim, lower bearing, 0.004 in. | |
43 | 3852371 | Shim, lower bearing, 0.005 in. | |
43 | 3852372 | Shim, lower bearing, 0.010 in. | |
44 | 3852301 | Nut, upper driveshaft, 0.000 in. | |
44 | 3852302 | Nut, upper driveshaft, 0.008 in. | |
44 | 3852303 | Nut, upper driveshaft, 0.016 in. | |
44 | 3852375 | Nut, upper driveshaft, 0.024 in. | |
45 | 3852298 | Spacer, spring | |
46 | 3852307 | C clip, seal | |
47 | 3852309 | Screw, pinion gear retainer | |
48 | 3850852 | Bearing, pinion to inner carrier | |
49 | 3850853 | Bearing, pinion to outer carrier | |
50 | 3852296 | Spring, clutch cone to shaft | |
51 | 3854539 | Screw, gearcase plug | |
52 | 0333572 | O ring | This part replaces 3855081. |
53 | 3852563 | Shim, thrust plate, 0.015 in. | |
54 | 3852561 | Plate, thrust, port | |
55 | 3852562 | Plate, thrust, starboard | |
56 | 3854401 | Cover, upper gearcase, top | |
57 | 0910901 | Insert | This part replaces 3852513. |
58 | 3854021 | Screen, oil sump | |
59 | 3855787 | Shift assembly | |
60 | 3856502 | Shoe, shift | |
61 | 0814184 | Spring, shift shoe | |
62 | 0925093 | O ring, shift actuator | |
63 | 3855785 | Housing, shift actuator | |
64 | 0853858 | Seal, shift actuator | |
65 | 0973593 | Pin, tension | |
66 | 0942871 | Pin, eccentric piston | |
67 | 3856008 | Piston, eccentric | |
68 | 0897871 | Shim, shift shoe stop | |
69 | 0897711 | Screw, shift shoe stop | |
70 | 3857460 | Rod bracket, shift | |
71 | 3852329 | Cube, cable to bellcrank | |
72 | 3852568 | Screw, cover | |
73 | 3852294 | Ring, spacer | |
74 | 0305650 | Cotter pin | This part replaces 3852052. |
75 | 3852277 | Pin, bellcrank | |
76 | 0302858 | Cotter pin, shoulder bolt | This part replaces 3854480. |
77 | 3856742 | Screw, shift housing | |
78 | 0329241 | Washer | This part replaces 3852193. |
79 | 0309192 | Rondelle | This part replaces 3852083. |
80 | 0328703 | Washer, screw hook | This part replaces 3852184. |
81 | 3852280 | Plate, water passage | |
82 | 0910953 | Retainer ring, thrust plate | This part replaces 3852516. |
83 | 3852418 | Cover, gear housing, rear | |
84 | 3853423 | Bushing, pivot pin | |
85 | 3853424 | Grommet, pivot pin | |
86 | 3853329 | Locknut, transom plate | |
87 | 3855644 | Decal, sx cobra | |
87 | 3855646 | Decal, dp duoprop | |
88 | 3855356 | Decal, sx cobra | |
88 | 3855647 | Decal, dp duoprop | |
89 | 3850594 | Gear housing seal kit |
