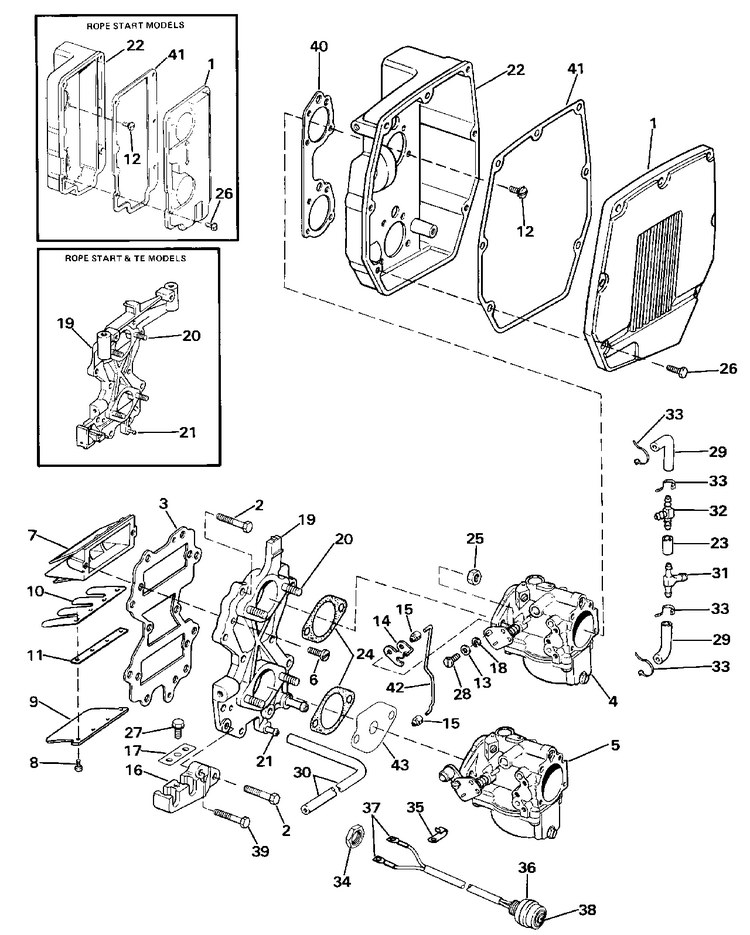

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 12
Replacement: This part (3852459) replaces 0908769.
Product Description: Screw, Switch
Category: EVINRUDE / 1987 / 50 / E50BELCUD 1987 / INTAKE MANIFOLD AND PRIMER SYSTEM
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0330912 | Cover, air silencer | |
| 1 | 0329396 | Cover | |
| 2 | 0306409 | Screw, anchor block lower | |
| 3 | 0335633 | Gasket | This part replaces 0317504. |
| 4 | CARBURETOR ASSY., Upper | ||
| 5 | CARBURETOR ASSY., Lower | ||
| 6 | 0306474 | Screw | |
| 7 | 0389810 | Leaf plate | |
| 7 | 0395442 | Leaf plate assembly | |
| 8 | 0327074 | Screw | |
| 9 | 0330675 | Leaf stop | |
| 9 | 0323601 | Butée de clapet | |
| 10 | 0317739 | Leaf valve | |
| 10 | 0308947 | Leaf valve | |
| 11 | 0323412 | Cale | |
| 12 | 0328694 | Screw, bracket | This part replaces 0911122. |
| 12 | 3852459 | Screw, switch | This part replaces 0908769. |
| 13 | 0328735 | Washer, screw, ball joint | |
| 14 | 0329418 | Lever, synchronization adj. | |
| 15 | 0318165 | Dispositif de retenue, tringlerie de carburateur | |
| 16 | 0320276 | Anchor block | |
| 17 | 0319967 | Retainer, detent | |
| 18 | 0303701 | Lock washer, adjustment screw | |
| 19 | 0391780 | Manifold assy | |
| 19 | 0395736 | Manifold assy, rope te. | |
| 20 | 0314497 | Stud, carburetor mounting | |
| 21 | 0325659 | Fitting | |
| 22 | 0333522 | Base | |
| 22 | 0431994 | Base, air silencer | This part replaces 0395361. |
| 23 | HOSE, Tee to tee, 25MM (1") | ||
| 24 | 0325092 | Gasket | |
| 25 | 0316355 | But, carburetor mounting | |
| 26 | 0321127 | Screw, water pump assy. | |
| 26 | 0333706 | Screw, bearing housing to gearcase | This part replaces 0329239. |
| 27 | 0328724 | Screw | This part replaces 0308738. |
| 28 | 0328714 | Screw, clip | |
| 29 | HOSE, Tee to carb. 76mm (3") | ||
| 30 | HOSE, Silencer to manifold, 121mm (4-3/4") | ||
| 31 | 0326031 | Tee, carburetor hose | |
| 32 | 0313537 | Fitting, tee recirculation hose | |
| 33 | 0320107 | Tie strap | |
| 34 | 0310598 | Nut, starting switch | |
| 35 | 0310441 | Clamp, small | This part replaces 0310493. |
| 36 | 0583927 | Primer switch | This part replaces 0393798. |
| 37 | 0511829 | Ring terminal | This part replaces 0114208. |
| 38 | 0391306 | Cover | |
| 39 | 0306418 | Screw, anchor block lower | |
| 40 | 0330910 | Gasket | |
| 41 | 0330909 | Gasket | |
| 41 | 0330698 | Gasket | |
| 42 | 0329888 | Link | |
| 43 | 0333527 | Restrictor plate |
