EVINRUDE-JOHNSON 3852462 Fitting, Cover, Return Line

Write a Review
$5.11
SKU:
3852462
Schematic Object Key:
3

EVINRUDE-JOHNSON 3852462 Fitting, Cover, Return Line

$5.11

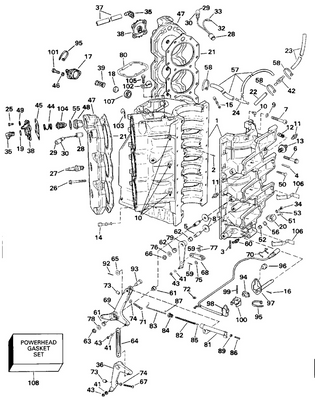

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3852462 Fitting, Cover, Return Line

Schematic Object Key : 3

Product Description: Fitting, Cover, Return Line

Category: STERN DRIVE / 1998 / 5 / 502BPBYC 1998 / FUEL SYSTEM & INTAKE MANIFOLD -- TBI MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0203363 Retainer This part replaces 3852034.
2 3854152 Valve, pressure
3 3852462 Fitting, cover, return line
4 3853557 Screw, brace to alterntr bracket
5 0909988 Bushing, tilt trim cable This part replaces 3852481.
6 3852017 Adapter, fuel line
7 3853642 O ring, retainer, fuel pump
8 3853572 Retainer, fuel pump to cover
9 3853573 Bracket, fuel pump grommet
10 3857728 Gasket, cover, reservoir
11 3853575 Float
12 3853576 Seat, float needle
13 3853577 Gasket, float needle seat
14 0915883 Needle, float This part replaces 3853578.
15 3853579 Clip, needle to float
16 3853597 Elbow, vent, reservoir to intake
17 0174177 Elbow kit This part replaces 3852480.
18 3853606 Screw, cover to reservoir
19 0126341 Cap This part replaces 3853616.
20 3857650 Fuel pump, high pressure
21 3854149 Reservoir assy.
22 0321195 . plub, manifold This part replaces 3852167.
23 3853326 Screw, bracket to engine
24 3856438 Bracket, fuel filter pump
25 3852029 Sender, water temperature
26 3854405 Cover, reservoir
27 0120052 . . lockwasher, solenoid screw This part replaces 3852001.
28 3852108 Clamp, distributor
29 3857662 Gasket set, intake manifold
30 3852013 Elbow, filter inlet
31 0306556 Nut, leaf screw This part replaces 3852064.
32 0333677 Screw This part replaces 3852208.
33 0320107 Tie strap This part replaces 3852158.
34 3853620 Screw, circuit breaker
35 0909988 Bushing, tilt trim cable This part replaces 3852481.
36 3856270 Intake manifold
37 0312780 Gasket, dist. to manifold This part replaces 3852109.
38 3850861 Cover fuel filter assy
39 0502906 Filter, fuel
40 3853494 Fitting
41 3850820 O ring
42 3853311 Bracket, lift
43 3857985 Fuel pump, low pressure for service of 4.3 5.8l use 3858261. for service of 7.4 8.2l use 3858714
44 3854163 Circuit breaker, 20a fuel pump
45 3855935 Bolt, manifold to head
46 3852476 Cap, manifold
47 3857411 Bracket, throttle cable
48 3853310 Bracket, fuel filter
49 0313022 Locknut, double ended bolt This part replaces 3852118.
50 3850278 Line, tbi to reservoir
51 3856534 Line, fuel pump to reservoir
52 3852019 Trunnion, s.a.e. cable
53 3850266 Anchor block
54 0303459 Ecrew,exhaust cover,1 1 2"long This part replaces 3852048.
55 3853326 Screw, bracket to engine
56 0435009 Pulse limiter This part replaces 3852225.
57 3850689 Hose, vent reservoir to intake
58 3850039 Adapter, intake manifold
59 3855290 Bracket, fuel line
60 0511514 Clamp, cable This part replaces 3852231.
61 0322652 Clamp, snap This part replaces 3852170.
62 3855190 O ring, regulator
63 3850405 Cap, distributor plug
65 0126341 Cap This part replaces 3853616.
66 0586224 Relay assy. This part replaces 3857533.
67 3853493 Fitting, filter outlet to pump
68 0915352 O ring, water sensor This part replaces 3850819.
69 3850355 Gasket, throttle body
70 HOSE, MAP sensor
71 3850423 O ring, 5 16 in.
72 3850424 O ring, 3 8 in.
73 3853494 Fitting
74 3850820 O ring
75 0912627 Clamp This part replaces 3852602.
76 3850277 Line, pump to tbi
77 3852008 Screw, adapter
78 0328724 Screw This part replaces 3852115.
79 3853399 Screw, brace to alternator
80 3856129 Bolt, intake manifold, short
81 3854763 Bracket, reservoir
82 3853794 Clamp, anti siphon hose
83 3850396 Sensor, manifold air pressure
84 3852335 Hose, tee to high rise
85 3850374 Seal kit, fuel reservoir
86 0911616 Hose clamp This part replaces 3852529.
87 3852160 Stud, throttle body
88 3850272 Bracket, knock module
89 3851990 Bracket, pcm knock module
90 3857925 Module, pcm
90 3857926 Module, pcm
90 3857775 Module, pcm
91 3855778 Screw, pcm module
92 0328724 Screw This part replaces 3852115.
93 3850356 Module, knock
94 0334191 Bracket This part replaces 3852210.
95 3852075 Plug, intake manifold
96 3853558 Bolt, bracket to head
97 3856449 Fitting, reservoir
98 3857340 Fitting, pcv valve
