EVINRUDE-JOHNSON 3852498 Nut, Pump To Bracket, Rear

Write a Review
$2.44
SKU:
3852498
Schematic Object Key:
43

EVINRUDE-JOHNSON 3852498 Nut, Pump To Bracket, Rear

$2.44

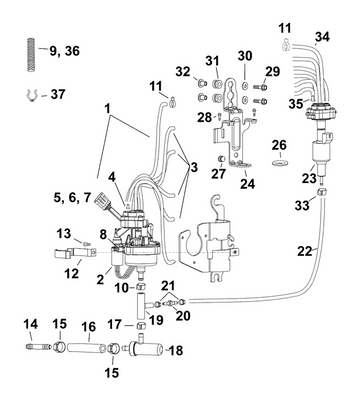

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3852498 Nut, Pump To Bracket, Rear

Schematic Object Key : 43

Replacement: This part (3852498) replaces 0910323.

Product Description: Nut, Pump To Bracket, Rear

Category: STERN DRIVE / 1981 / 260 / 260FTHRCIF 1981 / POWER STEERING GROUP 200-230-260 MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0911316 Retaining ring This part replaces 0313238.
2 0908461 Gear, shaft
3 0908865 Washer
4 0306353 Lkwash,brace to pump
5 3852497 O ring, pressure hose This part replaces 0910321.
6 0909943 Steering shaft
7 0908060 Bow washer, shoulder screw
8 0909974 Spacer
9 0305296 Cotter pin
10 0300721 Washer, cable connector
11 0321232 Retainer washer
12 3852474 Screw, mount to bracket This part replaces 0909682.
13 0909919 Screw, cover
14 0909920 Thrust washer
15 0909921 Thrust washer
16 0909923 Gear
17 0909925 Cluster gear
18 0909926 Thrust washer
19 0909927 Shaft, input gear
20 0982256 Output gear collar assy
21 0308688 Washer
22 3852420 Locknut, throttle lever This part replaces 0900402.
23 3852478 Screw, prop shaft retainer This part replaces 0909937.
24 0910050 Bracket, gearbox to has
25 0909993 Ball seal
26 0910081 Washer
27 0910082 Spring
28 0910083 Washer, friction
29 0303398 Screw, lower This part replaces 0302030.
30 0983400 Hub tiller arm assy This part replaces 0982076.
31 0982392 Cover housing brg. ass'y
32 0983317 Bearing carrier assy This part replaces 0982075.
33 0909991 Bearing
34 0909990 Bearig,cluster gear,cover housing
35 0909929 Bearing, input
36 0909928 Bearing, tiller arm to cover
37 0909930 Seal, tiller arm
38 0300721 Washer, cable connector
39 0909941 Bracket, cylinder to hsg
40 0909942 Bracket, actuator to hsg
41 0909970 Screw, bracket to hsg
42 3852496 Lock washer, bracket to pump This part replaces 0910320.
43 3852498 Nut, pump to bracket, rear This part replaces 0910323.
44 0910324 Screw
45 3852495 Spacer, oil tube clamp This part replaces 0910318.
46 0910317 Bracket, steering pump, front
47 0910316 Bracket, steering pump, rear
48 0982576 Power steering pump
49 0306837 Screw bracket
50 0309336 L'washer, alternator to bracket
51 0303889 .nut
52 0909931 Drag link, tiller arm to cable
53 0909933 Nut, tube to valve
54 0316954 Lockwasher
55 0909932 Tube guide, valve
56 0910027 Nut, steering tube
57 0910056 Tube, steering cable guide
58 0909935 Adj sleeve, steering tube
59 0909971 Belt, alternator
60 0909980 Brace, pwr steering pump
61 0910319 Spacer, brace to steering pump
63 0910322 Screw, brace to pump
64 0982115 Clamp
65 0306981 Lockwasher, brace to pump
66 0301250 Rondelle
67 0306422 Nut
68 0306995 L'washer,nut,tube guide to valve
69 0315077 Locknut, 3 8 24 ss
70 0303293 Lkwash,cylinder clevis,actuator,bracket
71 0982559 Cyl clevis assy
72 0314417 Screw, pump to base
73 0308335 Clamp, coil
74 3853236 Sleeve, ignition coil This part replaces 0308716.
75 3852218 Bracket, oil cooler This part replaces 0383448.
76 0174177 Elbow kit This part replaces 0909985.
77 0983849 Oil cooler This part replaces 0981157.
78 0909251 Plug, cooler
79 3852478 Screw, prop shaft retainer This part replaces 0909937.
80 0909934 Adapter, valve mounting
81 0983732 Actuator valve assy This part replaces 0982083.
82 0908768 Fitting, lubrication
83 0982231 Line assy cyl to valve
84 0910190 Hose, intermediate housing to thermo housing
85 0909977 Hose, cooler to pump, rtn
86 0982573 Hose, valve to pump, pressure
87 0986045 Hose, valve to cooler This part replaces 0909979.
88 0909975 Hose, hsg to oil cooler
89 0320107 Tie strap
90 0979803 Clamp
91 0317943 Nut
92 3852434 Clamp, engine cable This part replaces 0908191.
