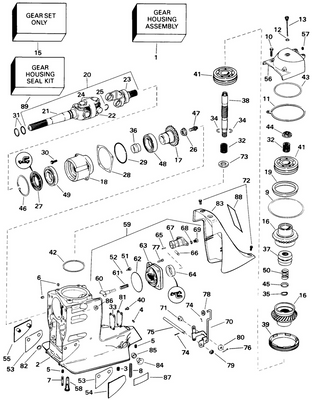

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 9
Product Description: Shim, Upper Cover, 0.003 In.
Category: STERN DRIVE / 1994 / 7.4 / 744DDPMDA 1994 / UPPER GEAR HOUSING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 3850751 | Gear housing assembly | |
2 | 3854915 | Gear housing inserts | This part replaces 3854037. |
3 | 3852541 | Insert, 7 16 14 | |
4 | 3852567 | Insert | |
5 | 3852953 | Insert, exhaust pipe | |
6 | 0910901 | Insert | This part replaces 3852513. |
7 | 3853387 | Gasket, cylinder head | |
8 | 0910953 | Retainer ring, thrust plate | This part replaces 3852516. |
9 | 3852907 | Shim, upper cover, 0.003 in. | |
9 | 3852906 | Shim, upper cover, 0.004 in. | |
9 | 3852908 | Shim, upper cover, 0.005 in. | |
9 | 3852909 | Shim, upper cover, 0.010 in. | |
9 | 3852932 | Shim, upper cover, 0.031 in. | |
10 | 3855472 | Screw, pipe to gimbal | This part replaces 3852898. |
11 | 3852900 | O ring, top cover | |
12 | 0303067 | "o" ring, driveshaft | This part replaces 3852045. |
13 | 3852893 | Indicator oil fill | |
14 | 3854052 | Gear set assembly | |
15 | 3850989 | Gear set, pinion drive gears | |
16 | DRIVE GEAR | ||
17 | PINION GEAR | ||
18 | 3852903 | Bearing carrier, pinion | |
19 | 3852914 | Shim, pinion, preload, 0.003 in. | |
19 | 3852915 | Shim, pinion, preload, 0.004 in. | |
19 | 3852916 | Shim, pinion, preload, 0.005 in. | |
19 | 3852917 | Shim, pinion, preload, 0.010 in. | |
20 | 3853937 | U joint assembly | |
21 | 0912212 | Shaft, yoke | This part replaces 3850815. |
22 | 0912213 | Double center | This part replaces 3850813. |
23 | 3853563 | Stub, yoke | |
24 | 3850812 | U joint | |
25 | 3850757 | Retainer, u joint | |
26 | 3852897 | Retainer, pinion gear | |
27 | 3852901 | Seal, u joint to bearing carrier | |
28 | 3852911 | Shim, bearing carrier, 0.003 in. | |
28 | 3852910 | Shim, bearing carrier, 0.004 in. | |
28 | 3852912 | Shim, bearing carrier, 0.005 in. | |
28 | 3852913 | Shim, bearing carrier, 0.010 in. | |
29 | 0911700 | O ring, propshaft housing | This part replaces 3852531. |
30 | 0341013 | Screw, cover | This part replaces 3852454. |
31 | 3852565 | O ring, u joint | |
32 | 3853942 | Bearing, lower drive gear | |
33 | 3852966 | Spacer, lower drive gear bearing | |
34 | 3853942 | Bearing, lower drive gear | |
35 | 3852966 | Spacer, lower drive gear bearing | |
36 | 3852967 | Washer, driveshaft to lower drive gear | |
37 | 3853450 | Clutch cone | |
38 | 0987747 | Driveshaft bushing, upper | |
39 | 3853656 | Bushing, bearing | |
40 | 3854900 | Housing, drive gear | This part replaces 3852942. |
41 | 3853938 | Bearing, drive gear | |
42 | 3852939 | Shim, drive gear hsg., 0.003 in. | |
42 | 3852940 | Shim, drive gear hsg., 0.004 in. | |
42 | 3852941 | Shim, drive gear hsg., 0.005 in. | |
42 | 3852938 | Shim, drive gear hsg., 0.010 in. | |
43 | 3852935 | Shim, bearing carrier, 0.003 in. | |
43 | 3852936 | Shim, bearing carrier, 0.004 in. | |
43 | 3852937 | Shim, bearing carrier, 0.005 in. | |
43 | 3852934 | Shim, bearing carrier, 0.010 in. | |
44 | 3853440 | Nut, upper driveshaft | |
45 | 3853459 | Shim, upper driveshaft, 0.063 in. | |
45 | 3853460 | Shim, upper driveshaft, 0.067 in. | |
45 | 3853441 | Shim, upper driveshaft, 0.071 in. | |
45 | 3853442 | Shim, upper driveshaft, 0.075 in. | |
45 | 3853443 | Shim, upper driveshaft, 0.079 in. | |
45 | 3853444 | Shim, upper driveshaft, 0.083 in. | |
45 | 3853445 | Shim, upper driveshaft, 0.087 in. | |
45 | 3853446 | Shim, upper driveshaft, 0.091 in. | |
45 | 3853447 | Shim, upper driveshaft, 0.095 in. | |
45 | 3853448 | Shim, upper driveshaft, 0.099 in. | |
46 | 3853301 | Retaining ring, seal | |
47 | 3852896 | Screw, pinion gear retainer | |
48 | 3854636 | Bearing, pinion to inner carrier | |
49 | 3854637 | Bearing, pinion to outer carrier | |
50 | 3853366 | Spring, clutchcone to shaft | |
51 | 3852943 | Bearing carrier, lower | |
52 | 3852899 | Deflector, oil | |
53 | 3852918 | Shim, thrust plate, 0.015 in. | |
54 | 3852919 | Plate, thrust, port | |
55 | 3852920 | Plate, thrust, starboard | |
56 | 3854469 | Cover, upper gearcase, top | This part replaces 3853996. |
57 | 0910901 | Insert | This part replaces 3852513. |
58 | 3854021 | Screen, oil sump | |
59 | 3852568 | Screw, cover | |
60 | 3854061 | Anode, gear housing, front | |
61 | 3853428 | Screw, anchor bracket | |
62 | 3853329 | Locknut, transom plate | |
63 | 3853423 | Bushing, pivot pin | |
64 | 3853424 | Grommet, pivot pin | |
65 | 3852999 | Cover, gearcase, starboard | |
66 | 3850755 | Gear housing seal kit |
