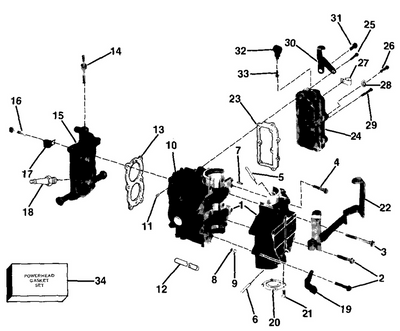

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 6
Product Description: Screw, Adapter
Category: STERN DRIVE / 1995 / 5 / 50FAPHUE 1995 / EXHAUST & COOLING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 3853245 | Adapter, thermostat housing | |
2 | 3853651 | Screw, elbow to manifold | |
3 | 0312797 | Gasket, therm. hsg. to adapter | This part replaces 3852111. |
4 | 0307239 | "o" ring, extension tube 5 inch longer parts | This part replaces 3852071. |
5 | 0383307 | Termostat assembly | This part replaces 3852216. |
6 | 3853471 | Screw, adapter | |
7 | 3850360 | Housing, thermostat | |
8 | 0329654 | Clamp, snap | This part replaces 3852196. |
9 | 3853155 | Screw, manifold to engine | |
10 | 3853430 | Screw, manifold, 5 1 4 in. | This part replaces 3853391. |
11 | 3853401 | Screw, housing to manifold | |
12 | 0311076 | Clamp, oil pump to bracket | This part replaces 3852098. |
13 | 3852300 | Hose, therm. hsg. to pump | |
14 | 3853404 | Nut, exhaust manifold | |
15 | 3853633 | Hose, therm. hsg. to manifold, port | |
16 | 3853420 | Hose, therm. hsg. to manifold, stbd. | |
17 | 3853780 | Clamp, hose | |
18 | 0912627 | Clamp | This part replaces 3852602. |
19 | 0912627 | Clamp | This part replaces 3852602. |
20 | 3853581 | Hose, cooler to thermostat | |
21 | 3852456 | Gasket, adapter to intake | |
22 | 3852476 | Cap, manifold | |
23 | 0912627 | Clamp | This part replaces 3852602. |
24 | 3852604 | Clamp, exhaust | |
25 | 3852604 | Clamp, exhaust | |
26 | 3853434 | Stud, manifold | |
27 | 3855472 | Screw, pipe to gimbal | This part replaces 3852898. |
28 | 3850794 | Exhaust pipe | |
29 | 3850496 | Gasket, elbow | |
30 | 3850422 | Clamp, water hose inlet | |
31 | 3852331 | Hose, gimbal to water pump | |
32 | 0913663 | Pin exhaust flap | This part replaces 3852753. |
33 | 3853566 | Bushing, pin | |
34 | 3852649 | Bracket, center lift | |
35 | 3855269 | Elbow, exhaust, stbd | |
35 | 3855271 | Elbow, exhaust, port | |
36 | 3853864 | Exhaust seal assy | |
37 | 3853390 | Screw, pulley to pump | |
38 | 3853609 | Exhaust pipe, upper | |
38 | 3853615 | Exhaust pipe, upper | |
39 | 3854187 | Pulley, water pump | |
40 | 3853608 | Hose, manifold to pipe | |
41 | 3852741 | Hose, exhaust | |
42 | 3853796 | Water pump | |
43 | 3850596 | Gasket, water pump plate | |
44 | 3852824 | Gasket, water pump | |
45 | 3852347 | Manifold, exhaust | |
46 | 3853598 | Elbow, hose to reservoir | |
47 | 3853787 | Sending unit, temperature | |
48 | 3852312 | Bracket, water pump | |
49 | 3852348 | V belt, water pump | |
50 | 3850633 | Hose, thermostat to valve | |
51 | 0310439 | Clamp, battery cable | This part replaces 3852088. |
52 | 3850654 | Hose, reservoir to valve | |
53 | 3850666 | Valve, anti siphon | |
54 | 0320107 | Tie strap | This part replaces 3852158. |
55 | 3853326 | Screw, bracket to engine | |
56 | 3853397 | Screw, bracket to engine | |
57 | 3853713 | Belt, alternator pulley | |
58 | 3852332 | Hose, water pump to reservoir | |
58 | 3855120 | Hose, water pump to cooler | |
59 | 0912627 | Clamp | This part replaces 3852602. |
60 | 3851623 | Water pump | |
61 | 3853742 | Gasket, manifold to engine | |
62 | 0306283 | Washer, starter spindle | This part replaces 3852054. |
