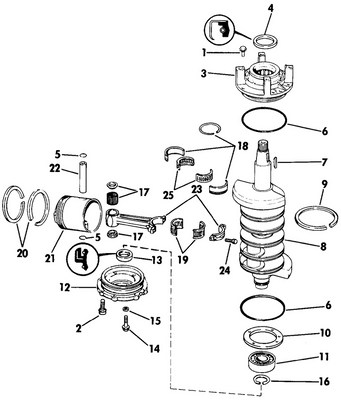

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2A
Product Description: Ring Set, .030 O.S.
Category: JOHNSON / 1973 / 20 / 20R73A 1973 / CRANKSHAFT & PISTON
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0385338 | Piston, standard | |
2 | 0385349 | Ring set, standard | |
1A | 0385348 | Piston, .030 o.s. | |
2A | 0385350 | Ring set, .030 o.s. | |
3 | 0304691 | Wrist pin | |
4 | 0302577 | Retaining ring | |
5 | 0378251 | Bearing set, needle, wrist pin | |
6 | 0383462 | Connecting rod assembly | |
7 | 0202967 | Screw | |
8 | 0383724 | Needle set | |
9 | 0383727 | Retainer set | |
10 | 0303278 | Suport, armature plate | |
11 | 0332070 | Screw, retaining plate | This part replaces 0304442. |
12 | 0303277 | Retaining ring | |
13 | 0318488 | Cam, magneto | |
14 | 0377528 | Roller bearing seal assembly, upper | |
15 | 0305987 | Seal | |
16 | 0315286 | Crankshaft | |
17 | 0120395 | Key | |
18 | 0378838 | Reatiner needles, center bearing | |
19 | 0309010 | Sleeve, split, center bearing | |
20 | 0304732 | Thrust washer | |
21 | 0375763 | Bearing, roller, lower | |
22 | 0302537 | "o" ring, lower bearing | |
23 | 0302540 | "o" ring, carbon | |
24 | 0302538 | Carbon seal | |
25 | 0302594 | Clamp | |
26 | 0302539 | Spring | |
27 | 0303801 | Wahser, lower | |
28 | 0302536 | Retaing ring | |
29 | 0302537 | "o" ring, lower bearing |
