EVINRUDE-JOHNSON 3853823 Lead Assy., Cylinders #4 & 8

Write a Review
$14.99
SKU:
3853823
Schematic Object Key:
4

EVINRUDE-JOHNSON 3853823 Lead Assy., Cylinders #4 & 8

$14.99

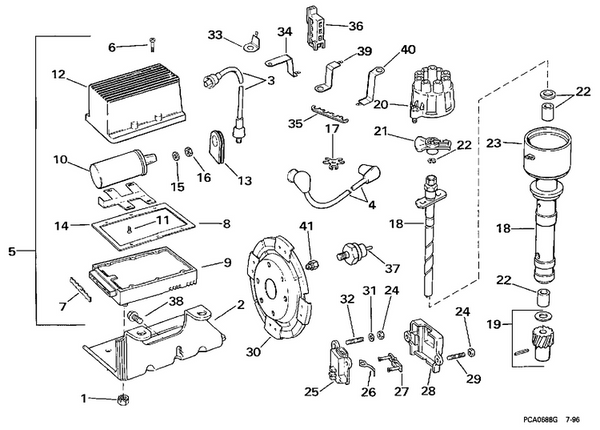

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3853823 Lead Assy., Cylinders #4 & 8

Schematic Object Key : 4

Product Description: Lead Assy., Cylinders #4 & 8

Category: STERN DRIVE / 1997 / 7.4 / 74FGPLKD 1997 / IGNITION - 4V MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0311375 Nut This part replaces 3852099.
2 3853377 Bracket, ignition module
3 3856271 Lead, coil to distributor
4 3856261 Lead, distributor to 1
4 3856262 Lead, distributor to 2
4 3853823 Lead assy., cylinders 4 8
4 3853820 Lead assy., cylinder 3 6
4 3856260 Lead, distributor to 6
4 3856258 Lead, distributor to 7
4 3853821 Lead assy., cylinders 5 6
5 3854230 Module assy., ignition
6 3853298 Screw, ignition module
7 3853299 Gasket, connector
8 3853297 Gasket, ignition module
9 MODULE, Ignition
10 3853548 Coil, ignition module
11 3853552 Screw, coil bracket
12 3853553 Cover, ignition module
13 3853554 Grommet, ignition module
14 3853555 Bracket, ignition module
15 0120052 . . lockwasher, solenoid screw This part replaces 3852001.
16 0306556 Nut, leaf screw This part replaces 3852064.
17 3852492 Retainer, 3 wire
18 3854128 Distributor
19 3853888 Gear, collar parts pkg.
20 3853815 Cap assy., distributor
21 3854134 Rotor
22 3853795 Bearing
23 3853812 Bracket
24 0311375 Nut This part replaces 3852099.
25 3853990 Sensor, crankshaft
26 3853259 Spring, sensor locator
27 3853260 Locator, ignition sensor
28 3852828 Cover, sensor
29 3853300 Stud, sensor cover
30 3852952 Ring, ignition timing
31 0328702 Washer This part replaces 3852183.
32 3853300 Stud, sensor cover
33 3856052 Bracket, lead retainer
34 3856064 Bracket, spark plug leads
35 3852491 Retainer, 4 wire
36 3852619 Retainer
37 3853956 Sensor, engine knock
38 3853428 Screw, anchor bracket
39 3856066 Bracket, spark plug leads
40 3856067 Bracket, spark plug leads
41 3854388 Adapter, knock sensor
