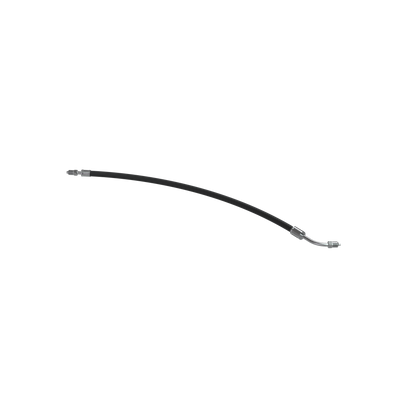

EVINRUDE-JOHNSON 3853855 Oil Line, Starboard, Up

Write a Review
$78.99
SKU:
3853855
Schematic Object Key:
63

EVINRUDE-JOHNSON 3853855 Oil Line, Starboard, Up

$78.99

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 3853855 Oil Line, Starboard, Up

Schematic Object Key : 63

Product Description: Oil Line, Starboard, Up

Category: STERN DRIVE / 1998 / 5.7 / 57FCPBYC 1998 / POWER TRIM & TILT -- 3868413 MODEL TRANSOM MOUNT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 3855745 Manifold motor assy.
2 0320107 Tie strap This part replaces 3852158.
3 0307450 "o" ring, large This part replaces 3852073.
4 0986280 Motor assy This part replaces 3853945.
5 0986281 Relay circuit breaker assy This part replaces 3853946.
6 3852508 O ring, reservoir
7 0986535 Reservoir This part replaces 3853989.
8 0914045 Filter This part replaces 3852974.
9 0914047 Plug, fill hole This part replaces 3852976.
10 0914048 Screw, reservoir to manifold This part replaces 3852977.
11 3854038 Cable assy
12 0510827 Ring terminal This part replaces 3852228.
13 0510780 8 ring termianl This part replaces 3852226.
14 0204363 Terminal, ring This part replaces 3852038.
15 0513664 Connector This part replaces 3852250.
16 0911729 O ring This part replaces 3852537.
17 0513667 Terminal This part replaces 3852253.
18 0513665 Plug This part replaces 3852251.
19 3853943 Manifold pump assy
20 3856111 Valve, thermal relief
21 0911965 Spring, pump relief This part replaces 3852578.
22 0914054 Screw, pump to manifold This part replaces 3852983.
23 0914055 O ring, valve seat This part replaces 3852984.
24 0914056 Ball, piston, pump control This part replaces 3852985.
25 0914057 Ball piston, pump control This part replaces 3852986.
26 0914058 Piston pump control This part replaces 3852987.
27 0914059 O ring, piston, pump control This part replaces 3852988.
28 0914060 Spring, valve core, trim up This part replaces 3852989.
29 0914061 O ring, valve seat, trim up This part replaces 3852990.
30 0914062 Seat, valve core, trim up This part replaces 3852991.
31 0160084 Ball This part replaces 3852023.
32 3856110 O ring, thermal relief
33 0983786 Valve core seal This part replaces 3853803.
34 0986283 Check valve assy This part replaces 3853947.
35 0986284 Valve core seal assy This part replaces 3853948.
36 0914046 Spring, check valve This part replaces 3852975.
37 0321163 O ring, motor This part replaces 3852166.
38 0914053 Drive, pump This part replaces 3852982.
39 0914052 Screw, terminal This part replaces 3852981.
40 0914050 Screw, terminal This part replaces 3852979.
41 0914051 Screw, terminal This part replaces 3852980.
43 3854031 Cable assy., trim tilt
44 0513663 Connector This part replaces 3852249.
45 3852527 Ring terminal
46 0513665 Plug This part replaces 3852251.
47 0513666 Terminal This part replaces 3852252.
48 0204039 10 ring terminal This part replaces 3852036.
49 3853421 Spring, ground
50 3853825 Oil line assy., pump to manifold
51 0308825 Screw roller This part replaces 3852081.
52 3855648 Applique, tilt cylinder
53 3853422 Pivot pin, tilt cylinder
54 3853329 Locknut, transom plate This part replaces 3852648.
55 3852568 Screw, cover
56 3852378 Cover, tilt cylinder
57 3853424 Grommet, pivot pin
58 3852573 Washer, pivot pin
59 3852579 Retainer, oil line
60 3852681 Retainer, cover
61 3853423 Bushing, pivot pin
62 3853854 Oil line, starboard, down
62 3853856 Oil line, port, down
63 3853855 Oil line, starboard, up
63 3853857 Oil line, port, up
64 3852414 Cylinder assy.
65 0985060 Seal kit This part replaces 3854247.
3854248 3854248 Spacer, tilt limit
66 0321117 O ring, cam follower This part replaces 3852165.
67 0329241 Washer This part replaces 3852193.
68 0985394 Ground wire, 2 loop This part replaces 3853849.
69 0908158 Screw, anode This part replaces 3852050.
70 3852958 Cap, pivot shaft
71 3852581 Lag screw
72 3853848 Ground wire, 3 loop
73 3855266 Brush kit, trim tilt motor
74 3854397 Seal kit, valve body
