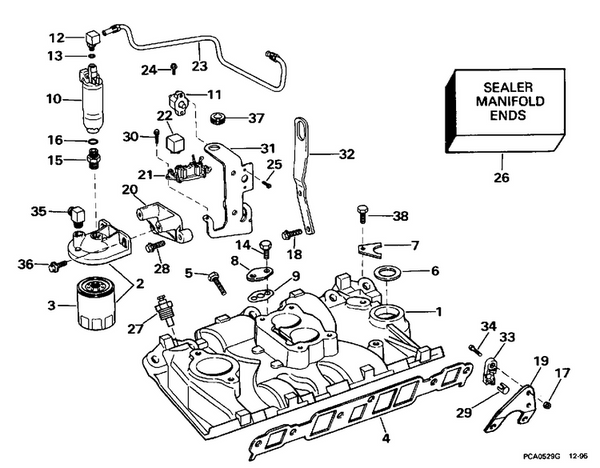

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 23
Product Description: Fuel Line, Fuel Pump To Carb.
Category: STERN DRIVE / 1996 / 4.3 / 432BPNCS 1996 / INTAKE MANIFOLD & FUEL PUMP - 2V & 4V MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 3850380 | Manifold, intake | |
| 1 | 3855805 | Manifold, intake | |
| 1 | 3850381 | Intake manifold | |
| 1 | 3855806 | Intake manifold | |
| 2 | 3850861 | Cover fuel filter assy | |
| 3 | 0502906 | Filter, fuel | |
| 4 | 3850379 | Gasket set, intake manifold | |
| 4 | 3855807 | Gasket set, intake manifold | |
| 5 | 3856129 | Bolt, intake manifold, short | This part replaces 3853196. |
| 5 | 3855983 | Bolt, intake manifold, long | This part replaces 3852580. |
| 6 | 0312780 | Gasket, dist. to manifold | This part replaces 3852109. |
| 7 | 3852108 | Clamp, distributor | |
| 8 | 3853644 | Plate | |
| 9 | 3850378 | Gasket, plate | |
| 10 | 3854620 | Fuel pump assy. | |
| 11 | 3854238 | Circuit breaker, fuel pump | |
| 12 | 3853545 | Fitting, fuel pump | |
| 13 | 3850820 | O ring | |
| 14 | 3853167 | Bolt, water pump | |
| 15 | 3853493 | Fitting, filter outlet to pump | |
| 16 | 0915352 | O ring, water sensor | This part replaces 3850819. |
| 17 | 0313022 | Locknut, double ended bolt | This part replaces 3852118. |
| 18 | 3853557 | Screw, brace to alterntr bracket | |
| 19 | 3850221 | Bracket, throttle cable | |
| 19 | 3855818 | Bracket, throttle cable | |
| 20 | 3853310 | Bracket, fuel filter | |
| 21 | 0334191 | Bracket | This part replaces 3852210. |
| 22 | 0586224 | Relay assy. | This part replaces 3850403. |
| 23 | 3854122 | Fuel line, fuel pump to carb. | |
| 23 | 3855904 | Fuel line, pump to carb. | |
| 23 | 3854123 | Fuel line, fuel pump to carb. | |
| 24 | 0329859 | Screw | This part replaces 3852197. |
| 25 | 3853620 | Screw, circuit breaker | |
| 26 | 3853169 | Sealer, manifold ends | |
| 27 | 3852029 | Sender, water temperature | |
| 28 | 3853326 | Screw, bracket to engine | |
| 29 | 3852019 | Trunnion, s.a.e. cable | |
| 30 | 0333677 | Screw | This part replaces 3852208. |
| 31 | 3856438 | Bracket, fuel filter pump | This part replaces 3853544. |
| 32 | 3853311 | Bracket, lift | |
| 33 | 3850266 | Anchor block | |
| 34 | 0303459 | Ecrew,exhaust cover,1 1 2"long | This part replaces 3852048. |
| 35 | 3852013 | Elbow, filter inlet | |
| 36 | 3853266 | Bolt, distributor | |
| 37 | 0909988 | Bushing, tilt trim cable | This part replaces 3852481. |
| 38 | 3853325 | Screw, clamp to engine |
