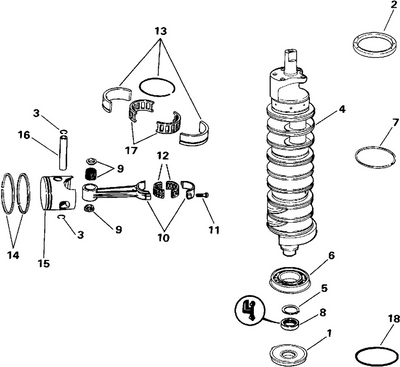

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 3
Product Description: Piston Ring Set, 0.030 O.S.
Category: STERN DRIVE / 1994 / 7.4 / 744DJPMDA 1994 / CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 3854091 | Crankcase assy. | |
2 | 3853517 | Piston pin, standard | |
2 | 3853518 | Piston pin, 0.001 o.s. | |
2 | 3853519 | Piston pin, 0.030 o.s. | |
2 | 3855994 | Piston pin, standard | This part replaces 3855036. |
2 | 3855037 | Piston pin, 0.001 o.s. | |
2 | 3857482 | Piston pin, 0.030 o.s. | This part replaces 3855038. |
3 | 3854120 | Piston ring set, standard | |
3 | 3854119 | Piston ring set, 0.030 o.s. | |
3 | 3855039 | Piston ring set, standard | |
3 | 3855040 | Piston ring set, 0.030 o.s. | |
4 | 3853113 | Dowel pin | |
5 | 3855973 | Bearing, camshaft, 1 | This part replaces 3853345. |
6 | 3855975 | Bearing, camshaft, 2, 5 | This part replaces 3853346. |
7 | 3855974 | Bearing, camshaft, 2, 5 | This part replaces 3853347. |
8 | 0311376 | Core plug, side | This part replaces 3852100. |
9 | 3853348 | Plug, camshaft bearing, rear | |
10 | 3852471 | Plug | |
11 | 3852471 | Plug | |
12 | 3853344 | Dowel pin, cylinder head | |
13 | 3855972 | Pin, camshaft gear | This part replaces 3853213. |
14 | 3853541 | Bearing assy., rear, standard | |
15 | 3855982 | Stud, bearing cap | This part replaces 3853529. |
16 | 3853500 | Bolt, bearing cap, outer | |
16 | 3853501 | Bolt, bearing cap, inner | |
17 | 3853542 | Bearing, standard | |
18 | 3854079 | Connecting rod assy. | |
19 | 3853148 | Nut, connecting rod | |
20 | 3853481 | Bolt, connecting rod | |
21 | 3855985 | Bearing, rod, standard | This part replaces 3853540. |
22 | 3853357 | Washer, oil pan baffle | |
23 | 3853528 | Oil seal, crankshaft, rear | |
24 | 3853509 | Crankshaft | |
25 | 3853200 | Pin, flywheel | |
26 | 3853538 | O ring, rear main cap | |
27 | 0122845 | Washer, eyelet to o ring | This part replaces 3852007. |
28 | 3853674 | O ring, oil drain | |
29 | 3852694 | Retainer, oil drain | |
30 | 3857474 | Damper assy. | This part replaces 3854092. |
31 | 3853506 | Chain, camshaft timing | |
32 | 3854112 | Adapter valve assy. | |
33 | 3853359 | Bolt, pump to block | |
34 | 0311072 | Connector, oil adaptor | This part replaces 3852097. |
35 | 3853508 | Cover, timing | |
36 | 3853360 | Seal, front cover | |
37 | 3853512 | Gasket, front cover | |
38 | 3855034 | Camshaft assy. | |
39 | 3855972 | Pin, camshaft gear | This part replaces 3853213. |
40 | 3852465 | Bushing | |
41 | 3852441 | Screw lock washer | |
42 | 3852610 | Tee, oil pressures | |
43 | 3855112 | Fitting, oil drain | This part replaces 3853664. |
44 | 3853523 | Sprocket, camshaft | |
45 | 3854093 | Flywheel | |
46 | 3853207 | Gear, flywheel | |
47 | 3851981 | Gasket, fitting to oil pan | This part replaces 3853469. |
48 | 3853962 | Coupling | |
49 | 3853273 | Locknut, coupler | |
50 | 3853274 | Stud, coupler | |
51 | 3853173 | Bolt, camshaft sprocket | |
52 | 3855035 | Oil pump screen | This part replaces 3854102. |
52 | 3855035 | Oil pump screen | |
53 | 3853514 | Gasket, oil pump | |
54 | 3853482 | Shaft, shaft gear to oil pump | |
55 | 3853527 | Key, woodruff | |
56 | 3853134 | Nut, oil pan baffle | |
57 | 3856031 | Sprocket, crankshaft | This part replaces 3853522. |
58 | 3853359 | Bolt, pump to block | |
59 | 3850474 | Gauge, oil level | |
60 | 3854494 | Petcock, water drain | |
61 | 0379948 | Screw, retainer to adapter | This part replaces 3852215. |
62 | 3854090 | Baffle, oil pan | |
63 | 3853510 | Gasket set, oil pan | |
64 | 3852179 | Screw, oil pan seal | |
65 | 0328735 | Washer, screw, ball joint | This part replaces 3852188. |
66 | 3853800 | Oil pressure sender | |
67 | 3853358 | Screw, lifter guide | |
68 | 3852611 | Plug, oil pan hole | |
69 | 3854180 | Tube assy., oil drain | |
70 | 3854103 | Oil pan | |
71 | 3853199 | Retainer, distributor to oil pump |
