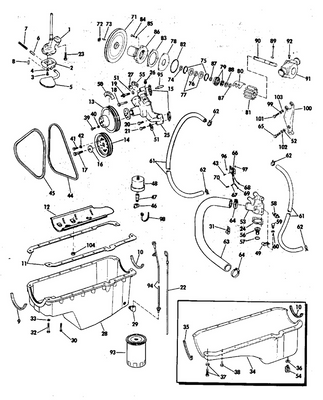

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 88
Product Description: Bracket, Fuel Filter & Water Pump
Category: STERN DRIVE / 1996 / 3 / 302CMNCS 1996 / COOLING & OILING
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0328724 | Screw | This part replaces 3852053. |
2 | 0313416 | Gasket, thermostat | This part replaces 3852120. |
3 | 0314809 | Gasket | This part replaces 3852127. |
4 | 3854254 | Housing plug assy | |
5 | 3853653 | Tee, water to thermostat | |
6 | 3853673 | Eccentric, fuel pump, outer | |
7 | 3853397 | Screw, bracket to engine | |
8 | 3855472 | Screw, pipe to gimbal | This part replaces 3852898. |
9 | 3850495 | Gasket, elbow to manifold | |
10 | 3852604 | Clamp, exhaust | |
11 | 3852029 | Sender, water temperature | |
12 | 3853799 | Thermostat assy | |
13 | 3854433 | Housing, upper thermostat | |
14 | 3853672 | Plug, thermostat housing | |
15 | 0912627 | Clamp | This part replaces 3852602. |
16 | 0311076 | Clamp, oil pump to bracket | This part replaces 3852098. |
17 | 3852289 | Hose, water pump | |
18 | 3853255 | Hose, thermostat housing | |
19 | 0330151 | Cable clamp, filter | This part replaces 3852199. |
20 | 3852434 | Clamp, engine cable | |
21 | 3852336 | Belt, alternator | |
21 | 3853536 | Belt, alternator | |
22 | 0122845 | Washer, eyelet to o ring | This part replaces 3852007. |
23 | 3854045 | Manifold | |
24 | 0315712 | Core plug | This part replaces 3852134. |
25 | 3852538 | Elbow, exhaust manifold | |
26 | 3855730 | Bracket, throttle control | |
27 | 0313022 | Locknut, double ended bolt | This part replaces 3852118. |
28 | 3852019 | Trunnion, s.a.e. cable | |
29 | 3854494 | Petcock, water drain | |
30 | 3853373 | Stud, carb. to adaptor | |
31 | 3852334 | Hose, tee to thermostat | |
32 | 3852741 | Hose, exhaust | |
33 | 3852694 | Retainer, oil drain | |
34 | 3854015 | Oil pan | |
35 | 3852331 | Hose, gimbal to water pump | |
35 | 3855438 | Hose, cooler to water pump | |
36 | 3853419 | Screw, clamp, front | |
37 | 3852595 | Bolt, fuel rail | |
38 | 3854215 | Tube, oil drain | |
39 | 0311069 | Gasket, housing | This part replaces 3852096. |
40 | 3853256 | Gasket, manifold to head | |
41 | 3853780 | Clamp, hose | |
42 | 3853783 | Cap bead chain assy | |
43 | 3855112 | Fitting, oil drain | |
44 | 3852426 | Seal, cap oil drain tube | |
45 | 0320107 | Tie strap | This part replaces 3852158. |
46 | 0306501 | Bolt, water pump | This part replaces 3852063. |
47 | 3853167 | Bolt, water pump | |
48 | 3857798 | Elbow, exhaust | This part replaces 3851227. |
49 | 3854017 | Water pump | |
50 | 3853342 | Gasket, water pump | |
51 | 3853430 | Screw, manifold, 5 1 4 in. | |
52 | 3853431 | Screw, manifold, 6 1 4 in. | |
53 | 3853390 | Screw, pulley to pump | |
54 | 3853266 | Bolt, distributor | |
55 | 3853173 | Bolt, camshaft sprocket | |
56 | 3853133 | Support assy | |
57 | 3854014 | Pipe screen assy | |
58 | 3853219 | Screw, suction pipe bracket | |
59 | 3853843 | Oil pump | |
60 | 3852658 | Gasket, pump cover | |
61 | 3856448 | Exhaust pipe | |
62 | 3855517 | Bushing, pin | |
63 | 0913663 | Pin exhaust flap | This part replaces 3852753. |
64 | 3853864 | Exhaust seal assy | |
65 | 3850266 | Anchor block | |
66 | 3852401 | Pulley, water pump | |
67 | 3851981 | Gasket, fitting to oil pan | |
68 | 3853343 | Gasket, oil pan | |
69 | 3853674 | O ring, oil drain | |
70 | 3853168 | Nut, camshaft sprocket stud | |
71 | 3853378 | Stud, exhaust manifold | |
72 | 3853404 | Nut, exhaust manifold | |
73 | 0306325 | . . lockwasher, solenoid screw | This part replaces 3852055. |
74 | 3853171 | Screw, oil pan, front | |
75 | 0912627 | Clamp | This part replaces 3852602. |
76 | 3853628 | Restrictor, high rise | |
77 | 3852333 | Hose, water pump to tee | |
78 | 3853794 | Clamp, anti siphon hose | |
79 | 3852335 | Hose, tee to high rise | |
80 | 3853373 | Stud, carb. to adaptor | |
81 | 0316355 | But, carburetor mounting | This part replaces 3852142. |
82 | 0202893 | "o" ring, drive shaft | This part replaces 3852033. |
83 | 0303459 | Ecrew,exhaust cover,1 1 2"long | This part replaces 3852048. |
84 | 3857794 | Water pump | This part replaces 3855079. |
84 | 3857794 | Water pump | This part replaces 3851982. |
85 | 3850268 | Belt, water pump | |
86 | 3853155 | Screw, manifold to engine | |
87 | 3850422 | Clamp, water hose inlet | |
88 | 3855078 | Bracket, fuel filter water pump | |
89 | 0320397 | Washer in tiller kit .390 i.d. x .750 o.d. x 0.120 in | This part replaces 3852162. |
90 | 3853326 | Screw, bracket to engine | |
91 | 0310928 | Clamp, steering bracket | This part replaces 3852092. |
92 | 3853419 | Screw, clamp, front |
