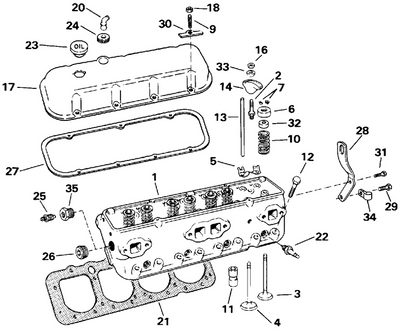

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 7
Product Description: Key, Valve Stem
Category: STERN DRIVE / 1997 / 5.7 / 57FCPLKD 1997 / CYLINDER HEAD - 57FCPLKD MODELS ONLY
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 3856929 | Cylinder head assy. | |
2 | 3853146 | Stud, 0.003 in. o.s. | |
2 | 3853147 | Stud, 0.013 in. o.s. | |
3 | 3855810 | Valve, intake, standard | |
4 | 3855808 | Valve, exhaust, 0.030 in. o.s. | |
4 | 3855809 | Valve, exhaust, 0.030 in. o.s. | |
5 | 3853311 | Bracket, lift | |
6 | 3855816 | Cap, intake valve | |
6 | 3853229 | Rotator, exhaust valve | |
7 | 3855823 | Key, valve stem | |
8 | 3854956 | Seal, valve stem | |
9 | 3853145 | Shield, valve stem | |
10 | 3855815 | Spring damper | |
11 | 3856127 | Lifter, valve | |
12 | 3856123 | Bolt, cylinder head, 3 3 4 in. | |
12 | 3856122 | Bolt, cylinder head, 3 in. | |
12 | 3856124 | Bolt, cylinder head, 1 3 4 in. | |
13 | 3856118 | Push rod | |
14 | 3853158 | Arm, valve rocker | |
15 | 3853141 | Nut, rocker arm | This part replaces 3853004. |
16 | 3856139 | Guide, valve lifter | |
17 | 3856927 | Valve cover, port | |
17 | 3856928 | Valve cover, starboard | |
18 | 3853325 | Screw, clamp to engine | |
19 | 3856135 | Screw, valve cover | |
20 | 0311545 | Elbow | This part replaces 3852104. |
20 | 3856215 | Pcv valve | |
21 | 3853380 | Gasket, cylinder head | |
22 | 3854399 | Spark plug, champion rs12yc | |
23 | 3854008 | Oil fill cap | |
24 | 0311543 | Grommet | This part replaces 3852103. |
26 | 3852471 | Plug | |
27 | 3852687 | Gasket, valve cover | |
28 | 3855814 | Seal, valve stem, intake | |
28 | 3856145 | Seal, valve stem, exhaust |
