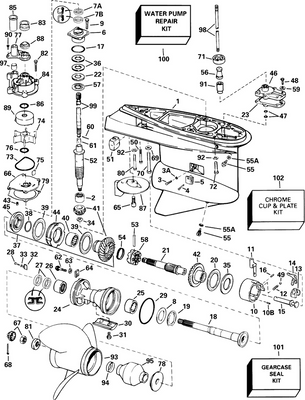

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 3
Product Description: Bearing, Reverse Gear
Category: EVINRUDE / 1975 / 15 / 15554C 1975 / GEARCASE GROUP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0437774 | Bearing housing, bearing seal | This part replaces 0386161. |
2 | 0321481 | .seal, bearing housing to propeller shaft | This part replaces 0319256. |
3 | 0386125 | Bearing, reverse gear | |
4 | 0386231 | Bearing | |
5 | 0318877 | Cradle, clutch dog | |
6 | 0304071 | . screw, gearcase | |
7 | 0308627 | "o" ring, bearing housing to gearcase | |
8 | 0318861 | ,gear,reverse | |
9 | 0318847 | Propeller shaft | |
10 | 0316505 | Spring, detent | |
11 | 0316506 | Ball, detent | |
12 | 0316501 | Shift, clutch dog | |
13 | 0388416 | Shifter lever yoke assy. | This part replaces 0386148. |
14 | 0308376 | Pivot pin, shift lever | |
15 | 0386076 | Gear bushing assy., forward | |
16 | 0386186 | Roller bearing, forward gear | |
17 | 0322341 | Pinion, driveshaft | This part replaces 0318862. |
18 | 0318800 | Thrust washer, lower pinion bearing | |
19 | 0112840 | Thrust bearing, pinion | |
20 | 0318699 | Thrust washer, upper pinion bearing | |
21 | 0438617 | Gearcase assy, | This part replaces 0386017. |
22 | 0386014 | Bearing assembly, driveshaft | |
23 | 0318874 | Sleeve, bearing driveshaft | |
24 | 0321480 | Seal, driveshaft | This part replaces 0318973. |
25 | 0301877 | O ring shift rod | |
26 | 0304765 | Bushing, shift rod | |
27 | 0306407 | Locckwasher,cover latch | |
28 | 0386071 | Bearing assy., pinion to gearcase | |
29 | 0318991 | .screen, water intake | |
30 | 0307551 | Screw | |
31 | 0311598 | Seal | |
32 | 0318966 | Thr bushing, prop. to shaft | |
33 | 0324334 | Screw | This part replaces 0302820. |
34 | 0319126 | Screw, muffler, upper | This part replaces 0313828. |
35 | 0319085 | Seal | |
36 | 0318972 | Seal, oil | |
37 | 0302497 | Grommet, lower water tube | |
38 | 0394711 | Chrome pump kit | This part replaces 0318875. |
39 | 0394711 | Chrome pump kit | This part replaces 0318999. |
40 | 0386084 | Impeller | |
41 | 0300611 | . dowel, bearing | |
42 | 0318995 | Plate, impeller housing | |
43 | 0318845 | Driveshaft, standard | |
44 | 0552906 | Cotter pin, upper pivot | |
45 | 0318971 | Nut | |
46 | 0323942 | Spacer | This part replaces 0318959. |
47 | 0318992 | Shift rod lower, standard | |
48 | 0304024 | Screw | |
49 | 0303794 | Connector | |
50 | 0331025 | Screw | This part replaces 0308744. |
51 | 0778772 | Rh alum. 9 1 2 x 10 | This part replaces 0386118. |
51 | 0386669 | Propeller and bushing assembly 10 x 5 | |
51 | 0387389 | Propeller, 9 1 4 x 8 al | |
51 | 0386670 | Propeller and bushing assembly 9 x 10 | |
52 | 0332395 | Converging ring | This part replaces 0319484. |
54 | 0303067 | "o" ring, driveshaft | |
35 | 0319085 | Seal | |
43 | 0318846 | Driveshaft,long 5" longer parts | |
47 | 0319298 | Rod,shift | |
48 | 0304024 | Screw | |
49 | 0303794 | Connector | |
53 | 0301551 | Washer, lock | |
54 | 0303067 | "o" ring, driveshaft | |
56 | 0331025 | Screw | This part replaces 0308744. |
57 | 0319340 | Extension | |
58 | 0331152 | Extension | This part replaces 0319314. |
59 | 0202893 | "o" ring, drive shaft | |
60 | 0320025 | Extension | |
61 | 0394711 | Chrome pump kit | This part replaces 0386697. |
62 | 0394711 | Chrome pump kit | This part replaces 0386685. |
