EVINRUDE-JOHNSON 386473 Bearing Assembly

Write a Review
$19.99
SKU:
386473
Schematic Object Key:
50

EVINRUDE-JOHNSON 386473 Bearing Assembly

$19.99

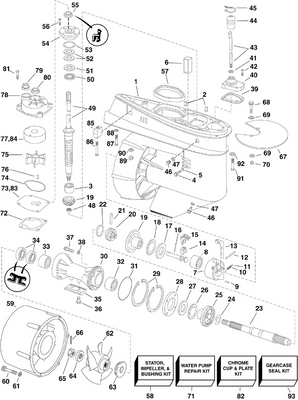

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 386473 Bearing Assembly

Schematic Object Key : 50

Product Description: Bearing Assembly

Category: EVINRUDE / 1979 / 35 / 35902A 1979 / GEARCASE - 25

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0306394 Cotter pin
2 0390294 Nut, propeller This part replaces 0388881.
3 0389067 Propeller 9 1 4 x 7
3 0389068 Propeller, 9 x 10
3 0389068 Propeller, 9 x 10
3 0388883 Propeller, 9 1 4 x 11 al
3 0389321 Propeller, 9 1 4 x 12 sst
3 0389393 Propeller 9 1 4 x 9 sst
4 0389281 Prop bushing assy.
5 0308743 Screw, injector to manifold
6 0304024 Screw This part replaces 0323636.
7 0301551 Washer, lock
8 0303794 Connector
9 0322077 Water tube, standard
10 0302497 Grommet, lower water tube
11 0328702 Washer This part replaces 0318452.
12 0324960 Screw, impeller housing
13 0330560 Housing, impeller This part replaces 0389644.
14 0321786 Seal z
15 0341650 Driveshaft, standard This part replaces 0324778.
16 0300611 . dowel, bearing
17 0324447 Plate, impeller housing
18 0303587 Scres,cover plate This part replaces 0302509.
19 0302505 Cover, water by pass
20 0306376 Cotter pin
21 0302504 Pin, connector, shift rod
22 0375755 Lever pin assy.
23 0325014 Cradle, clutch dog
24 0303098 Rod, lower shfit, standard
25 0389045 Gearcase head assy
26 0321786 Seal z
27 0321787 Seal, oil, prop shaft, outer
28 0316504 Gear, reverse
29 0303997 Bushing, reaverse gear
30 0301884 Washer, thrust
31 0325013 Shifter, clutch dog
32 0323294 Shaft, propeller
33 0389469 Gear bushing, forward
34 0389472 Bearing, forward gear
35 0324457 Gear, pinion, driveshaft
36 0432810 Gearcase bearing assy. This part replaces 0389700.
37 0304764 . gasket, bushing
38 0376856 Bearing assembly, pinion
39 0321786 Seal z
40 0304765 Bushing, shift rod
41 0301877 O ring shift rod
42 0300314 . plug, intake screen
43 0302757 . screen, water intake
44 0307551 Screw
45 0311598 Seal
46 0308376 Pivot pin, shift lever
47 0307853 O ring
48 0330562 Screw, gearcase This part replaces 0304070.
49 0300611 . dowel, bearing
50 0386473 Bearing assembly
51 0317728 . magnet, gearcase
52 SEAL, Gearcase
53 0388027 Thrust bearing, pinion
54 0322688 Thrust washer, bearing
55 0319667 Thrust washer
56 0324459 Thrust washer, foreward gear
57 0389470 Thrust bearing
58 0325053 Spring, detent
59 0316506 Ball, detent
60 0321921 "o"ring,gearcase head
61 0329390 Gasket, impeller housing This part replaces 0324446.
62 0360633 Cup, impeller housing This part replaces 0323008.
63 0324449 Gasket , impeller housing plate
64 0330060 Stud This part replaces 0321926.
65 0552938 Locking nut, 3 8 x 24
66 0307708 Lock washer, mounting This part replaces 0302865.
67 0388702 Impeller assy
24 0303257 Rod, shift, lower, long
0324455 0324455 Spacer, exh. hsg. to imp. hsg
0301967 0301967 O ring
6 0304024 Screw This part replaces 0323636.
7 0301551 Washer, lock
8 0304081 Connector 5 " extension kit
9 0322078 Water tube, long
15 0341649 Driveshaft, long This part replaces 0324779.
64 0330558 Stud, housing to gearcase This part replaces 0321925.
69 0308743 Screw, injector to manifold
70 0327563 Extension. gearcase 5 inch longer parts This part replaces 0322750.
71 0394392 Chrome pump kit This part replaces 0389612.
72 0389611 Water pump repair kit
73 0391019 Heavy duty gear clutch dog kit
