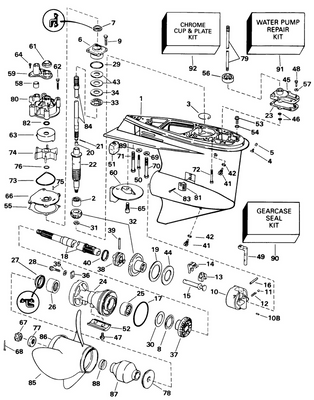

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 88
Product Description: Bushing Assy, Prop, (Std)
Category: EVINRUDE / 1998 / 100 / E100WQXECS 1998 / GEARCASE -- 100WQX MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0438051 | 0438051 | Gearcase assy., complete | |
0439982 | 0439982 | Gearcase assy., complete | |
1 | 5007022 | Gearcase bearing assembly | This part replaces 0438048. |
1 | 5007022 | Gearcase bearing assembly | This part replaces 0439972. |
2 | 0387817 | Bearing, pinion | |
3 | 0338778 | Retaining ring | |
3 | 0324852 | Retaining screw seal | |
3A | 0332584 | Washer, seal ring | |
4 | 0337061 | Screw, water intake screens | |
5 | 0337778 | Screen | |
6 | 0160084 | Ball | |
7 | 0328702 | Washer | |
8 | 0431708 | Anode, bearing housing | |
9 | 0317624 | Screw, driveshaft hsg | |
10 | 0389455 | Bearing hsg assy, fwd gear | |
11 | 0331880 | Pin, housing to gearcase | |
12 | 0911962 | Spring | |
13 | 0334163 | Cradle, shifter | |
14 | 0322938 | Lever, shift | |
15 | 0322941 | Arbre, commande de sens de marche | |
16 | 0328825 | Pin, shift lever | |
17 | 0350271 | Screw | This part replaces 0341541. |
18 | 5004765 | Propeller shaft | This part replaces 0435022. |
19 | 0382408 | Thrust bearing | |
20 | 0389042 | Thrust bearing assembly, foward gear | |
21 | 0333957 | Languette, de retenue | |
22 | 0908158 | Screw, anode | |
23 | 0352165 | Gasket, shift rod cover | This part replaces 0324670. |
24 | 5004257 | Bearing housing seal assy. | This part replaces 0438040. |
25 | 0382407 | Bearing assy, forward gear | |
26 | 0436752 | Bearing, propshaft | |
27 | 0341281 | Seal | |
28 | 0305123 | O ring | |
29 | 0354731 | O ring | This part replaces 0314728. |
30 | 0314731 | Rondelle de butée, engrenage de marche arrière | |
31 | 0314730 | Nut, pinion to driveshaft | |
32 | 0435123 | Gear pinion assy. | |
33 | 0387656 | Butée, arbre d'entraînement | |
34 | 0327656 | Rondelle de butée, arbre d'entraînement | |
35 | 0321008 | Grommet, exh hsg to shift rod | |
36 | 0336565 | Thrust washer | |
37 | 0336574 | Gear, reverse | |
38 | 0337774 | Shifter, clutch dog | |
39 | 0313448 | Pin, clutch dog | |
40 | 0324369 | Spring, clutch dog pin | |
41 | 0318544 | Screw, fill drain | |
42 | 0311598 | Seal | |
43 | 0323362 | Cale, 0,003" 0,07 mm | |
43 | 0323361 | Cale, 0,004" 0,10 mm | |
43 | 0314745 | Cale, 0,005" 0,12 mm | |
44 | 0397566 | Thrust washer, forward gear | |
45 | 5006241 | Couvercle joint, tige de commande de sens de marche | This part replaces 0435482. |
46 | 0318372 | "o" ring, shift rod | |
49 | 0439476 | Bearing housing seal | |
50 | 0329922 | Joint, supérieur | |
50A | 0329923 | Joint, inférieur | |
52 | 0345905 | Driveshaft, lower | This part replaces 0335677. |
53 | 0302325 | Screw, impeller housing | |
54 | 0338504 | Retainer, driveshaft | |
55 | 0311538 | Roll pin, driveshaft | |
56 | 0328743 | Rondelle | |
57 | 0915954 | Detent, shifter | This part replaces 0323946. |
58 | 5000624 | Driveshaft assembly, upper | This part replaces 0436235. |
59 | 0335510 | Shift rod | |
60 | 0321122 | Spacer, shift rod | |
61 | 0320943 | Bague, pompe vers carter d'échap. | |
62 | 0320570 | Spacer, nut | |
63 | 0338486 | Coupelle, turbine inox | |
63 | 0338551 | Coupelle, turbine chrome | |
64 | 0306643 | Screw | |
65 | 0313715 | Screw, cap, hex hd, 7 16 14 x 1 | |
66 | 0330263 | Screw, upper mount retention | |
67 | 5008966 | Nut keeper, propeller | This part replaces 0398042. |
68 | 0306394 | Cotter pin | |
69 | 0330265 | Washer | |
70 | 0331998 | Screw, gearcase to housing | |
71 | 0328096 | Screw | |
72 | 0331999 | Screw, gearcase housing | |
73 | 0331353 | Seal, impeller housing plate. | |
74 | 5001593 | Impeller assembly | This part replaces 0435821. |
75 | 0331107 | Clavette, turbine | |
76 | 0302035 | "o" ring, spacer to imp. hsg. | |
77 | 0338485 | Plate, impeller | |
77 | 0338552 | Plate, impeller | |
78 | 0126870 | Bague, de butée | |
78 | 0128777 | Bushing, thrust | This part replaces 0126869. |
79 | 0338484 | Gasket, imp. hsg. plate | |
80 | 0314008 | Bague, tube à eau vers capot | |
81 | 0360347 | Housing, impeller | This part replaces 0435959. |
82 | 0302325 | Screw, impeller housing | |
83 | 0331188 | O ring | |
84 | 0338893 | Capot, carter de turbine | |
85 | 0338742 | Compensateur de dérive | |
86 | 0436745 | Anode | |
87 | PROPELLER | ||
88 | 0387157 | Bushing assy, prop, std | |
88 | 0175401 | Bushing assy, prop, sst | |
89 | 0332394 | Converging ring | |
90 | 0313926 | Propeller hub sleeve | |
91 | 0338601 | Grommet, sleeve to exh hsg | |
92 | 0354580 | Sleeve, extension | This part replaces 0338636. |
93 | 0330266 | Washer, trail lock lever | |
94 | 0307161 | Lock washer, anode | |
95 | 5006373 | Gearcase seal kit | This part replaces 0439141. |
96 | 5001595 | Water pump repair kit | This part replaces 0435929. |
97 | 0435526 | Chrome cup plate kit |
