EVINRUDE-JOHNSON 387656 Butee, Arbre D'Entraã®Nement

Write a Review
$47.49
SKU:
387656
Schematic Object Key:
33

EVINRUDE-JOHNSON 387656 Butee, Arbre D'Entraã®Nement

$47.49

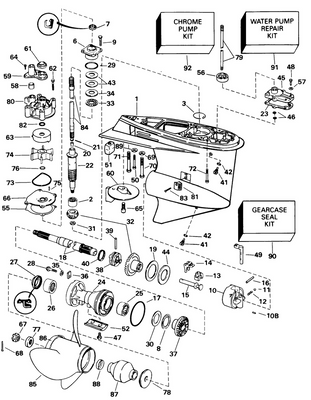

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 387656 Butee, Arbre D'Entraã®Nement

Schematic Object Key : 33

Product Description: Butee, Arbre D'Entraã®Nement

Category: EVINRUDE / 1998 / 100 / E100WQLECS 1998 / GEARCASE -- 100WQL MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 5006312 Ensemble boîtier d'engrenages palier This part replaces 0437141.
2 0384195 Bearing, pinion
3 0340493 Retaining ring
6 0439476 Bearing housing seal This part replaces 0438963.
7 0341280 Seal
8 0382408 Thrust bearing
9 0317624 Screw, driveshaft hsg
10 0391365 Bearing housing assembly.
10B 0331880 Pin, housing to gearcase
11 0327345 Ball, detent
12 0911961 Spring, detent
13 0334163 Cradle, shifter
14 0324037 Lever, shift
15 0322941 Arbre, commande de sens de marche
16 0320145 Pin, lever to housing
17 0313446 "o" riing, brg. hsg
18 5006310 Arbre d hélice This part replaces 0436834.
19 0385043 Thrust bearing assy.
20 0338504 Retainer, driveshaft
21 0311538 Roll pin, driveshaft
22 0346004 Arbre d'entraînement, inférieur This part replaces 0340489.
23 0352165 Gasket, shift rod cover This part replaces 0324670.
24 5000440 Bearing housing assembly, propshaft This part replaces 0436832.
25 0382407 Bearing assy, forward gear
26 0379504 Propshaft bearing assembly
27 0342787 Seal
28 0350271 Screw This part replaces 0341541.
29 0354731 O ring This part replaces 0314728.
30 0314731 Rondelle de butée, engrenage de marche arrière
31 0314730 Nut, pinion to driveshaft
32 0436746 Gear pinion assy.
33 0387656 Butée, arbre d'entraînement
34 0327656 Rondelle de butée, arbre d'entraînement
35 0328743 Rondelle
36 0333957 Languette, de retenue
37 0345992 Engrenage, marche arrière This part replaces 0340490.
38 0323664 Commande de sens de marche, crabot d'embrayage
39 0313448 Pin, clutch dog
40 0324369 Spring, clutch dog pin
41 0318544 Screw, fill drain
42 0311598 Seal
43 0323362 Cale, 0,003" 0,07 mm
43 0323361 Cale, 0,004" 0,10 mm
43 0314745 Cale, 0,005" 0,12 mm
44 0324766 Thrust washer, forward gear
45 5006241 Couvercle joint, tige de commande de sens de marche This part replaces 0435482.
46 0318372 "o" ring, shift rod
47 0908158 Screw, anode
48 0302325 Screw, impeller housing
49 0915954 Detent, shifter This part replaces 0323946.
50 0341219 Screw, anode
51 0436745 Anode
52 0431708 Anode, bearing housing
55 0338484 Gasket, imp. hsg. plate
56 0321008 Grommet, exh hsg to shift rod
57 0328702 Washer
58 0314008 Bague, tube à eau vers capot
59 0338893 Capot, carter de turbine
60 0338742 Compensateur de dérive
61 0320943 Bague, pompe vers carter d'échap.
62 0302325 Screw, impeller housing
63 0338486 Coupelle, turbine inox
63 0338551 Coupelle, turbine chrome
64 0306643 Screw
65 0313715 Screw, cap, hex hd, 7 16 14 x 1
66 0338485 Plate, impeller
66 0338552 Plate, impeller
67 0314503 Nut, impeller
68 0314502 Cotter pin
69 0330265 Washer
70 0331998 Screw, gearcase to housing
71 0331999 Screw, gearcase housing
72 0331999 Screw, gearcase housing
73 0331353 Seal, impeller housing plate.
74 5001593 Impeller assembly This part replaces 0435821.
75 0331107 Clavette, turbine
76 0302035 "o" ring, spacer to imp. hsg.
77 0315810 Spacer, impeller nut
77 0176563 Entretoise, écrou d'hélice
78 0127084 Thrust bushing
78 0127212 Bague, de butée
79 0335509 Shift rod
80 0360347 Housing, impeller This part replaces 0435959.
81 0337778 Screen
82 0331188 O ring
83 0340665 Screw, water intake screens
84 5000615 Arbre d'entraînement, supérieur This part replaces 0436234.
85 PROPELLER
86 0332393 Converging ring
87 0384977 Bushing assy, prop, 3 blade
88 0313926 Propeller hub sleeve
89 0307161 Lock washer, anode
90 5006373 Gearcase seal kit This part replaces 0396354.
91 5001595 Water pump repair kit This part replaces 0435929.
92 0435526 Chrome cup plate kit
