EVINRUDE-JOHNSON 387819 Intake Manifold Assembly

Write a Review
$99.00
SKU:
387819
Schematic Object Key:
1

EVINRUDE-JOHNSON 387819 Intake Manifold Assembly

$99.00

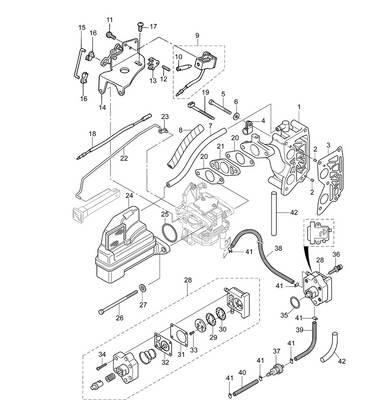

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 387819 Intake Manifold Assembly

Schematic Object Key : 1

Product Description: Intake Manifold Assembly

Category: EVINRUDE / 1978 / 235 / 235849R 1978 / INTAKE MANIFOLD

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0387819 Intake manifold assembly
2 0314513 Fitting, fuel inlet
3 0314956 Stud
4 0330115 Clamp, power pack connector This part replaces 0318174.
5 0302812 Screw, ground terminal
6 CARB. ASSY., Upper
7 CARB. ASSY., Middle
8 CARB. ASSY., Lower
9 0316291 Nut
10 0321907 Gasket, leaf plate
11 0389823 Clapet This part replaces 0389101.
12 0327074 Screw This part replaces 0307129.
13 0329718 Gasket, manifold to c'case This part replaces 0321198.
14 0313217 Screw
15 0320930 Cover, air silencer This part replaces 0387871.
16 0320575 Adj lever, throttle link
17 0581748 Solenoid assy,choke,115,140 hp This part replaces 0387288.
18 0510780 8 ring termianl
19 0510781 Tubing, sleeve
20 0510818 Terminal, ring
21 0308742 Screw, crankcase to cylinder
22 0306418 Screw, anchor block lower
23 0328703 Washer, screw hook This part replaces 0304051.
24 0328695 Clamp, engine cable This part replaces 0323480.
25 0314513 Fitting, fuel inlet
26 0318974 Fastener, cable clamp
27 0303686 Screw, fastener
28 0320636 Base, air silencer
29 0313329 Lockwasher, carburetor link
30 0322722 Filler block, 175, 185, 235
31 0133451 Screw, leaf plate manifold, short
32 0387379 Link pin assy
33 0310688 Sapcer, anchor block
34 0332226 Screw, air temperature sensor This part replaces 0321294.
35 0304454 Lock washer
36 0322503 Throttle cam
37 0310687 Detent spring, anchor block
38 HOSE, Air silencer
39 0316073 Link, carburetor choke
40 0307529 "o" ring, cam follower
41 0321659 Link, choke soleniod
42 0314739 Spring, plunger to solenoid
43 0321660 Plunger
44 0321218 Clamp, choke solenoid
45 0310539 Screw, clamp choke solenoid
46 0319771 Gasket set, air silencer
47 0315052 Gasket carb. to manifold
48 0306407 Locckwasher,cover latch
49 0321183 Gasket, cover
50 0432272 Link and pin, throttle arm This part replaces 0387378.
51 0302812 Screw, ground terminal
52 0306547 3.washer, mounting stud
53 0316037 Screw, cover to gearcase
54 0204445 Bow washer
55 0314416 Bumber, advance screw
56 0317615 Scerw,spark advance
57 0328741 Nut, input stud This part replaces 0304753.
58 0306396 Lock washer, control to boat
59 0311015 Bushing, pawl
60 0310441 Clamp, small
