EVINRUDE-JOHNSON 388038 Stern Brkt.,Assy.,Port (Incl.Items 49,50,51)

Write a Review
$39.00
SKU:
388038
Schematic Object Key:
53

EVINRUDE-JOHNSON 388038 Stern Brkt.,Assy.,Port (Incl.Items 49,50,51)

$39.00

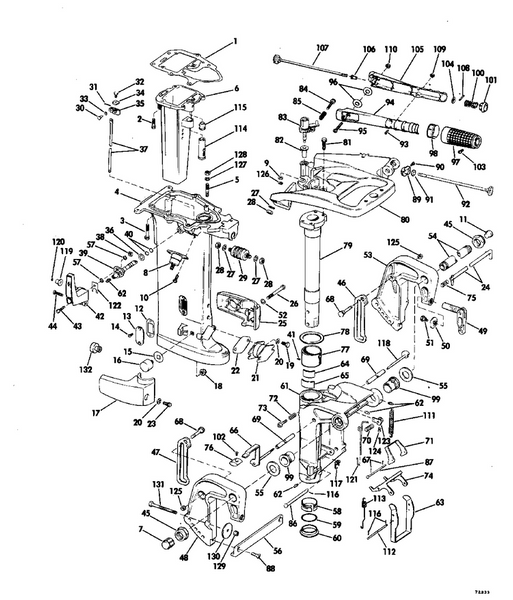

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 388038 Stern Brkt.,Assy.,Port (Incl.Items 49,50,51)

Schematic Object Key : 53

Product Description: Stern Brkt.,Assy.,Port (Incl.Items 49,50,51)

Category: EVINRUDE / 1977 / 25 / 25752S 1977 / EXHAUST HOUSING-35 HP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0319710 Gasket, baffle
2 0308743 Screw, injector to manifold This part replaces 0320179.
3 0318622 Screw, cylinder to crankcase
4 0386902 Exhaust housing assy std
4 0386930 Exhaust housing assy long
5 0324815 Stud This part replaces 0320152.
6 0322682 Exhaust tube, inner
7 0317894 Cap, tilt tube
8 0303879 Mount rubber, upper side, std. only
9 0303887 Washeer, pin to swivel bracket
10 0329217 Screw, retainer This part replaces 0310259.
11 0318173 Plug, stop switch
12 0304023 Gasket, cover plate
13 0303862 Cover plate, extension long shaft models
14 0303587 Scres,cover plate
15 0304168 Gasket, mount, lower side
16 0321470 Mount, rubber, lower side
17 0323109 Houising,lower mount,stbd.
18 0303890 Acorn nut, lower side mount
19 0330437 Screw This part replaces 0303888.
20 0303886 Lockwasher
21 0321469 Mount, rubber, lower front
22 0304169 Gasket, lower front mount
23 0309942 Screw, anchor bracket
24 0386499 Rod, thrust and retainer
25 0323108 Housing, lower mount port
26 0342540 Screw, exhaust housing to ext. This part replaces 0316440.
27 0303884 Washer
28 0303889 .nut
29 0304800 Mount, rubber, upper front
30 0319541 Pin, bellcrank to shift rod
31 0306376 Cotter pin
32 0321532 Screw
33 0304380 , bow
34 0319537 Clip
35 0322092 Lever, shift rod
36 0303775 Wahser, lever to hsg
37 0319680 Shift rod, upper
38 0203688 Nut
39 0388655 Adj lever and shaft assy
40 0303191 "o" ring, lever shaft
41 0303696 Pin
42 0384477 Shift lever pin
43 0306404 Screw
44 0323099 Screw, bumper This part replaces 0301989.
45 0323599 Locknut This part replaces 0316828.
46 0437876 Lock assembly, tilt port This part replaces 0387667.
47 0437875 Lock assembly, tilt starboard This part replaces 0387668.
48 0388039 Stern brkt.,assy.,stbd.
49 0433675 Clamp scr. hand. assy. This part replaces 0388347.
50 0337017 Plate, swivel This part replaces 0307561.
51 0321922 Screw, shoulder
52 0304144 Lock washer
53 0388038 Stern brkt.,assy.,port incl.items 49,50,51
54 0351896 Tilt tube This part replaces 0321511.
55 0319699 Thrust washer, stern bracket
56 0357240 Tie bar, stern bracket This part replaces 0319709.
57 0328701 Lockwasher, double ended bolt This part replaces 0303480.
58 0309967 Bushing, pilot shaft, lower
59 0305270 O ring
60 0309966 Thrust washer, lower swivel bracket
61 0319700 Bracket, swivel
62 0313607 Lube fitting
63 0338657 Link, shallow water drive This part replaces 0320426.
64 0303843 Spacer, co pilot plate
65 0303844 Plate, co pilot
66 0386500 Lever shaft, lock
67 0305650 Cotter pin
68 0319692 Pin tilt lock
69 0319693 Bushing, tilt lock
70 0319694 Spring, tilt lock
71 0319050 Lever, reverse locking
72 0551113 Ressort de friction de direction
73 0321531 Screw, friction adjust. swivel brkt.
74 0322949 Link, reverse lock
75 0310377 Spring, thrust rid
76 0328048 Knob, tilt reverse lock lever This part replaces 0319051.
77 0303846 Liner, swivel brkt, upper
78 0303842 Washer, thrust
79 0321717 Pilot shaft, steering brkt.
80 0322883 Bracket, steering
80 0322884 Bracket, steering
81 0317624 Screw, driveshaft hsg
82 0303854 Bushi ng, throttle control
83 0393943 Gear, throttle control This part replaces 0387634.
84 0304573 Scr., idle adj.
85 0309247 Ressort
86 0319055 Pin, link to bracket
87 0322945 Pin, link shallow water drive
88 0324579 Screw This part replaces 0312709.
89 0303142 Pinion, control throttle
90 0303951 Screw, pin to shaft
91 0305347 Bushing, throttle shaft
92 0387057 Gear shaft, short
93 0133452 Screw
94 0318213 Handle, inner half
95 0330976 Screw, handle halves This part replaces 0303078.
96 0303079 Washer
97 0393556 Grip sleeve assy. This part replaces 0279600.
98 0320842 Plate
99 0319787 Bushing
100 0301656 Spring
101 0303282 Block
102 0319227 Screw, knob
103 0310303 1
104 0303252 Wahser, grip spring
105 0318214 Handle, outer half
107 0377943 Gear shaft, long
109 0133079 Nut
111 0315078 Spring, reverse lock
112 0320481 Pin, link
113 0319697 Spring reverse lock
144 0321513 Guide, water tube
115 0302497 Grommet, lower water tube
116 0303049 Cotter pin
117 0318824 Screw, knob to control handle
119 0323493 Bushing
120 0308776 O ring
121 0319696 Rod, reverse lock
122 0322878 Spacer, shift lever
123 0319695 Bell crank
124 0319108 Screw belcrank
125 0313838 Nut, bracket to steering arm
126 0314408 . .ring, tru arc
127 0311388 Oring
128 0306422 Nut
130 0315776 Rondelle
