EVINRUDE-JOHNSON 389135 Chrome Pump Kit

Write a Review
$16.99
SKU:
389135
Schematic Object Key:
92

EVINRUDE-JOHNSON 389135 Chrome Pump Kit

$16.99

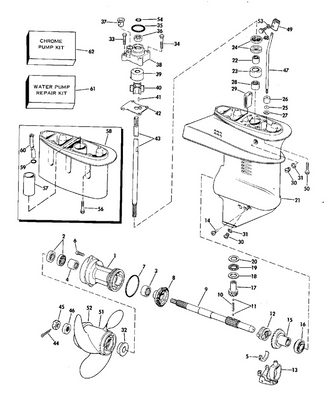

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 389135 Chrome Pump Kit

Schematic Object Key : 92

Product Description: Chrome Pump Kit

Category: EVINRUDE / 1988 / 40 / E40RCCS 1988 / GEARCASE - 40AR, 40AE, 40AT MODELS ONLY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0396945 0396945 Gearcase assy., long
1 0393954 Gearcase bearing assy.
2 0382343 Bearing, pinion
3 0324852 Retaining screw seal
0332584 0332584 Washer, seal ring
4 0314175 Screen, water intake
5 0391365 Bearing housing assembly.
6 0331880 Pin, housing to gearcase
7 0327345 Ball, detent
8 0911961 Spring, detent This part replaces 0326666.
9 0332320 Screw, anode
10 0318544 Screw, fill drain
11 0333572 O ring
12 0334163 Cradle, shifter
13 0313447 Thrust washer
14 0382408 Thrust bearing
15 0398522 Gear set, forward pinion This part replaces 0398523.
16 0326668 Shaft, shift dog
17 0318303 Shifter, clutch dog
18 0313448 Pin, clutch dog
19 0324369 Spring, clutch dog pin
20 0439153 Propeller shaft assembly. This part replaces 0385558.
21 0318353 Gear, reverse
22 0313453 Retainer plate, bearing housing
23 0313445 Retaining ring
24 0313446 "o" riing, brg. hsg
25 0434391 Bearing housing assembly. This part replaces 0397188.
26 0382407 Bearing assy, forward gear
27 0379504 Propshaft bearing assembly
28 0330137 Seal
29 0320041 Screw, housing to gearcase
29A 0332584 Washer, seal ring
30 0431708 Anode, bearing housing
31 0313339 Nut, pinion to driveshaft
33 0396814 Driveshaft assy.
34 0385068 Thrust bearing assembly.
35 0317230 Thrust washer
36 0323889 Shim, 0.003 in. 0,07mm
36 0323890 Shim, 0.004 in. 0,10mm
36 0317232 Shim, 0.005 in. 0,12mm
37 0313754 O ring
38 0435519 Bearing housing assy. This part replaces 0395006.
39 0321459 Oil retainer, housing
40 0330327 Retainer, oil driveshaft, outer
41 0307551 Screw
42 0333572 O ring
44 0324937 Seal, gearcase to inner exh. hsg.
45 0302325 Screw, impeller housing
46 0324037 Lever, shift
47 0316484 Thrust washer, shifter
48 0385752 Cover eyelet assy
49 0318372 "o" ring, shift rod
50 0320145 Pin, lever to housing
51 0314082 Gasket, cover to gearcase
52 0327367 Shift rod
53 0324766 Thrust washer, forward gear
54 0385043 Thrust bearing assy.
55 0330701 Detent, shifter
56 0909386 Screw, housing to gearcase
57 0317922 Seal, shift rod
58 0320107 Tie strap
59 0384087 Impelelr hsg., gearcase
60 0315837 Grommet, water tube
61 0302325 Screw, impeller housing
62 0331980 Screw, bracket, port
63 0315838 Bracket, water tube
64 0341732 Grommet, housing This part replaces 0315748.
65 0339543 O ring This part replaces 0303059.
66 0305282 Bolt, bowl suction piece
67 0307708 Lock washer, mounting This part replaces 0302865.
68 0306503 Screw, adjustment rod
69 0306470 Lock washer
70 0313697 Scr,grc to hsg.long
71 0306314 L'washer,scr,long
72 0127084 Thrust bushing This part replaces 0318841.
73 0315810 Spacer, impeller nut
74 0314503 Nut, impeller
75 0314502 Cotter pin
76 0127466 Trim tab This part replaces 0328821.
77 0313715 Screw, cap, hex hd, 7 16 14 x 1
78 0321452 Grommet
79 0320981 Plate, impeller housing
79 0316693 Plate, impeller housing
80 0344470 Key, impeller This part replaces 0330619.
81 0396809 Impeller assy
82 0315788 Seal, impeller housing
86 0320776 Plate, impeller housing
86 0315746 Plate liner
87 0320775 Liner, impeller housing
87 0315747 Liner, impeller housing
88 0389792 Propeller 14 x 11 sst
88 0390896 Propeller, 13 19 al.
88 0383160 Propeller 14 x 19
88 0382761 Propeller ,14 x 11
88 0765181 Propeller This part replaces 0391668.
88 0765182 Propeller w models This part replaces 0391198.
88 0765183 Propeller, wdel models This part replaces 0391199.
88 0392261 Propeller 13 3 4 x 13 sst
88 0389949 Propeller, 12 3 4 x 15 sst
88 0389788 Propeller, 12 3 4 x 21
88 0389948 Propeller, 12 3 4 x 17 sst
88 0389510 Propeller, 13 19 sst
88 0389512 Pro, 12 3 4 x 21 sst cupped
89 0384977 Bushing assy, prop, 3 blade
90 0332393 Converging ring
91 0313926 Propeller hub sleeve
92 0389135 Chrome pump kit
0392461 0392461 Anode kit
93 0436745 Anode This part replaces 0393023.
94 0313022 Locknut, double ended bolt
95 0328096 Screw
96 0324430 Screw, anode
97 0307555 Lock washer, anode
98 0392462 Anode and insert
99 0396932 Water pump repair kit
99 0396933 Water pump repair kit includes impeller housing
