EVINRUDE-JOHNSON 390700 Powerhead Gasket Set

Write a Review
$39.00
SKU:
390700
Schematic Object Key:
76

EVINRUDE-JOHNSON 390700 Powerhead Gasket Set

$39.00

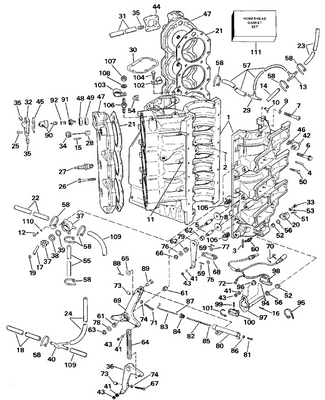

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 390700 Powerhead Gasket Set

Schematic Object Key : 76

Product Description: Powerhead Gasket Set

Category: EVINRUDE / 1983 / 40 / E40RWLTR 1983 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0390423 Cylinder c'case assy.
2 0300788 Plug expansion
3 0303423 ,nipple,oil hose
4 0320107 Tie strap
5 0304178 Pin, dowel
6 0302600 Screw
7 0307587 Plug, crankcase
8 0302579 Screw, allen
9 HOSE,Oil return 12"
10 0300343 Washer, crankcase to cylinder
11 0300402 Taper pin
12 0301431 Screw
13 0306409 Screw, anchor block lower
14 0321528 Nut, shifter lock
15 0305027 Screw
16 0387694 Spark plug, champion ul81j
16 0389471 Spark plug, champion l78
16 0390659 Spark plug, champion ql 78v
17 0307471 Screw
18 0307069 Gasket, cylinder head
19 0318961 Cylinder head
20 0321886 Elbow
21 0318962 Gasket, cover
22 0323005 Cover, cylinder head
23 0300646 Screw, clamp, fuel filter
24 0319884 Nut
25 0304762 Gakset, exhaust cover
26 0304761 Cover, exhaust, inner
27 0328911 Exhaust cover, outer
28 0306418 Screw, anchor block lower
29 0328387 Hose, overboard indicator This part replaces 0322999.
30 0511514 Clamp, cable This part replaces 0317883.
31 0310441 Clamp, small This part replaces 0310493.
32 0318462 Spring, shifter lock
33 0385825 Shifter lock
34 0307466 Scres, bowl to body
35 0314416 Bumber, advance screw
36 0325542 Bushing
37 0305078 Bracket, starboard
38 0309905 Scew,cylinder head
39 HOSE,Cover lower,9"
40 HOSE,Cover upper,10-1/2"
41 0317254 Gasket, c'case to hsg
42 0385109 Hsg. nipple valve assy
43 0305831 Shim
44 0307841 Bushing, control lever
45 0302948 Screw
46 0305609 Bearing clamp
47 0329197 Pin, control lever This part replaces 0304155.
48 0386492 Contorl lever
49 0300646 Screw, clamp, fuel filter
50 0305077 Bracket, port
51 0306396 Lock washer, control to boat
52 0302376 Lockwasher
53 0313022 Locknut, double ended bolt
54 0304784 Gasket, by oass cover
55 0386364 By pass cover lower
56 0308077 Screw
57 0300646 Screw, clamp, fuel filter
58 0385107 By pass cover upper
59 0319354 Screw, armature plate stop
60 0319795 Spring, control lever
61 0304941 Bracket
62 0310441 Clamp, small
63 0312050 Bracket, lift
64 0318491 Screw, adj shifter lock
65 0328741 Nut, input stud This part replaces 0304753.
66 0317657 Lcokout lever
67 0321995 Shoulder screw
68 0317655 Washer
69 0322122 Return spring, lever
70 0317971 Lockout lever, exh. cover
71 0322781 Screw, lockout lever boss
72 0309020 Spring washer
73 0328703 Washer, screw hook This part replaces 0304051.
76 0390700 Powerhead gasket set
