EVINRUDE-JOHNSON 391225 . Plate & Sleeve Assy.

Write a Review
$124.99
SKU:
391225
Schematic Object Key:
11

EVINRUDE-JOHNSON 391225 . Plate & Sleeve Assy.

$124.99

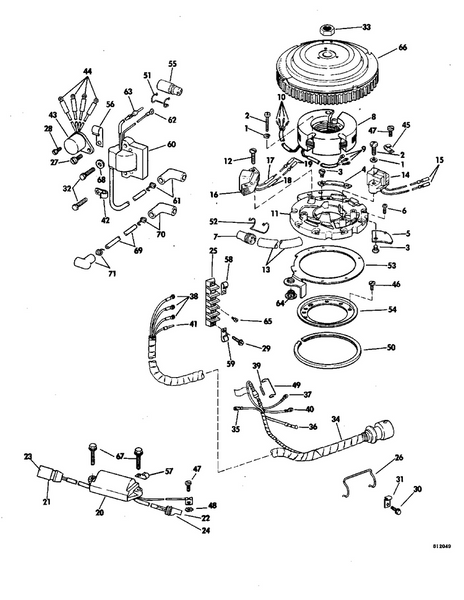

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 391225 . Plate & Sleeve Assy.

Schematic Object Key : 11

Product Description: . Plate & Sleeve Assy.

Category: JOHNSON / 1981 / 60 / J60ELCIA 1981 / IGNITION SYSTEM

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0581853 0581853 Stator armature plate assy.
0581855 0581855 Stator armature plate assy
1 0120052 . . lockwasher, solenoid screw
1 0306547 3.washer, mounting stud
2 0132123 . . . screw, long, 1 1 4" long
2 0307175 ,,screw ,housing
3 0510193 . screw, clamp cover
3 0307019 Screw, clamp
4 0511458 . clamp, leads
5 0511459 . cover, leads
6 0511460 Screw, ignition plate
7 0511991 . connector, plug
8 0581651 Stator assembly
9 0510780 8 ring termianl
10 0581656 Terminal, socket
11 0391225 . plate sleeve assy.
11 0582020 Plate sleeve assy.
12 0309545 Screw, stator mounting
13 0511482 Sleeve
14 0582296 Sensor assy This part replaces 0581858.
15 0581656 Terminal, socket
16 0581670 Charge coil This part replaces 0582059.
17 0315072 Splice connector
18 0510628 . sleeve
19 0581656 Terminal, socket
20 0581927 Poer pack assy
21 0511449 Commector, coil to power pack
22 0511990 Connector, 3 socket
23 0511469 Terminal, pin
24 0581656 Terminal, socket
25 0511563 Terminal block
26 0315182 Clamp, cables
27 0552421 Screw, rectifier mounting
28 0314576 Screw
29 0341474 Screw, cover This part replaces 0510195.
30 0313117 Scr,clamp,eng cable
31 0326365 Clip, spring
32 0328725 Screw, cover to gearcase This part replaces 0323795.
33 0326111 Nut
33 0321341 Nut, flywheel
34 0582061 Motor cable assy
35 0204036 10 ring termial,12v
36 0308808 Cosse, plate
37 0204053 Borne, anneau 0,312" 7,9 mm diamètre
38 0510780 8 ring termianl
39 0510884 Fuse, 20 amp.
40 0510818 Terminal, ring This part replaces 0308294.
41 0511469 Terminal, pin
42 0310441 Clamp, small
43 0581778 Rectifier lead assy.
44 0510780 8 ring termianl
45 0317000 Cable, starter cable
46 0332070 Screw, retaining plate This part replaces 0304442.
47 0317753 Screw
48 0328701 Lockwasher, double ended bolt This part replaces 0303480.
49 0321077 Retainer
50 0322435 Bearing, timer base plate to
51 0322548 Retainer, connector, 3 pin
52 0322549 Dispositif de retenue, bouchon
53 0334193 Retainer, ign. plate assy. This part replaces 0323204.
54 0332063 Plate, support This part replaces 0323398.
55 0511465 Connector, 3 pin recepticale
56 0330151 Cable clamp, filter This part replaces 0309041.
57 0310439 Clamp, battery cable
58 0310442 Clamp, tps lead
59 0310439 Clamp, battery cable
60 0582106 Coil assy
61 0581027 Cover terminal assy, spark plug
62 0510818 Terminal, ring
63 0511469 Terminal, pin
64 0395448 Ball socket assy This part replaces 0313700.
65 0329182 Screw, ground terminal This part replaces 0327569.
66 0583696 Flywheel assembly This part replaces 0582172.
67 0328726 Screw use existing coil screw This part replaces 0323796.
68 0306407 Locckwasher,cover latch
69 0582365 H.t. lead assembly, spark plugs to ignition coil
70 0581027 Cover terminal assy, spark plug
71 0580339 Cover terminal assy, coil
