EVINRUDE-JOHNSON 393545 Bellcrank Assy., Shift

Write a Review
$58.99
SKU:
393545
Schematic Object Key:
25

EVINRUDE-JOHNSON 393545 Bellcrank Assy., Shift

$58.99

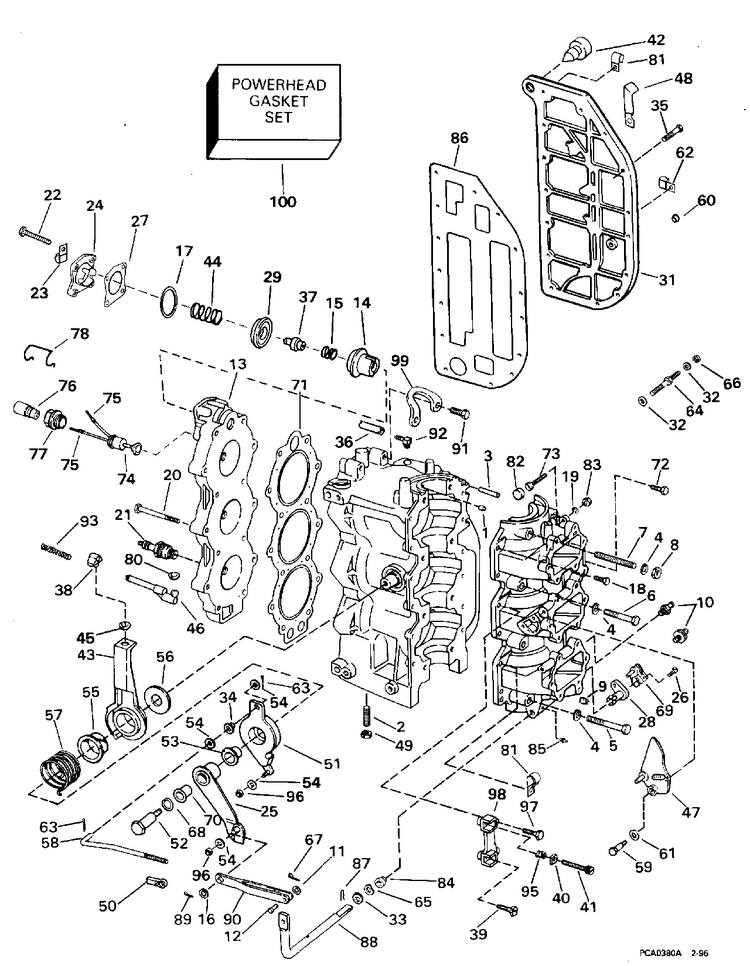

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 393545 Bellcrank Assy., Shift

Schematic Object Key : 25

Product Description: Bellcrank Assy., Shift

Category: JOHNSON / 1996 / 60 / SJ60TLEDR 1996 / CYLINDER & CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0304178 Pin, dowel
2 0314616 Stud
3 0305070 Axe, carter moteur vers bloc
4 0300343 Washer, crankcase to cylinder
5 0307776 Screw, lower main bearing
6 0131794 Screw, crankcase to cylinder
7 0313538 Stud, crankcase to cylinder
8 0320372 Locknut, crankcase to cylinder
9 0321164 Plug
10 0435009 Pulse limiter
10 0303492 Fitting, crankcase
11 0328702 Washer
12 0318197 Pin, link
13 0339221 Cylinder head
13 0339288 Cylinder head
14 0336178 Housing, thermostat
15 0336179 Spring
16 0328708 Washer, injector screw
17 0336185 Washer
18 0306049 Screw
19 0302290 Washer
20 0322323 Screw
21 0437929 Bougie, champion, ql78yc
21 0502180 Spark plug, champion ql77jc4 This part replaces 0387633.
21 0432424 Spark plug , ql16v
21 0386941 Spark plub,champion l77j4
22 0306049 Screw
23 0310439 Clamp, battery cable
24 0343141 Cover, thermostat This part replaces 0339207.
25 0393545 Bellcrank assy., shift
26 0317581 Screw, actuator cam
27 0329830 Gasket, cover
28 0330935 Bague, retenue de la tige du levier de sens de marche
29 0435957 Diaphragm
31 0343864 Cover, exhaust manifold This part replaces 0329834.
32 0328701 Lockwasher, double ended bolt
33 0202026 Washer, rod
34 0322631 Bushing, link
35 0308743 Screw, injector to manifold
36 0911237 Hose, indicator
37 0436195 Thermostat
38 0336456 Guide, lever to link
39 0333710 Screw, anchor bracket This part replaces 0332012.
40 0203688 Nut
41 0306337 Screw, adjustment
42 0314021 Bumber, exhaust manifold
43 0319318 Lever, spark adavance
44 0342421 Spring
45 0395448 Ball socket assy
46 0336491 Link, dwell
47 0434171 Cam pin assy., throttle
48 0316487 Retainer
49 0316355 But, carburetor mounting This part replaces 0315204.
50 0334153 Connecteur, câble d'accélérateur
51 0387800 Lever, throttle
52 0318192 Shdlr. screw, throttle lever
53 0314002 Bushing
54 0328737 Washer
55 0314003 Bshing, spark lever
56 0314098 Washer, throttle lever
57 0314094 Link, throttle lever to cam
58 0336424 Link, throttle lever to cam
59 0314136 Screw, shift lever to bracket
60 0321164 Plug
61 0330179 Washer
62 0310439 Clamp, battery cable
63 0303049 Cotter pin
64 0334109 Bolt, double end
65 0306012 Bow washer
66 0328740 Nut, throttle friction
67 0305650 Cotter pin
68 0908060 Bow washer, shoulder screw
69 0395588 Lever pin assy., shift lever
70 0318193 Bushing
71 0329836 Gasket, cylinder head
72 0306049 Screw
73 0328722 Screw, spark adjust
74 0585023 Interrupteur thermostatique, bâbord
74 0584152 Temperature switch
75 0511469 Terminal, pin
76 0512746 Connecteur, 2 broches
77 0329562 Cache, interrupteur
78 0512741 Retainer, connector, 1 pin
80 0395448 Ball socket assy
81 0330151 Cable clamp, filter
82 0314416 Bumber, advance screw
83 0328741 Nut, input stud
84 0318951 Bushing, shift lever to c'case
85 0313607 Lube fitting
86 0343863 Gasket, exhaust manifold This part replaces 0329833.
87 0330941 Pin, retainer
88 0345600 Shift lever This part replaces 0330940.
89 0306387 . cotter pin, connector to guide
90 0328567 Link, bellcrank
91 0306322 Bolt, water pump
92 0321886 Elbow
93 0336447 Spring, dwell linkage
95 0308993 Ressort, friction d'accélération
96 0328064 Nut
97 0331025 Screw This part replaces 0308751.
98 0316664 Bracket, adjustment
99 0333962 Lift bracket
