EVINRUDE-JOHNSON 394176 Trim /Tilt Motor

Write a Review
$186.99
SKU:
394176-OMC
Schematic Object Key:
28

EVINRUDE-JOHNSON 394176 Trim /Tilt Motor

$186.99

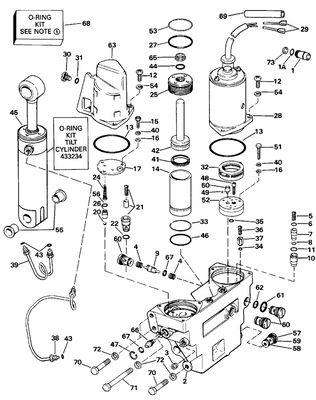

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 394176 Trim /Tilt Motor

Schematic Object Key : 28

Product Description: Trim /Tilt Motor

Category: JOHNSON / 1990 / 60 / VJ60ELESM 1990 / POWER TRIM/TILT HYDRAULIC ASSEMBLY

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0393942 O ring kit, manifold
2 0398110 Manifold, power trim tilt
3 0321164 Plug
4 0323846 Spring, piston
5 0325863 Spring, relief valve
6 0324677 O ring, valve core, upper
7 0325862 Valve core, relief valve
8 0324678 O ring, valve core, lower
9 0323848 Piston, pump control
10 0391155 Seat, valve core, relief valve
11 0326425 O ring, value seat
12 0332216 Screw, mounting 1 7 8 in. 48mm
13 0332267 Screw, mounting 3 1 8 in. 79mm
14 0320980 Sleeve, trim cylinder
15 0316602 Screw, letdown plate
16 0300154 Washer
17 0323408 Plate, manifold
18 0320780 Screw, motor reservoir
19 0321163 O ring, motor
20 0160084 Ball
21 0983767 Valve assy., relief valve
22 0202893 "o" ring, drive shaft
23 0322175 Ball, coupling
24 0321165 Filter, reservoir
25 0320788 End cap, trim cylinder
26 0321226 Valve seat, filter
27 0319662 O ring, end cap
28 0394176 Trim tilt motor
29 0511657 . . ring terminal
0398606 0398606 Brush seal kit
0583522 0583522 Brush seal kit
30 0321284 Plug, reservoir
31 0307450 "o" ring, large
32 0321350 Filter, oil pump
33 0321716 Ring, backup sleeve
34 0122757 Seal, valve pump relief
35 0321357 O ring
36 0321282 Spring, relief valve
37 0122759 Valve, pump relief
38 0390443 Oil line assy., upper
39 0387397 Oil line assy., lower
40 0360252 Washer This part replaces 0306311.
41 0321942 Screw, oil pump to manifold, short
42 0330809 Seal, trim rod
43 0321283 O ring, trim cylinder
44 0325698 Connector
45 0328227 Quad ring, trim cylinder
46 0321117 O ring, cam follower
0387248 0387248 Cylinder assy., tilt
47 0387248 Cylinder assy., tilt This part replaces 0390005.
0390002 0390002 Rod assy. complete
49 0390006 Cap, o ring seal assy.
50 0390000 Piston assy.
51 0390001 Rod eyelet
52 0324385 Washer, rod end
53 0324390 Hex nut, rod end
54 0390007 O ring package
55 0321246 Bushing, shock lower
56 0321202 Pivot pin, shock lower
57 0387517 Valve seat, housing seal assy.
58 0304174 "o" ring, tube adapter
59 0326649 O ring
60 0387376 Valve seat, housing seal
61 0326649 O ring
62 0304174 "o" ring, tube adapter
63 0391163 Reservoir, trim tilt
65 0122494 Wiper, trim rod
66 0387990 Manual release valve
67 0321362 Retaining ring, manual release
68 0321542 O ring, valve seat
69 0302290 Washer
70 0321715 Ring backup, end cap
71 0389836 Oil pump assy.
72 0321219 Screw, pump to manifold
73 0322174 Drive coupling
74 0322724 Trim rod assy.
75 0307708 Lock washer, mounting
76 0327267 Sleeve
