EVINRUDE-JOHNSON 394823 Gear & Bushing Assy., Forward

Write a Review
$308.99
SKU:
394823
Schematic Object Key:
6

EVINRUDE-JOHNSON 394823 Gear & Bushing Assy., Forward

$308.99

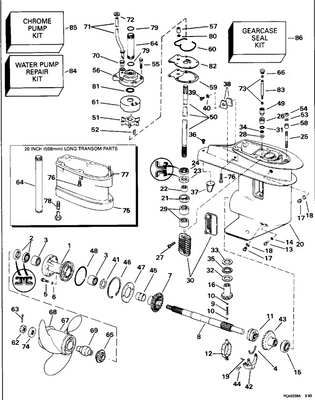

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 394823 Gear & Bushing Assy., Forward

Schematic Object Key : 6

Product Description: Gear & Bushing Assy., Forward

Category: EVINRUDE / 1996 / 8 / BE8FRBLEDC 1996 / GEARCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0437774 Bearing housing, bearing seal
2 0342247 Seal, brg hsg. to prop. shaft
3 0386125 Bearing, reverse gear
4 0386231 Bearing
5 0333706 Screw, bearing housing to gearcase
6 0394823 Gear bushing assy., forward
7 0308627 "o" ring, bearing housing to gearcase
8 0330201 Gear, reverse
9 0341223 Propeller shaft
10 0316505 Spring, detent
11 0316506 Ball, detent
12 0325263 Shifter, clutch dog
13 0388416 Shifter lever yoke assy.
14 0308376 Pivot pin, shift lever
15 0332584 Washer, seal ring
16 0386186 Roller bearing, forward gear
17 0338190 Pinion, driveshaft
18 0336296 Thrust washer, lower pinion
19 0388000 Thrust bearing, pinion
21 0438617 Gearcase assy, This part replaces 0435393.
22 0386014 Bearing assembly, driveshaft
23 0318874 Sleeve, bearing driveshaft
24 0321480 Seal, driveshaft
25 0301877 O ring shift rod
26 0304765 Bushing, shift rod
27 0321738 Washer, seal, shift rod
28 0386071 Bearing assy., pinion to gearcase
29 0338635 Anode
30 0338443 Screen, inlet
31 0304013 Screw, anode
32 0325539 Screw, sceen to gearcase
33 0121470 Locknut, hook bolt to cross bar
34 0307551 Screw
35 0311598 Seal
36 0325014 Cradle, clutch dog
37 0327035 Grommet, water tube lower
38 0435390 Impeller hsg. seal assy.
39 0318972 Seal, oil
41 0302325 Screw, impeller housing
42 0318995 Plate, impeller housing
42 0318995 Plate, impeller housing This part replaces 0319988.
43 0341590 Driveshaft, standard
44 0328522 Cotter pin
45 0318971 Nut
46 0323942 Spacer
47 0318992 Shift rod lower, standard
48 0304024 Screw
49 0303794 Connector
50 0324097 Cup, impeller housing
50 0323535 Cup
51 0174938 Propeller, 9 1 4 x 8 al
52 0332395 Converging ring
53 0386119 Bushing, propeller
54 0334590 Thrust bushing, prop.
55 0341206 Screw
56 0386084 Impeller
67 0319085 Seal
68 0301551 Washer, lock
69 0300611 . dowel, bearing
0434135 0434135 Extension kit assy.
43 0341591 Driveshaft, long
47 0319298 Rod,shift
48 0304024 Screw
49 0303794 Connector
57 0319340 Extension
58 0320025 Extension
59 0202893 "o" ring, drive shaft
60 0326922 Exhaust seal, gearcase ext v
61 0341206 Screw
62 0331152 Extension
67 0319085 Seal
68 0301551 Washer, lock
43 0328299 Drieshaft,sel only
47 0328300 Shift rod lower
62 0395894 Extension, gearcase
63 0328301 Sleeve, extension
64 0328302 Bushing, extension
65 0319340 Extension
66 0341206 Screw
70 0394711 Chrome pump kit This part replaces 0391698.
70 0394711 Chrome pump kit
71 0394711 Chrome pump kit This part replaces 0389114.
72 0396350 Gearcase seal kit
