EVINRUDE-JOHNSON 395209 Prop Shaft Assy

Write a Review
$540.49
SKU:
395209-OMC
Schematic Object Key:
18

EVINRUDE-JOHNSON 395209 Prop Shaft Assy

$540.49

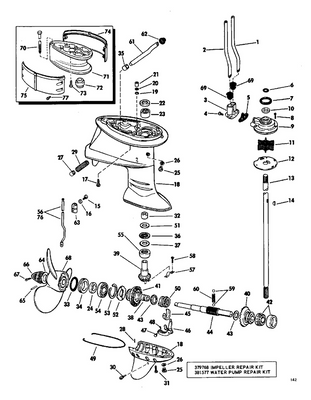

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 395209 Prop Shaft Assy

Schematic Object Key : 18

Product Description: Prop Shaft Assy

Category: JOHNSON / 1990 / 120 / VJ120TLESB 1990 / GEARCASE - 140TX STANDARD ROTATION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0439973 Gearcase bearing assy. This part replaces 0431695.
2 0387817 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring
5 0321123 Screen, water intake
6 0160084 Ball
7 0321122 Spacer, shift rod
8 0382408 Thrust bearing
9 0317624 Screw, driveshaft hsg
10 0389455 Bearing hsg assy, fwd gear
10A 0331880 Pin, housing to gearcase
11 0915954 Detent, shifter This part replaces 0323946.
12 0911962 Spring
13 0334163 Cradle, shifter
14 0322938 Lever, shift
15 0322941 Arbre, commande de sens de marche
16 0328825 Pin, shift lever
17 0305123 O ring This part replaces 0321119.
18 0395209 Prop shaft assy
0433632 0433632 Driveshaft assy.
19 0335684 Driveshaft spring
20 0311538 Roll pin, driveshaft
21 0345905 Driveshaft, lower This part replaces 0335677.
22 0335678 Driveshaft assy., upper
23 0352165 Gasket, shift rod cover This part replaces 0324670.
24 0432688 Bearing housing seal assy
25 0382407 Bearing assy, forward gear
26 0387247 . needle bearing assy.
27 0320862 . seal
28 0350271 Screw This part replaces 0333955.
29 0354731 O ring This part replaces 0314728.
30 0314731 Rondelle de butée, engrenage de marche arrière
31 0314730 Nut, pinion to driveshaft
32 0435123 Gear pinion assy. This part replaces 0433841.
33 0387656 Butée, arbre d'entraînement
34 0327656 Rondelle de butée, arbre d'entraînement
35 0389042 Thrust bearing assembly, foward gear
36 0329865 Shift rod
37 0332725 Gear, reverse
38 0337774 Shifter, clutch dog This part replaces 0334516.
39 0313448 Pin, clutch dog
40 0324369 Spring, clutch dog pin
41 0318544 Screw, fill drain
42 0333572 O ring
43 0323362 Cale, 0,003" 0,07 mm
43 0323361 Cale, 0,004" 0,10 mm
43 0314745 Cale, 0,005" 0,12 mm
44 0327669 Thrust washer, forward gear
45 5006241 Couvercle joint, tige de commande de sens de marche This part replaces 0388618.
46 0318372 "o" ring, shift rod
47 0318544 Screw, fill drain
47A 0333572 O ring
48 0302325 Screw, impeller housing
49 0439476 Bearing housing seal This part replaces 0397493.
50 0329922 Joint, supérieur
50A 0329923 Joint, inférieur
51 0431708 Anode, bearing housing
52 0908158 Screw, anode
53 0333957 Languette, de retenue
54 0435027 Cup plate This part replaces 0330380.
54 0435526 Chrome cup plate kit This part replaces 0330383.
55 0435485 Impeller housing assy. This part replaces 0395040.
56 0320570 Spacer, nut
57 0335221 Screw, cylinder to bracket This part replaces 0328715.
58 0314008 Bague, tube à eau vers capot
59 0338893 Capot, carter de turbine This part replaces 0321159.
60 0338742 Compensateur de dérive This part replaces 0327640.
61 0320943 Bague, pompe vers carter d'échap.
62 0310585 "o" ring, driveshaft to crankcase
63 0435027 Cup plate This part replaces 0330379.
63 0435526 Chrome cup plate kit This part replaces 0330384.
64 0306643 Screw
65 0313715 Screw, cap, hex hd, 7 16 14 x 1
66 0330263 Screw, upper mount retention
67 5008966 Nut keeper, propeller This part replaces 0398042.
68 0306394 Cotter pin
69 0330265 Washer
70 0331998 Screw, gearcase to housing
71 0328096 Screw
72 0331999 Screw, gearcase housing
73 0331353 Seal, impeller housing plate.
74 5001593 Impeller assembly This part replaces 0395864.
75 0331107 Clavette, turbine
76 0436745 Anode This part replaces 0393023.
77 0321008 Grommet, exh hsg to shift rod
78 0333592 Thrust bushing
79 0338484 Gasket, imp. hsg. plate This part replaces 0324701.
80 0332000 Seal ring
81 0391536 Prop, 15 1 2 x 13
81 0391535 Prop, 15 1 2 x 15
81 0765187 Propeller, wdex models This part replaces 0391200.
81 0391201 Prop, 14 1 2 x 19
81 0391202 Prop, 14 1 2 x 21
81 0391203 Bearing assy,rear,std
81 0389925 Prop, 15 x 16 sst
81 0391290 Prop, 15 x 17 sst
81 0389924 Prop, 14 1 2 x 19 sst
81 0389923 Prop, 14 1 2 x 21 sst
81 0389019 Prop, 14 1 2 x 23 sst
81 0390831 Prop, 14 1 2 x 14 sst
82 0387157 Bushing assy, prop, std
83 0332394 Converging ring
84 0313926 Propeller hub sleeve
85 5001594 Water pump repair kit This part replaces 0395060.
85 5001594 Water pump repair kit This part replaces 0395062.
87 5006373 Gearcase seal kit This part replaces 0396353.
88 0435526 Chrome cup plate kit This part replaces 0395059.
