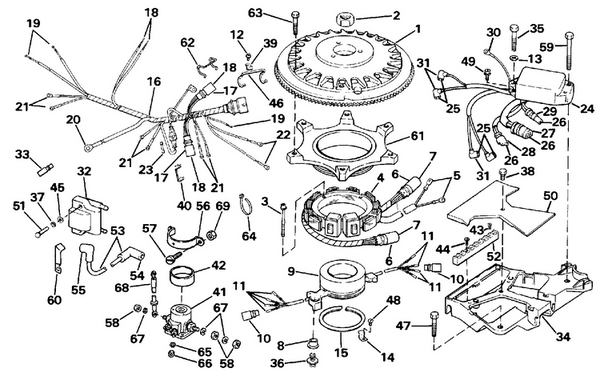

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 50
Product Description: Cover Assy.
Category: JOHNSON / 1986 / 300 / J300TLCDC 1986 / IGNITION SYSTEM - 35 AMP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0583969 | Flywheel assy. | This part replaces 0583281. |
2 | 0326042 | Nut, flywheel | |
3 | 0325135 | Screw, stator mounting | |
4 | 0583117 | Stator assy | |
5 | 0512522 | Terminal, ring | |
6 | 0512746 | Connecteur, 2 broches | |
7 | 0511469 | Terminal, pin | |
8 | 0329168 | Socket | |
9 | 0583148 | Timer base sensor assy. | |
10 | 0512754 | Connector | |
11 | 0511469 | Terminal, pin | |
12 | 0323937 | Screw | |
13 | 0328703 | Washer, screw hook | |
14 | 0331927 | Retainer, timer base | |
15 | 0313666 | Ret., distributor base 1 | |
16 | 0583033 | Engine cable assy. | |
17 | 0512748 | Connector, 3 pin | |
18 | 0511469 | Terminal, pin | |
19 | 0308808 | Cosse, plate | |
20 | 0204053 | Borne, anneau 0,312" 7,9 mm diamètre | |
21 | 0511829 | Ring terminal | |
22 | 0510780 | 8 ring termianl | |
23 | 0510884 | Fuse, 20 amp. | |
24 | 0582262 | Power pack | This part replaces 0581404. |
25 | 0512256 | Broche, prise bobine primaire | |
26 | 0581656 | Terminal, socket | |
27 | 0512753 | Connector, 5 socket plug | |
28 | 0512748 | Connector, 3 pin | |
29 | 0123404 | Connector, 1 socket plug | |
30 | 0510818 | Terminal, ring | |
31 | 0512478 | Couvercle, alvéole bobine primaire | |
32 | 0582508 | Coil assy | |
33 | 0123405 | Connector | |
34 | 0582696 | Electrical bracket assy. | |
35 | 0324814 | Ecrew,exhaust cover,1 1 2"long | |
36 | 0330368 | Bushing, timber base | |
37 | 0328701 | Lockwasher, double ended bolt | |
38 | 0312241 | Screw, electrical bracket | |
39 | 0326365 | Clip, spring | |
40 | 0321077 | Retainer | |
41 | 0586180 | Ensemble solénoïde | This part replaces 0395419. |
42 | 0311217 | Sleeve | |
43 | 0329182 | Screw, ground terminal | |
44 | 0306644 | Screw, rectifier mounting | |
45 | 0328703 | Washer, screw hook | |
46 | 0315182 | Clamp, cables | |
47 | 0303398 | Screw, lower | |
48 | 0306803 | Screw, retainer clamp | |
49 | 0329182 | Screw, ground terminal | |
50 | 0395312 | Cover assy. | |
51 | 0328725 | Screw, cover to gearcase | |
52 | 0512656 | Terminal block | |
53 | 0582365 | H.t. lead assembly, spark plugs to ignition coil | |
54 | 0581027 | Cover terminal assy, spark plug | |
55 | 0580339 | Cover terminal assy, coil | |
56 | 0330112 | Clamp, solenoid | |
57 | 0302325 | Screw, impeller housing | |
58 | 0311349 | Nut, solenoid | |
59 | 0312495 | Screw, adapter to inner hsg. | |
60 | 0316487 | Retainer | |
61 | 0912059 | Pulley, flywheel | |
62 | 0512742 | Retainer, connector | |
63 | 0325115 | Screw | |
64 | 0320107 | Tie strap | |
65 | 0304454 | Lock washer | |
66 | 0306556 | Nut, leaf screw | |
67 | 0331259 | Lock washer | |
68 | 0394925 | Cable, starter | |
69 | 0203688 | Nut | This part replaces 0328710. |
