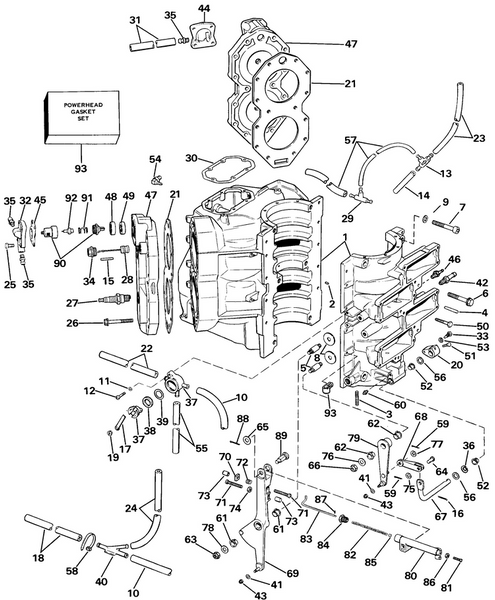

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 94
Product Description: Powerhead Gasket Set
Category: EVINRUDE / 1985 / 140 / E140TLCOS 1985 / CYLINDER & CRANKCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0393853 | Cylinder c'case assy. | |
2 | 0304178 | Pin, dowel | |
3 | 0314616 | Stud | |
4 | 0331095 | Pin, c c taper | |
5 | 0338653 | Stud, shift throttle levers | This part replaces 0320808. |
6 | 0326891 | Screw, cylinder to crankcase | |
7 | 0326890 | Screw, cylinder to crankcase | |
8 | 0320744 | Washer, stud | |
9 | 0304671 | Lockwasher, coupler to flywheel | |
10 | 0330372 | Hose, control valve to aspirator | |
11 | 0303715 | Washer, rivet | |
12 | 0329892 | Screw, housing | |
13 | 0394892 | Check valve assy. | |
14 | 0772570 | Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm | This part replaces 0330471. |
15 | 0303806 | Tubing | |
16 | 0330145 | Cotter pin | |
17 | 0329740 | Arm, control arm | |
18 | 0331887 | Hose, overboard | |
19 | 0315094 | Bushing | |
20 | 0326644 | Lever, shift rod | |
21 | 0328623 | Gasket | |
22 | 0330366 | Hose, control valve to cover | |
23 | 0772570 | Flexible, évent vers silencieux d'admission d'air , 2 1 4" 57 mm | This part replaces 0330469. |
24 | 0331886 | Hose, elbow to tee | |
25 | 0909533 | Screw, adapter | |
26 | 0322323 | Screw | |
27 | 0502180 | Spark plug, champion ql77jc4 | This part replaces 0387633. |
28 | 0386686 | Switch temp | |
29 | 0325569 | Tee, primer solenoid hoses | |
30 | 0344472 | Gasket, rect. reg. to cyl. block | This part replaces 0330412. |
31 | 0330365 | Hose, oil cooler to aspirator | |
32 | 0329745 | Cover, thermostat stbd | |
33 | 0327590 | Pin, shift lever | |
34 | 0329562 | Cache, interrupteur | |
35 | 0330272 | Fitting | |
36 | 0306012 | Bow washer | |
37 | 0394407 | Control valve | |
38 | 0329787 | Seal | |
39 | 0330262 | Wiper | |
40 | 0330474 | 30 tee, water return hoses | |
41 | 0328737 | Washer | |
42 | 0395700 | Flame arrester | |
43 | 0328064 | Nut | |
44 | 0329744 | Cover, thermostat, port | |
45 | 0394408 | Diaphragm, thermostat cover | |
46 | 0392988 | Check valve | |
47 | 0395043 | Cylinder head | |
48 | 0330273 | Cap, thermostat | |
49 | 0320880 | Seat | |
50 | 0302288 | Bolt | |
51 | 0328695 | Clamp, engine cable | |
52 | 0312708 | Bushing | |
53 | 0302290 | Washer | |
54 | 0321886 | Elbow | |
55 | 0331838 | Hose, adapter to control valve | |
56 | 0202026 | Washer, rod | |
57 | HOSE, Drain system | ||
58 | 0320107 | Tie strap | |
59 | 0305650 | Cotter pin | |
60 | 0313607 | Lube fitting | |
61 | 0308532 | Bague, levier de verrouillage | |
62 | 0308532 | Bague, levier de verrouillage | |
63 | 0315077 | Locknut, 3 8 24 ss | |
64 | 0340134 | Pin, shift lever | This part replaces 0324364. |
65 | 0330995 | Washer, override spring | |
66 | 0315077 | Locknut, 3 8 24 ss | |
67 | 0329083 | Lever, shift | |
68 | 0340133 | Link, shift lever | This part replaces 0329085. |
69 | 0432649 | Throttle lever | This part replaces 0393563. |
70 | 0203688 | Nut | |
71 | 0334220 | Screw, cps bracket | This part replaces 0306530. |
72 | 0308993 | Ressort, friction d'accélération | |
73 | 0318660 | Bumper, screw, throttle stop | |
74 | 0328741 | Nut, input stud | |
75 | 0328702 | Washer | |
76 | 0328708 | Washer, injector screw | |
77 | 0328702 | Washer | |
78 | 0328708 | Washer, injector screw | |
79 | 0433481 | Shift arm | This part replaces 0393873. |
75 | 0328702 | Washer | |
76 | 0328708 | Washer, injector screw | |
77 | 0328702 | Washer | |
78 | 0328708 | Washer, injector screw | |
79 | 0433481 | Shift arm | This part replaces 0393873. |
80 | 0396667 | Link assy., spark advance | This part replaces 0393569. |
81 | 0302677 | Screw | |
82 | 0326738 | Spring, link | |
83 | 0331863 | Rod, spark advance link | This part replaces 0328632. |
84 | 0331864 | Cap, spring housing | This part replaces 0328634. |
85 | 0328635 | Bushing, spring | |
86 | 0328712 | Ãcrou, montage instrument | |
87 | 0329770 | Pin, rod | |
88 | 0330145 | Cotter pin | |
89 | 0328636 | Pin, advance link | |
90 | 0434137 | Thermostat assy, | This part replaces 0394409. |
91 | 0434137 | Thermostat assy, | This part replaces 0329766. |
92 | 0394411 | Thermostat seat assy. | |
93 | 0317000 | Cable, starter cable | This part replaces 0318190. |
94 | 0396750 | Powerhead gasket set |
