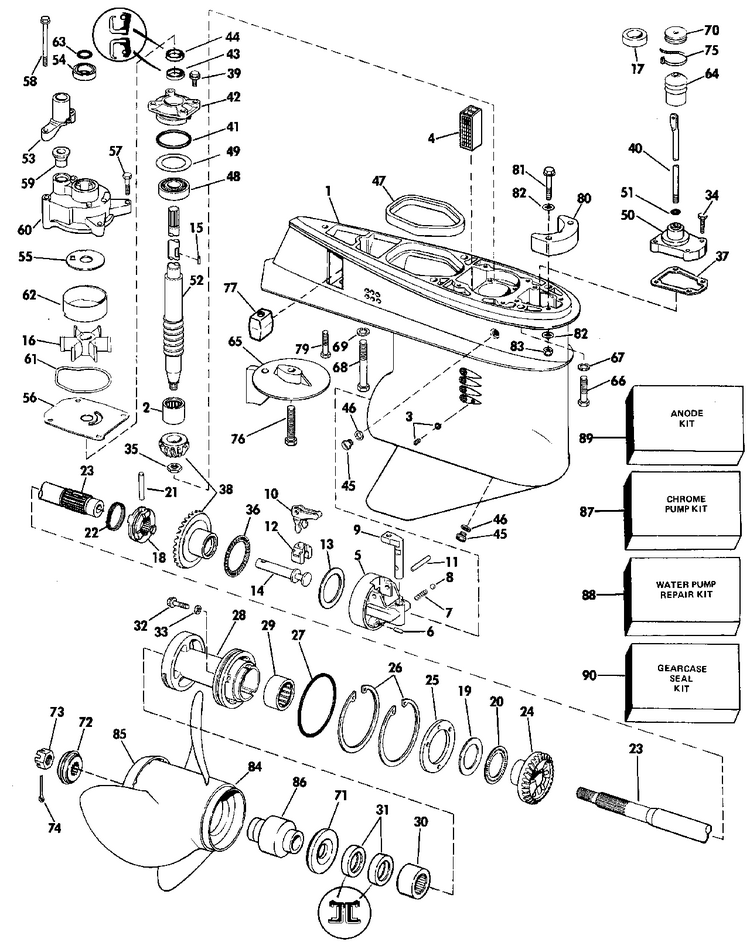

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 52
Product Description: Driveshaft Assy., Long
Category: EVINRUDE / 1988 / 40 / E40ELCCS 1988 / GEARCASE-ALL MODELS EXCEPT 40AR, 40AE, 40AT
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0396939 | 0396939 | Gearcase assy., std | |
0396940 | 0396940 | Gearcase assy., long | |
1 | 0392196 | Gearcase brg assy | |
2 | 0386766 | . bearing, pinion | |
3 | 0324852 | Retaining screw seal | |
0332584 | 0332584 | Washer, seal ring | |
4 | 0320042 | . screen, water intake | |
5 | 0389637 | Bearing housing pin | |
6 | 0331880 | Pin, housing to gearcase | |
7 | 0312870 | ,spring, detent ball | |
8 | 0160084 | Ball | |
9 | 0322636 | Detent, shifter | |
10 | 0320120 | Lever, shifter | |
11 | 0320415 | Pin, shifter lever | |
12 | 0334163 | Cradle, shifter | |
13 | 0323845 | Thrust washer., fwd. gear | |
14 | 0320172 | Shaft, shifter | |
15 | 0344470 | Key, impeller | This part replaces 0330619. |
16 | 0396809 | Impeller assy | |
17 | 0305762 | Seal ring | |
18 | 0319895 | Shift,clutch dog | |
19 | 0320115 | Thrust washer | |
20 | 0386719 | Thrust bearing, rev gear | |
21 | 0320310 | Pin, clutch dog | |
22 | 0320311 | Spring, clutch dog pin | |
23 | 0386659 | Propeller shaft assy | |
24 | 0319766 | Gear, reverse | |
25 | 0320304 | Retainer plate, brg hsg | |
26 | 0320309 | Retainer ring | |
27 | 0320303 | O ring, housing | |
28 | 0386920 | Bearing housing assy | |
29 | 0386764 | Bearing assy, front | |
30 | 0386765 | Bearing assy, rear | |
31 | 0321467 | . oil retainer | |
32 | 0320041 | Screw, housing to gearcase | |
33 | 0332584 | Washer, seal ring | |
34 | 0302325 | Screw, impeller housing | |
35 | 0313339 | Nut, pinion to driveshaft | |
36 | 0389297 | Thrust bearing | |
37 | 0314082 | Gasket, cover to gearcase | |
38 | 0397128 | Gearset assy. | |
39 | 0909386 | Screw, housing to gearcase | |
40 | 0327366 | Shift rod | |
40 | 0327367 | Shift rod | |
41 | 0302588 | "o" ring, bearng hsg. | |
42 | 0387067 | Bearing housing seal assy | |
43 | 0321466 | . oil retainer, driveshaft | |
44 | 0332205 | Seal, adapter | |
45 | 0307551 | Screw | |
46 | 0333572 | O ring | |
47 | 0324937 | Seal, gearcase to inner exh. hsg. | |
48 | 0385175 | Cone goller assy. | |
49 | 0320166 | Shim, . 003" | |
49 | 0320167 | Shim , . 004" | |
49 | 0320168 | Shim, . 005" | |
49 | 0320169 | Shim , . 006" | |
49 | 0320170 | Shim , . 007" | |
50 | 0387336 | Cover assembly. | |
51 | 0318372 | "o" ring, shift rod | |
52 | 0393811 | Driveshaft assy., std. | |
52 | 0396812 | Driveshaft assy., long | |
53 | 0315838 | Bracket, water tube | |
54 | 0341732 | Grommet, housing | This part replaces 0315748. |
55 | 0320776 | Plate, impeller housing | |
56 | 0320981 | Plate, impeller housing | |
57 | 0302325 | Screw, impeller housing | |
58 | 0331980 | Screw, bracket, port | |
59 | 0315837 | Grommet, water tube | |
60 | 0384087 | Impelelr hsg., gearcase | |
61 | 0315788 | Seal, impeller housing | |
63 | 0339543 | O ring | This part replaces 0303059. |
64 | 0317922 | Seal, shift rod | |
65 | 0338742 | Compensateur de dérive | This part replaces 0327640. |
66 | 0305282 | Bolt, bowl suction piece | |
67 | 0307708 | Lock washer, mounting | This part replaces 0302865. |
68 | 0313697 | Scr,grc to hsg.long | |
69 | 0306314 | L'washer,scr,long | |
70 | 0321452 | Grommet | |
71 | 0320305 | Thrust bushing | |
72 | 0315810 | Spacer, impeller nut | |
73 | 0314503 | Nut, impeller | |
74 | 0314502 | Cotter pin | |
75 | 0320107 | Tie strap | |
76 | 0320040 | Screw, trim tab std. models | |
76 | 0328561 | Screw, gearcase mounting | |
77 | 0327482 | Block, gearcase | |
77 | 0436745 | Anode | This part replaces 0393023. |
79 | 0322000 | Screw, starter motor | |
79 | 0328096 | Screw | |
80 | 0392462 | Anode and insert | |
81 | 0324430 | Screw, anode | |
82 | 0307555 | Lock washer, anode | |
83 | 0313022 | Locknut, double ended bolt | |
84 | 0386907 | Propeller 13 x 11 | |
84 | 0386909 | Propeller, 12 1 2 x 13 | |
84 | 0386786 | Propeller, 11 3 4 x 15 | |
84 | 0386841 | Propeller | |
84 | 0176423 | Propeller, 11 1 4 x 19 aluminum | This part replaces 0386908. |
84 | 0390849 | Propeller, 11 1 2 x 13 sst | |
84 | 0390850 | Propeller, 12 1 4 x 15 sst | |
84 | 0390851 | Propeller, 11 3 4 x 17 sst | |
84 | 0390852 | Propeller, 11 1 4 x 19 sst | |
84 | 0391014 | Propeller 11 1 4 x 21 | |
84 | 0391015 | Propeller 11 1 4 x 21 sst | |
85 | 0332543 | Converging ring | |
86 | 0386787 | Propeller bushing assy | |
87 | 0389135 | Chrome pump kit | |
88 | 0396932 | Water pump repair kit | |
88 | 0396933 | Water pump repair kit includes impeller housing | |
89 | 0392461 | Anode kit | |
90 | 0396355 | Gearcase seal kit |
