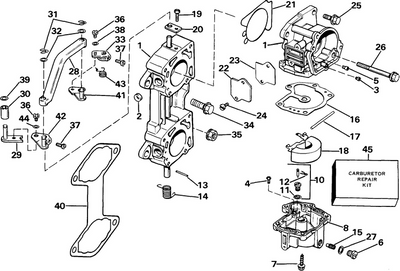

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 27A
Product Description: Carb Body 120
Category: EVINRUDE / 1985 / 140 / E140TXCOS 1985 / CARBURETOR AND LINKAGE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0395038 | Carb. assy. | |
| 1 | 0393571 | Carb. assy. | |
| 1A | 0397568 | Throttle body 120 | |
| 1A | 0397570 | Throttle body 140 | |
| 2 | 0202310 | Core plug | |
| 3 | 0331952 | Orifice, idle air bleed, no. 14 | |
| 3 | 0331952 | Orifice, idle air bleed, no. 14 | |
| 4 | 0326164 | Screw, hinge pin | |
| 5 | 0325828 | Orifice 43, 250 | |
| 5 | 0327745 | Orifice, 40 | |
| 6 | 0327116 | Screw, plug | |
| 7 | 0328649 | Screw, bowl to body | |
| 8 | 0398701 | Float chamber assy. | This part replaces 0391733. |
| 10 | 0396522 | Ensemble soupape à flotteur | This part replaces 0382889. |
| 11 | 0301996 | Gasket | |
| 12 | 0336842 | Clip, spring | This part replaces 0603145. |
| 13 | 0303261 | Roll pin, return spring | |
| 14 | 0332254 | Spring, throttle return | This part replaces 0328643. |
| 15 | 0322907 | Orifice, intermediate no. 57d | |
| 15 | 0319831 | Orifice, high speed, 59d 150 | |
| 16 | 0338813 | Gasket, float bowl | This part replaces 0326830. |
| 17 | 0326865 | Pin, float | |
| 18 | 0391508 | Float assy | |
| 19 | 0328714 | Screw, clip | |
| 20 | 0328765 | Attache | |
| 21 | 0328650 | Seal, carb, body | |
| 22 | 0328640 | Cover plate | |
| 23 | 0327223 | Gasket, cover plate | This part replaces 0328641. |
| 24 | 0315656 | Screw | |
| 25 | 0328744 | Screw, clamp 1 4 20 x .75 | |
| 26 | 0324424 | Screw, carb. body, long | |
| 27 | 0305739 | "o"ring,valve seat | |
| 27A | 0397567 | Carb body 120 | |
| 27A | 0397569 | Carb body 140 | |
| 28 | 0435908 | Link, carburetor | This part replaces 0329755. |
| 29 | 0391807 | Lever pin, cam follower | |
| 30 | 0330130 | Roller | |
| 31 | 0329559 | Retaining ring | |
| 32 | 0310540 | .washer, shaft | |
| 33 | 0329753 | Lever port | |
| 34 | 0317624 | Screw, driveshaft hsg | |
| 35 | 0316355 | But, carburetor mounting | |
| 36 | 0306014 | Screw, throttle adjustment | |
| 37 | 0319108 | Screw belcrank | |
| 38 | 0328735 | Washer, screw, ball joint | |
| 39 | 0308776 | O ring | |
| 40 | 0332319 | Gasket, carburetor mounting | This part replaces 0326838. |
| 41 | 0394412 | Lever pin, port | |
| 42 | 0394413 | Lever pin, stbd. | |
| 43 | 0329526 | Spring, link adjustment | |
| 44 | 0328735 | Washer, screw, ball joint | |
| 45 | 0396676 | Carb. repair kit, 200tx |
