EVINRUDE-JOHNSON 398304 Shock Absorber Assy.

Write a Review
$119.00
SKU:
398304
Schematic Object Key:
38

EVINRUDE-JOHNSON 398304 Shock Absorber Assy.

$119.00

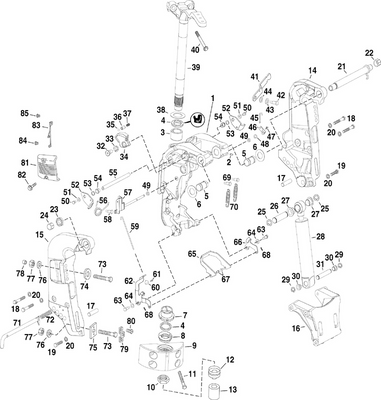

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 398304 Shock Absorber Assy.

Schematic Object Key : 38

Product Description: Shock Absorber Assy.

Category: EVINRUDE / 1999 / 105 / E105WELEEN 1999 / STERN & SWIVEL BRACKET -- 105WE MODELS

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0439582 Swivel bracket
2 0313607 Lube fitting
3 0329291 Bushing
4 0320937 Seal
5 0329292 Support ring
6 0330605 Anchor screw
7 0438082 Steering arm assy.
7 5000702 Steering arm assy.
8 0327696 Keeper, pivot shaft
9 0328696 Screen, ground lead
10 0321035 Brushing, swivel bracket
11 0320866 Rondelle de butée, arbre d'articulation
12 0340006 Bracket, mount
13 0320746 Ecrou, support de montage
14 0553766 Bow washer
15 0307708 Lock washer, mounting
16 0552968 Screw, plate 3 8 16 x 1.5
16 0318612 Screw, bracket to cover
17 0321920 Spring, reverse lock
18 0434632 Monture caoutchouc, inférieur
19 0334936 Screw, mount
20 0301551 Washer, lock
21 0332697 Retainer, spring
22 0335553 Tilt tube This part replaces 0321052.
23 0335554 Locknut, tilt tube
24 0322624 Washer, lag screw This part replaces 0313169.
25 0318462 Spring, shifter lock
26 0318372 "o" ring, shift rod
27 0332688 Spacer
28 0301161 Rondelle, vis plaque de commande
29 0433458 Anode, port stern bracket
30 0333350 Screw, anode
31 0438110 Handle screw assy.
32 0332875 Link, reverse lock, port
33 0332698 Spring, trail lock
34 0332690 Spacer, bellcrank shaft
35 0332689 Spring, trail lock return
36 0397730 Lever shaft
37 0909676 Screw
38 0398304 Shock absorber assy.
39 0584136 Fil, masse
40 0328724 Screw
41 0344277 Screw, upper mount
41 0912345 Screw, upper mount
43 0123077 Screw, bracket, remote model
44 0204757 Bow washer
45 0333304 Stern bracket, starboard
46 0910992 Rondelle, tube de relevage
47 0302858 Cotter pin, shoulder bolt
48 0303887 Washeer, pin to swivel bracket
49 0320792 Pin
50 0322481 Bushing, tilt cylinder
51 0319108 Screw belcrank
52 0321054 Spring clip
53 0363254 Nut, stern bracket screw This part replaces 0313623.
54 0307238 Rondelle
55 0320248 Rondelle, écrou
56 0318273 Bolt hex retainer 1 2 in.
57 0319886 Screw
58 0318572 Bolt thread protective cap 1 2 in.
59 0318573 3.5" bolt This part replaces 0327053.
59 0318573 3.5" bolt
59 0363012 Screw, bracket mounting This part replaces 0336676.
59 0331578 Engine mount bolt 5 x 1 2 in.
59 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0321577.
60 0318272 Nut backing plate square 1 2 in.
61 0436541 Rod assy, thrust
62 0321053 Sorubg,thrust rod
63 0321246 Bushing, shock lower
64 0333303 Stern bracket assy., port
65 0390442 Locating lever, rod
66 0330889 Spacer, stern bracket
67 0321591 Pin, link to locking
68 0321592 Pin, link to swivel bracket
69 0332692 Rod, reverse lock lever
70 0321695 Pin, cylinder, lower
71 0332687 Link, reverse lock, starboard
72 0332691 Bellcrank
73 0329109 Shoulder screw
74 0321750 Locking lever, reverse lock
75 0334345 Retainer, lock spring
77 0584120 Ground lead
78 0328696 Screen, ground lead
80 0321735 Support, stern bracket
81 0330266 Washer, trail lock lever This part replaces 0552993.
82 0552938 Locking nut, 3 8 x 24
83 0332693 Collar, reverse lock release
84 0312863 Pin, trail lock lever stop
85 0304221 Scew,collar to cable
