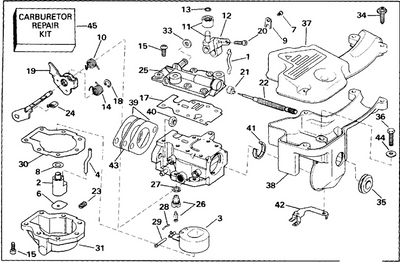

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 30
Replacement: This part (431632) replaces 0386417.
Product Description: Needle Valve, Slow Speed
Category: JOHNSON / 1976 / 55 / 55E76E 1976 / CARBUETOR
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 0387309 | 0387309 | Carb assy.,upper | |
| 0387310 | 0387310 | Carb assy.,lower | |
| 1 | 0387436 | Body assy.,upper | |
| 1 | 0387437 | Body assy.,lower | |
| 2 | 0304201 | Lead shot | |
| 3 | 0313365 | . throttle valve | |
| 4 | 0307542 | Core plug | |
| 5 | 0306422 | Nut | |
| 6 | 0314513 | Fitting, fuel inlet | |
| 7 | 0312852 | . screw, throt. choke valve | |
| 8 | 0313357 | . spring, throttle | |
| 9 | 0322182 | Choke valve | This part replaces 0313359. |
| 10 | 0307901 | Roll pin | |
| 11 | 0382368 | . choke shaft | |
| 11 | 0387811 | Choke shaft assy | This part replaces 0384237. |
| 12 | 0384731 | . throttle shaft | |
| 13 | 0315074 | . bow washer | |
| 14 | 0300803 | . washer, screw | |
| 15 | 0302812 | Screw, ground terminal | |
| 16 | 0313973 | Nut, push | |
| 17 | 0307382 | . shoulder screw | |
| 18 | 0308199 | . roller, cam follower | |
| 19 | 0328739 | Rondelle entre ancrage et support | This part replaces 0313396. |
| 20 | 0382370 | . lever pin assy | |
| 21 | 0314592 | . spring, override | |
| 22 | 0387308 | Lever pin assy. | |
| 23 | 0314301 | . pin, detent | |
| 24 | 0307596 | . washer, throttle shaft | |
| 25 | 0307175 | ,,screw ,housing | |
| 26 | 0303630 | Washer | |
| 27 | 0396521 | Float valve seat assy | This part replaces 0378895. |
| 28 | 0301996 | Gasket | |
| 29 | 0315232 | Retainer , needle valve stbd | |
| 30 | 0431632 | Needle valve, slow speed | This part replaces 0386417. |
| 31 | 0382363 | Float arm assembly | |
| 32 | 0302661 | Hinge pin, float | |
| 33 | 0387077 | Float chamber assy | |
| 33 | 0383318 | Float chamber assembly | |
| 34 | 0309781 | . plug, float chamber | |
| 35 | 0321407 | Orfice plug 54d | |
| 36 | 0307832 | Plug, screw | |
| 37 | 0338880 | Gasket, float bowl | This part replaces 0316331. |
| 38 | 0314166 | Bearing, needle valve | |
| 39 | 0343512 | Gasket, nozzle | This part replaces 0316332. |
| 40 | 0314575 | Pin, throttle shaft | |
| 40 | 0303261 | Roll pin, return spring | |
| 41 | 0316355 | But, carburetor mounting | |
| 42 | 0325092 | Gasket | This part replaces 0314477. |
| 43 | 0396701 | Carburetor repair kit | This part replaces 0384412. |
