EVINRUDE-JOHNSON 432150 Carb Assy., Upper

Write a Review
$99.00
SKU:
432150
Schematic Object Key:
432150

EVINRUDE-JOHNSON 432150 Carb Assy., Upper

$99.00

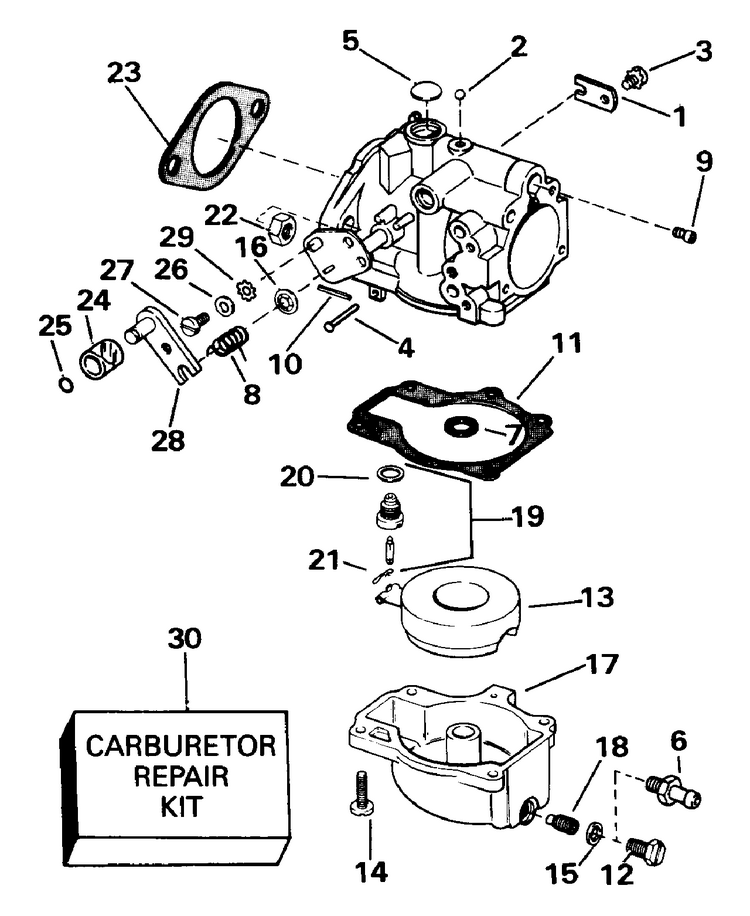

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 432150 Carb Assy., Upper

Schematic Object Key : 432150

Product Description: Carb Assy., Upper

Category: JOHNSON / 1993 / 45 / J45RCETB 1993 / CARBURETOR - ALL 45 MODELS EARLY PRODUCTION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0432150 0432150 Carb assy., upper
0432149 0432149 Carb assy., lower
0431878 0431878 Carb assy., lower
0431879 0431879 Carb assy., lower
1 0329860 Clip
2 0304201 Lead shot
3 0329859 Screw
4 0302661 Hinge pin, float
5 0202310 Core plug
6 0326467 Nipple, vapor sep, vacuum pick up
7 0343512 Gasket, nozzle This part replaces 0338881.
8 0313357 . spring, throttle
9 0323149 High speed orifice, no. 38
9 0327745 Orifice, 40
10 0314575 Pin, throttle shaft
11 0338880 Gasket, float bowl
12 0330057 Screw plug
13 0382363 Float arm assembly
14 0333430 Screw, float bowl
15 0303630 Washer
16 0313973 Nut, push
17 0344271 Float chamber assy This part replaces 0330195.
18 0323280 Orifice, no. 45d, 60, 40jpl models
18 0328525 Orifice plug
19 0396521 Float valve seat assy
20 0301996 Gasket
21 0336842 Clip, spring
22 0316355 But, carburetor mounting This part replaces 0315204.
23 0325092 Gasket
24 0397499 Roller sleeve assy.
25 0308776 O ring
26 0328735 Washer, screw, ball joint
27 0328714 Screw, clip
28 0397036 Lever pin
29 0303701 Lock washer, adjustment screw
30 0396701 Carburetor repair kit
