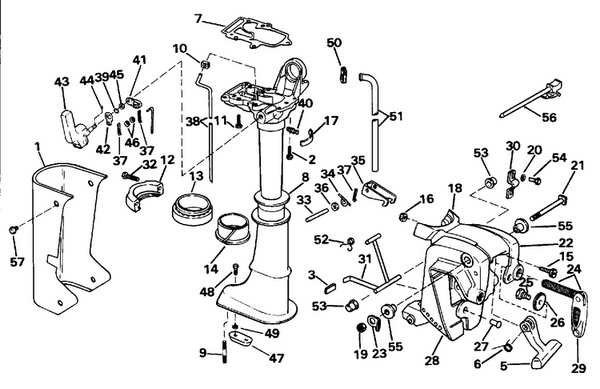

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 56
Product Description: Pin, Tilt Lock Adjustment
Category: JOHNSON / 1996 / 3 / BJ3REDS 1996 / MIDSECTION
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0344545 | Cover, pivot bearing, jo., white | This part replaces 0338172. |
| 1 | 0342190 | Cover, pivot bearing | |
| 1 | 0344544 | Cover, pivot bearing, ev., blue | This part replaces 0211988. |
| 2 | 0333710 | Screw, anchor bracket | This part replaces 0332012. |
| 3 | 0335997 | Sleeve, tilt bracket | |
| 5 | 0335317 | Carrying handle | |
| 6 | 0336038 | Spring, carrying handle | |
| 7 | 0336089 | Gasket, cylinder to exhaust hsg | |
| 8 | 0344971 | Housing, exhaust | This part replaces 0335318. |
| 8 | 0344971 | Housing, exhaust | This part replaces 0437763. |
| 9 | 0330666 | Screw, gearcase mounting | This part replaces 0341982. |
| 10 | 0310258 | Grommet, water tube | |
| 11 | 0332026 | Screw oil brkt to fuel brkt | |
| 12 | 0317429 | Retainer assy., pivot brg., upper | |
| 13 | 0317460 | Vibration damdpener, pivot brg., upper lower | |
| 14 | 0323033 | Bearing, pivot, upper lower | |
| 15 | 0314048 | Screw, adj. friction brake | |
| 16 | 0313838 | Nut, bracket to steering arm | |
| 17 | 0317455 | Brake, friction | |
| 18 | 0336019 | Swivel bracket | |
| 19 | 0910928 | Locknut, tilt bolt | |
| 20 | 0303701 | Lock washer, adjustment screw | |
| 21 | 0335340 | Tilting bolt | |
| 22 | 0336009 | Stern bracket assy., port | |
| 23 | 0342068 | Bracket, eye, safety chain | |
| 24 | 0433675 | Clamp scr. hand. assy. | |
| 24 | 0391421 | Clamp screw handle | |
| 25 | 0321922 | Screw, shoulder | |
| 26 | 0337017 | Plate, swivel | |
| 27 | 0202008 | Rivet, stern bracket | |
| 28 | 0342070 | Stern bracket, stbd. | |
| 29 | 0398001 | Handle rivet | |
| 30 | 0335285 | Retainer, tilt bracket | |
| 31 | 0434006 | Tilt bracket | |
| 32 | 0335221 | Screw, cylinder to bracket | This part replaces 0328715. |
| 33 | 0317459 | Pin, reverse lock | |
| 34 | 0200672 | Reverse lock spring | |
| 35 | 0317458 | Reverse lock | |
| 36 | 0303887 | Washeer, pin to swivel bracket | |
| 37 | 0306376 | Cotter pin | |
| 38 | 0327980 | Tube, water std. | |
| 38 | 0327981 | Water tube, long | |
| 39 | 0305739 | "o"ring,valve seat | |
| 40 | 0313607 | Lube fitting | |
| 41 | 0326214 | Bellcrank, shift rod | |
| 42 | 0332292 | Spring, detent | |
| 43 | 0433579 | Shift handle shaft assy. | |
| 44 | 0325792 | Set screw | |
| 45 | 0303887 | Washeer, pin to swivel bracket | |
| 46 | 0303715 | Washer, rivet | |
| 47 | 0173029 | Anode | |
| 48 | 0306643 | Screw | |
| 49 | 0304454 | Lock washer | |
| 50 | 0336228 | Grommet, exhaust relief tube | |
| 51 | 0344972 | Tube, exhaust relief | This part replaces 0336229. |
| 52 | 0335297 | Spring, tilt lock bracket | |
| 53 | 0319518 | Bushing | |
| 54 | 0332226 | Screw, air temperature sensor | |
| 55 | 0333664 | Bushing, tilt bolt | |
| 56 | 0433371 | Pin, tilt lock adjustment | |
| 57 | 0306803 | Screw, retainer clamp |
