EVINRUDE-JOHNSON 433459 Kit Ay,Transom Mtg

Write a Review
$52.49
SKU:
433459
Schematic Object Key:
433459

EVINRUDE-JOHNSON 433459 Kit Ay,Transom Mtg

$52.49

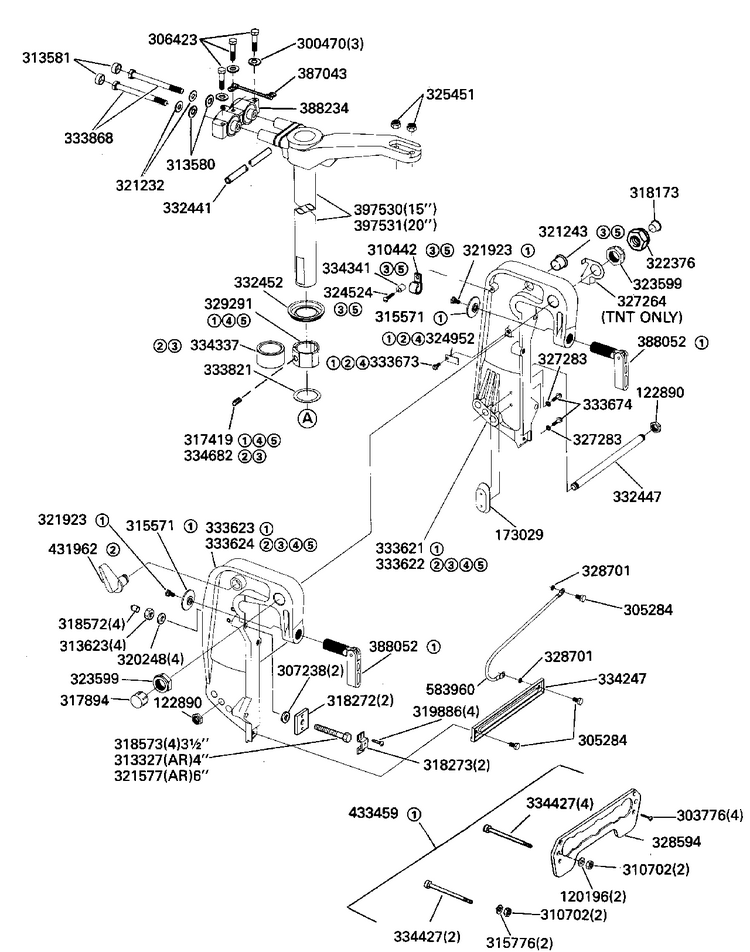

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 433459 Kit Ay,Transom Mtg

Schematic Object Key : 433459

Product Description: Kit Ay,Transom Mtg

Category: EVINRUDE / 1989 / 40 / E40TTLCEC 1989 / STERN AND SWIVEL BRACKET

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0313581 0313581 Bumber, mount screw
0333868 0333868 Screw
0321232 0321232 Retainer washer
0313580 0313580 Washer
0306423 0306423 Bolt
0300470 0300470 No description
0318173 0318173 Plug, stop switch
0321243 0321243 Bushing, cable
0321923 0321923 Plate screw ay
0310442 0310442 Clamp, tps lead
0334341 0334341 Roller
0324524 0324524 Screw, mounting bracket switch
0315571 0315571 . swivel plate
0324952 0324952 Clamp
0332452 0332452 Seal, upper
0329291 0329291 Bushing
0334337 0334337 Bushing
0333821 0333821 Washer
0317419 0317419 Screw
0334682 0334682 Screw
0322376 0322376 Nut, wiper, tilt tube
0323599 0323599 Locknut
0388052 0388052 Clamp screw, handle ay, al
0327283 0327283 Lockwasher
0122890 0122890 Locknut, pulley
0333674 0333674 Screw, start button
0327283 0327283 Lockwasher
0332447 0332447 Pin,tilt
0173029 0173029 Anode
0333621 0333621 Stern bracket, port
0321923 0321923 Plate screw ay
0431962 0431962 Lever assy, tilt assist
0315571 0315571 . swivel plate
0333623 0333623 Stern bracket, starboard
0333624 0333624 Stern bracket, starboard
0318572 0318572 Bolt thread protective cap 1 2 in.
0320248 0320248 Rondelle, écrou
0323599 0323599 Locknut
0317894 0317894 Cap, tilt tube
0122890 0122890 Locknut, pulley
0318573 0318573 3.5" bolt
0307238 0307238 Rondelle
0388052 0388052 Clamp screw, handle ay, al
0318272 0318272 Nut backing plate square 1 2 in.
0319886 0319886 Screw
0318273 0318273 Bolt hex retainer 1 2 in.
0328701 0328701 Lockwasher, double ended bolt
0328701 0328701 Lockwasher, double ended bolt
0433459 0433459 Kit ay,transom mtg
0315776 0315776 Rondelle
0303776 0303776 Screw
0334438 0334438 Knob
0318238 0318238 Screw
0398875 0398875 Lever shaft
0321863 0321863 Washer, latch
0315081 0315081 Bushing, shoulder screw
0333765 0333765 Spring
0334259 0334259 Clip
0332945 0332945 Screw, steering friction
0551113 0551113 Ressort de friction de direction
0315081 0315081 Bushing, shoulder screw
0314390 0314390 Retainer
0432293 0432293 Lever assembly, trail lock
0332435 0332435 Pin
0306014 0306014 Screw, throttle adjustment
0334161 0334161 Anchor block
0334153 0334153 Connecteur, câble d'accélérateur
0328260 0328260 E ring
0334162 0334162 Washer
0319787 0319787 Bushing
0317782 0317782 Thrust washer
0317782 0317782 Thrust washer
0319787 0319787 Bushing
0313607 0313607 Lube fitting
0332439 0332439 Swivel bracket
0334884 0334884 Screw
0332453 0332453 Thrust washer
0583690 0583690 Sender
0332436 0332436 Bushing, cylinder to bracket
0332434 0332434 Bushing, cylinder to bracket
0332434 0332434 Bushing, cylinder to bracket
