EVINRUDE-JOHNSON 433585 Arm & Shaft Assy

Write a Review
$671.49
SKU:
433585
Schematic Object Key:
29

EVINRUDE-JOHNSON 433585 Arm & Shaft Assy

$671.49

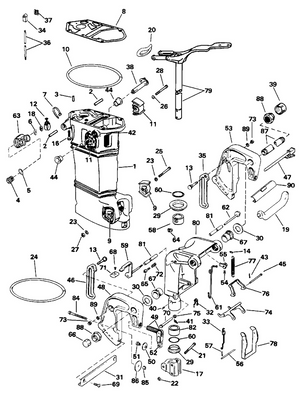

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 433585 Arm & Shaft Assy

Schematic Object Key : 29

Product Description: Arm & Shaft Assy

Category: JOHNSON / 1992 / 35 / J50JENM 1992 / EXHAUST HOUSING & STERN & SWIVEL BRACKET

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0332439 Swivel bracket
1 0350642 Swivel bracket This part replaces 0332440.
2 0313607 Lube fitting
3 0329291 Bushing
4 0332407 Seal
5 0332452 Seal, upper
6 0318572 Bolt thread protective cap 1 2 in.
7 0328260 E ring
8 0320248 Rondelle, écrou
9 0334162 Washer
10 0319886 Screw
11 0318273 Bolt hex retainer 1 2 in.
12 0318272 Nut backing plate square 1 2 in.
13 0317419 Screw
13 0334682 Screw
14 0351896 Tilt tube This part replaces 0321511.
15 0317782 Thrust washer
16 0321863 Washer, latch
17 0332447 Pin,tilt
18 0334259 Clip
19 0315081 Bushing, shoulder screw
20 0333765 Spring
21 0398875 Lever shaft
22 0320866 Rondelle de butée, arbre d'articulation
23 0333621 Stern bracket, port
23 0344104 Stern bracket, port This part replaces 0333622.
24 0391434 Clamp screw, handle ay, ss
24 0388052 Clamp screw, handle ay, al
25 0337018 Swivel plate
26 0334003 Screw, plate
27 0333623 Stern bracket, starboard
27 0333624 Stern bracket, starboard
28 0431962 Lever assy, tilt assist
29 0433584 Arm shaft assy
29 0433585 Arm shaft assy
30 0583690 Sender
31 0333821 Washer
32 0319787 Bushing
33 0332435 Pin
34 0332945 Screw, steering friction
35 0334884 Screw
36 0306014 Screw, throttle adjustment
37 0432293 Lever assembly, trail lock
38 0351018 Gasket, adapter to powerhead This part replaces 0326468.
39 0434674 Cable ay., tilt assist
39 0436202 Cable, tilt assist This part replaces 0434392.
40 0336600 Nut, cable
41 0338118 Housing
42 0305739 "o"ring,valve seat
43 0124378 Seal, fuel inlet
44 0582499 Lead, bonding
45 0908158 Screw, anode This part replaces 0305284.
46 0328701 Lockwasher, double ended bolt
47 0334161 Anchor block
48 0334153 Connecteur, câble d'accélérateur
49 0363254 Nut, stern bracket screw This part replaces 0313623.
50 0551113 Ressort de friction de direction
51 0328703 Washer, screw hook This part replaces 0304051.
52 0334337 Bushing
53 0908158 Screw, anode This part replaces 0305284.
54 0307238 Rondelle
55 0332414 Seal
56 0122890 Locknut, pulley
57 0309705 Screw
58 0553122 Screw
59 0433030 Exh. housing, inner, std
59 0433031 Exh. housing, inner, long
60 0335852 Plug
61 0332425 Exh. hsg,. outer, std.
61 0332427 Exh. hsg., outer, long
62 0314390 Retainer
63 0317894 Cap, tilt tube
64 0332419 Lwr mt brkt
65 0332420 Lwr mt brkt
66 0314949 Screw
67 0332429 Grommet
68 0318573 3.5" bolt
68 0363012 Screw, bracket mounting This part replaces 0313327.
68 0363012 Screw, bracket mounting This part replaces 0336675.
68 0363011 Screw, stern bracket mounting, 1 2 x 5.75 in. 146 mm This part replaces 0321577.
69 0344332 Seal, steering arm This part replaces 0332441.
70 0436470 Mount, upper This part replaces 0388234.
71 0332421 Mount, bracket front
72 0333764 Mount, lower
73 0335554 Locknut, tilt tube
74 0352105 Clamp, cable This part replaces 0327264.
75 0332226 Screw, air temperature sensor This part replaces 0333673.
76 0306470 Lock washer
77 0308825 Screw roller
78 0310442 Clamp, tps lead
79 0327283 Lockwasher
80 0333674 Screw, start button
81 0324952 Clamp
82 0173029 Anode
83 0339033 Washer, nut, cylinder
84 0334343 Baffle, exhaust relief
85 0334281 Gasket
86 0323626 Screw
87 0334879 Plate, baffle
88 0306423 Bolt
89 0306470 Lock washer
90 0333868 Screw
91 0313581 Bumber, mount screw
92 0321232 Retainer washer
93 0313580 Washer
94 0334341 Roller
95 0337907 Plug, shift rod hole
95 0321452 Grommet
96 0334883 Grommet
97 0321243 Bushing, cable
98 0334438 Knob
99 0328701 Lockwasher, double ended bolt
101 0318238 Screw
102 0582494 Ground strap
103 0332453 Thrust washer
104 0337586 Écrou racleur
105 0301250 Rondelle
106 0133022 Screw
107 0212022 Decal, evinrude
107 0336386 Decal exh. hsg. jo.
107 0338445 Decal, exh. hsg., ev., 90 100 115, except jet
108 0336460 Sleeve, braided
