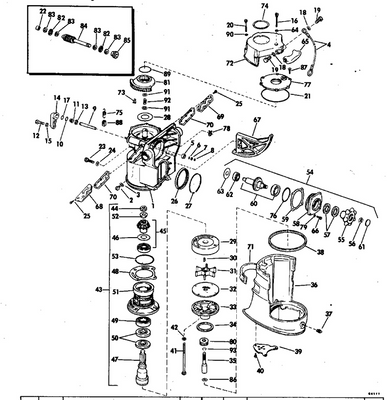

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 38
Replacement: This part (435274) replaces 0432287.
Product Description: Bearing Housing Assy.
Category: EVINRUDE / 1990 / 40 / TE40TELESF 1990 / GEARCASE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0432280 | Gearcase bearing assy. | |
2 | 0382343 | Bearing, pinion | |
3 | 0324852 | Retaining screw seal | |
3A | 0332584 | Washer, seal ring | |
4 | 0432264 | Bearing assy, fwd gear | |
5 | 0382407 | Bearing assy, forward gear | |
6 | 0309243 | Plug, fill drain, upper | |
7 | 0333572 | O ring | |
8 | 0333780 | Bushing, shift rod | |
10 | 0318544 | Screw, fill drain | |
11 | 0333572 | O ring | |
12 | 0332507 | Cradle, shift | |
13 | 0332514 | Thrust washer | |
14 | 0397537 | Bearing, rev gear thrust | |
15 | 0397627 | Gear set, forward | |
16 | 0332503 | Shaft, shift | |
17 | 0332491 | Clutch dog | |
18 | 0320310 | Pin, clutch dog | |
19 | 0320311 | Spring, clutch dog pin | |
20 | 0439138 | Propeller shaft assy | This part replaces 0397541. |
21 | 0332489 | Gear, reverse | |
22 | 0332495 | Retainer plate, bearing housing | |
23 | 0332484 | Spring, shift shaft detent | |
24 | 0553126 | O ring, bearing housing | |
25 | 0332493 | Bearing housing | |
26 | 0386764 | Bearing assy, front | |
27 | 0386765 | Bearing assy, rear | |
28 | 0321467 | . oil retainer | |
29 | 0328744 | Screw, clamp 1 4 20 x .75 | |
31 | 0313339 | Nut, pinion to driveshaft | |
33 | 0433066 | Driveshaft 15" | |
33 | 0433067 | D shaft ay 20" | |
34 | 0398901 | Bearing, driveshaft thrust | |
35 | 0333771 | Thrust washer | |
36 | 0313273 | Shim, 0.003 in. 0,07mm | |
36 | 0313274 | Shim, 0.004 in. 0,10mm | |
36 | 0313275 | Shim, 0.005 in. 0,12mm | |
36 | 0313276 | Shim, 0.006 in. 0,14mm | |
36 | 0313277 | Shim, 0.007 in. 0,16mm | |
37 | 0310327 | "o" ring, gearcase head | |
38 | 0435274 | Bearing housing assy. | This part replaces 0432287. |
39 | 0332205 | Seal, adapter | |
40 | 0321466 | . oil retainer, driveshaft | |
41 | 0302504 | Pin, connector, shift rod | |
42 | 0332508 | Connector, shift rod | |
44 | 0316506 | Ball, detent | |
47 | 0397538 | Bearing, fwd gear thrust | |
48 | 0434588 | Cover, shift rod | This part replaces 0333781. |
49 | 0318372 | "o" ring, shift rod | |
50 | 0306376 | Cotter pin | |
51 | 3852928 | O ring, shift actuator housing | This part replaces 0913921. |
52 | 0332509 | Shift rod | |
52 | 0332510 | Shift rod | |
53 | 0333725 | Thrust washer, forward gear | |
54 | 0317178 | O ring | |
55 | 0333770 | Screw, shift lever | |
56 | 0909386 | Screw, housing to gearcase | |
57 | 0332494 | Screen | |
58 | 3852473 | Screw, cap to gimbal | This part replaces 0909636. |
59 | 0333783 | Housing, impeller | |
60 | 0333758 | Grommet, water tube | |
61 | 0331979 | Screw | |
62 | 0325539 | Screw, sceen to gearcase | |
63 | 0398873 | Anode ay | |
64 | 0341732 | Grommet, housing | This part replaces 0315748. |
66 | 0305282 | Bolt, bowl suction piece | |
67 | 0330266 | Washer, trail lock lever | |
68 | 0313697 | Scr,grc to hsg.long | |
69 | 0330265 | Washer | |
71 | 0330266 | Washer, trail lock lever | |
72 | 0320305 | Thrust bushing | |
73 | 0315810 | Spacer, impeller nut | |
74 | 0314503 | Nut, impeller | |
75 | 0314502 | Cotter pin | |
76 | 0340539 | Trim tab, gearcase | This part replaces 0332475. |
77 | 0330930 | Screw, plate 3 8 16 x 1 | This part replaces 0335021. |
79 | 0341038 | Plate, impeller housing | This part replaces 0319275. |
79 | 0341187 | Plate | This part replaces 0319588. |
80 | 0334897 | Cam, impeller to driveshaft | |
81 | 0432941 | Impeller | |
82 | 0324981 | Seal, impeller housing | |
86 | 0321940 | Plate | |
86 | 0315145 | Plate, chrome | |
87 | 0324980 | Linder, impeller housing | |
87 | 0324587 | Liner, impeller housing | |
88 | 0176423 | Propeller, 11 1 4 x 19 aluminum | This part replaces 0386908. |
88 | 0391014 | Propeller 11 1 4 x 21 | |
88 | 0386841 | Propeller | |
88 | 0386786 | Propeller, 11 3 4 x 15 | |
88 | 0386909 | Propeller, 12 1 2 x 13 | |
88 | 0386907 | Propeller 13 x 11 | |
88 | 0390852 | Propeller, 11 1 4 x 19 sst | |
88 | 0391015 | Propeller 11 1 4 x 21 sst | |
88 | 0390851 | Propeller, 11 3 4 x 17 sst | |
88 | 0390850 | Propeller, 12 1 4 x 15 sst | |
88 | 0390849 | Propeller, 11 1 2 x 13 sst | |
89 | 0386787 | Propeller bushing assy | |
90 | 0313926 | Propeller hub sleeve | |
91 | 0389145 | Chrome cup plate kit | |
92 | 0438592 | Water pump repair kit | This part replaces 0433548. |
92 | 0438592 | Water pump repair kit | This part replaces 0433549. |
93 | 0433550 | Gearcase seal kit |
