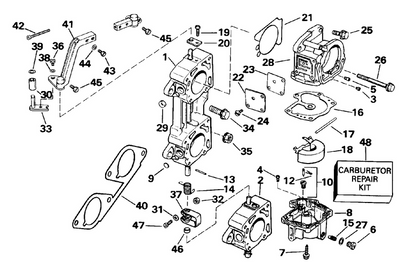

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 28
Product Description: Carb. Body
Category: JOHNSON / 1993 / 225 / J225TZATS 1993 / CARBURETOR & LINKAGE - 225 SUFFIX "A, C, D, S" MODELS
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
| Key | Part No. | Product Name | Additional_info |
|---|---|---|---|
| 1 | 0436139 | Throttle body assy. | |
| 2 | 0436140 | Throttle body, lower | |
| 3 | 0318832 | O ring, no. 35 | |
| 4 | 0326164 | Screw, hinge pin | |
| 5 | 0328526 | High speed orifice, no. 66 | |
| 6 | 0327116 | Screw, plug | |
| 7 | 0328649 | Screw, bowl to body | |
| 8 | 0398701 | Float chamber assy. | |
| 9 | 0303405 | . .plug, core | |
| 10 | 0396522 | Ensemble soupape à flotteur | |
| 12 | 0336842 | Clip, spring | |
| 13 | 0303261 | Roll pin, return spring | |
| 14 | 0332254 | Spring, throttle return | |
| 14 | 0335075 | Spring, throttle return | |
| 15 | 0328545 | Orifice plug, 64d | |
| 16 | 0338813 | Gasket, float bowl | |
| 17 | 0326865 | Pin, float | |
| 18 | 0391508 | Float assy | |
| 19 | 0328714 | Screw, clip | |
| 20 | 0328765 | Attache | |
| 21 | 0332253 | Real,carb. body, 300 | |
| 22 | 0335647 | Cover plate | |
| 23 | 0335648 | Gasket, cover plate | |
| 24 | 0315656 | Screw | |
| 25 | 0335687 | Screw, clamp 1 4 20 x .75 | |
| 26 | 0335223 | Screw, carburetor body, long | |
| 27 | 0305739 | "o"ring,valve seat | |
| 28 | 0436196 | Carb. body | |
| 29 | 0202310 | Core plug | |
| 30 | 0432639 | Galet, contre came | |
| 31 | 0332609 | Washer | |
| 32 | 0309485 | Ecrou, vis, rotule | |
| 33 | 0432640 | Lever pin, cam follower | |
| 34 | 0317624 | Screw, driveshaft hsg | |
| 35 | 0316355 | But, carburetor mounting | This part replaces 0315204. |
| 36 | 0335739 | Screw, conn. brkt. to mntg. brkt. | |
| 37 | 5000533 | Connector assy., throttle shaft | This part replaces 0327071. |
| 38 | 0328735 | Washer, screw, ball joint | |
| 39 | 0324678 | O ring, valve core, lower | |
| 40 | 0332319 | Gasket, carburetor mounting | |
| 41 | 0435908 | Link, carburetor | |
| 42 | 0335229 | Screw, bracket to crkc. cover | This part replaces 0337540. |
| 43 | 0328649 | Screw, bowl to body | This part replaces 0337541. |
| 44 | 0335753 | Washer, bracket to shift lever | |
| 45 | 0339286 | Screw, belcrank | |
| 46 | 0317162 | Bushing, link | |
| 47 | 5000533 | Connector assy., throttle shaft | This part replaces 0337041. |
| 48 | 0439079 | Carb. repair kit | This part replaces 0435678. |
